Engine Mount: Service and Repair

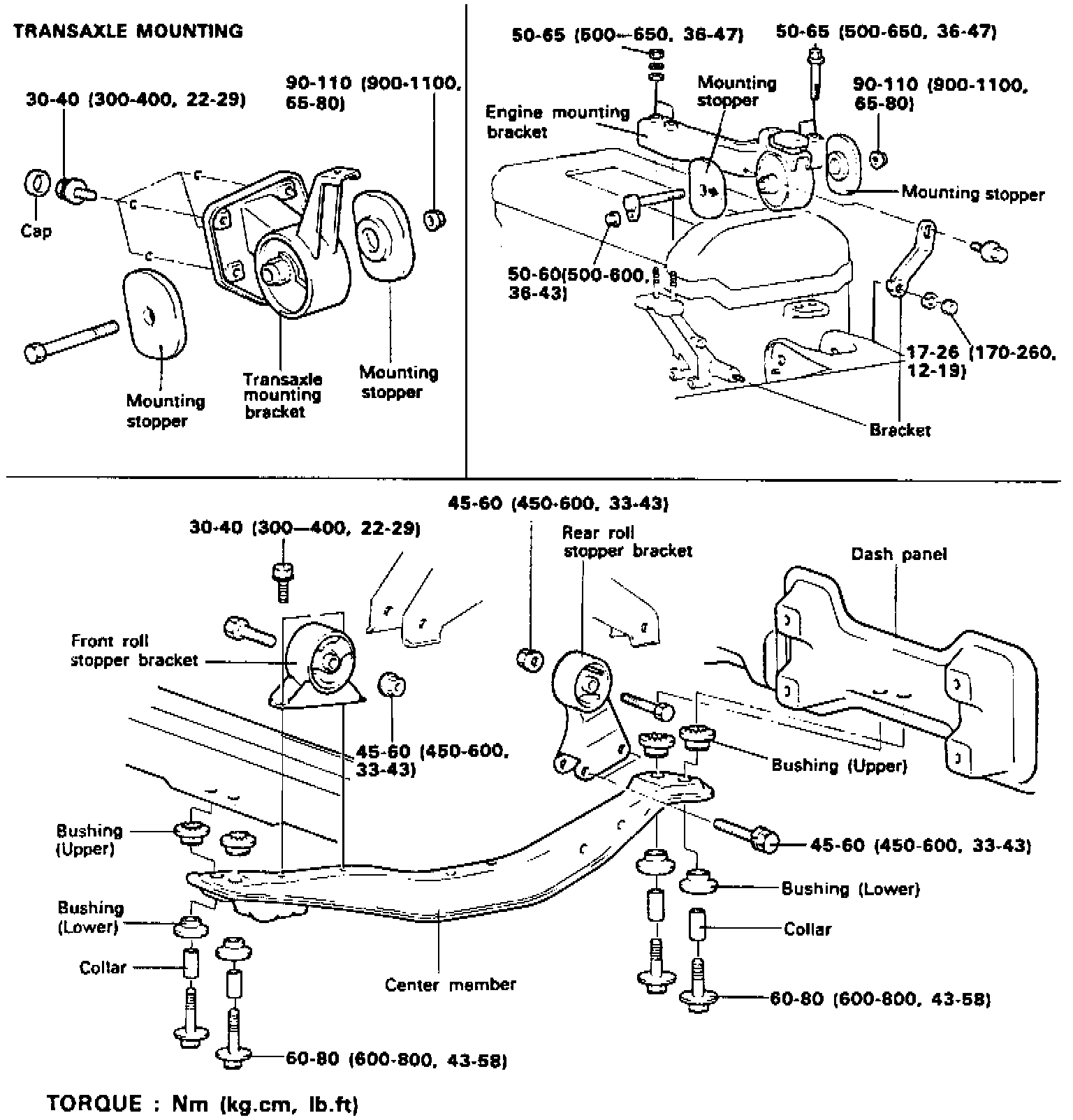

Fig. 1 Engine Mounting:





Refer to Fig. 1 for engine mount replacement.
