Hyundai
>>
1993
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Locations
>>
California
California

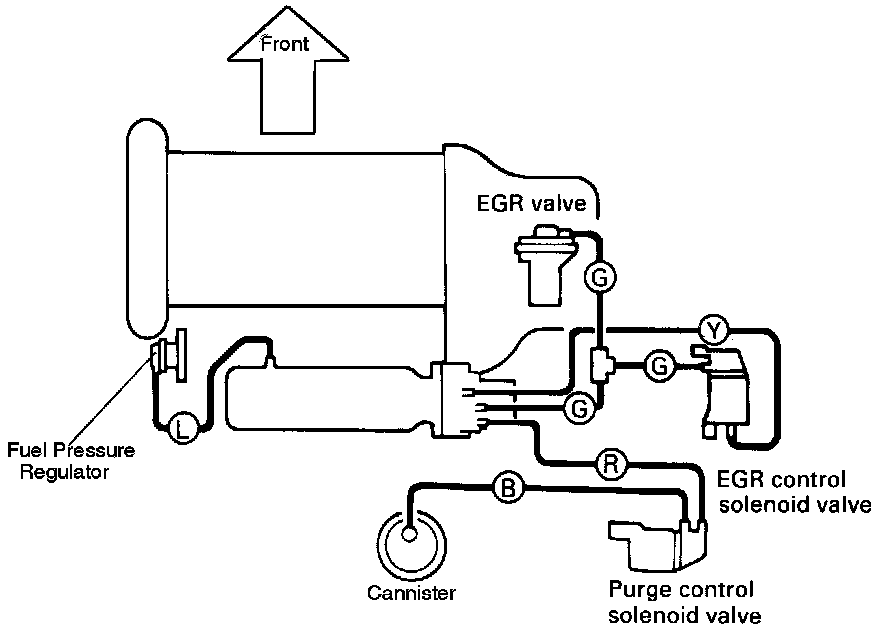

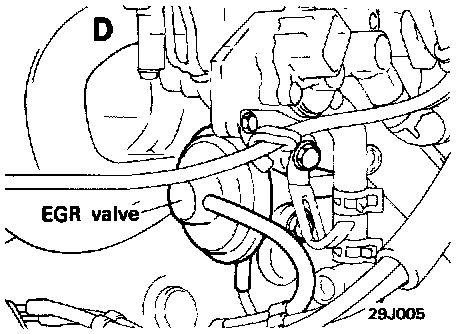

EGR Valve Location:
G: Green
Y: Yellow
L: Blue
R: Red
