Home >> Hyundai >> 1993 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Turn Signals

Turn Signals

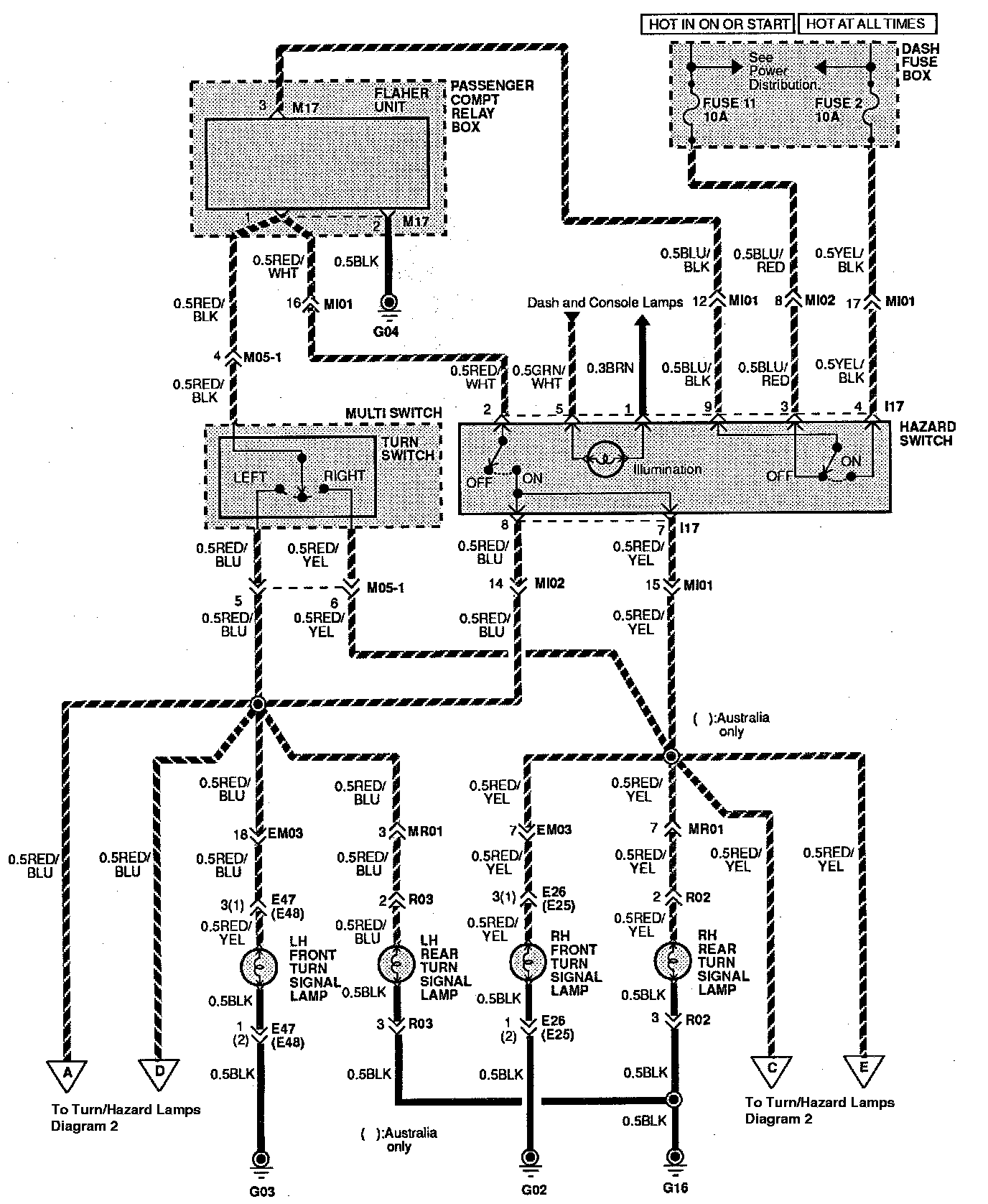

Turn/Hazard Lamps Diagram 1:

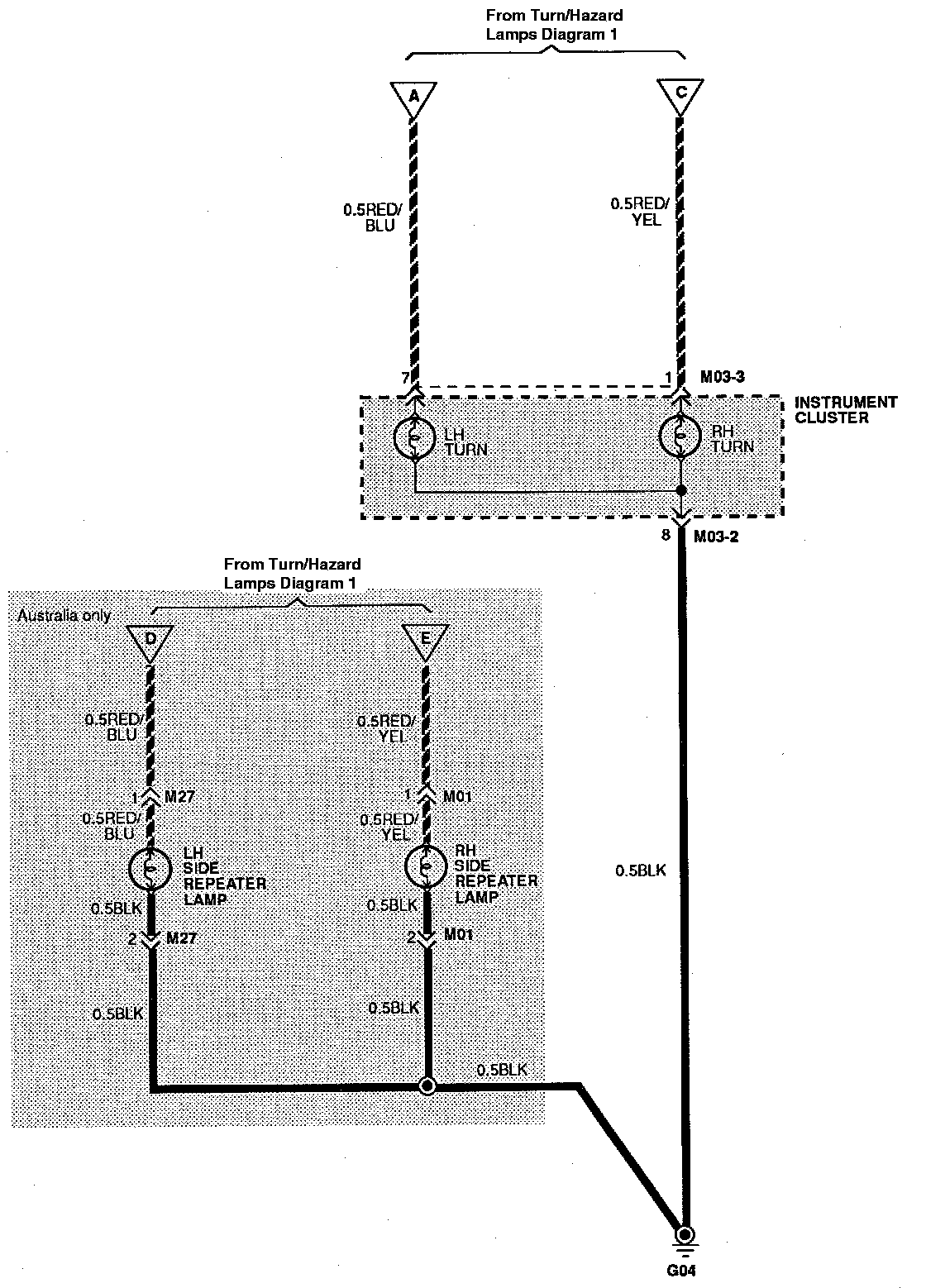

Turn/Hazard Lamps Diagram 2:
