Front Turn Signal Lamp - Installation
Group: BODY ELECTRICALNumber: 93-90-013 (REVISED)
Date: OCTOBER, 1993
Model: SCOUPE
Subject:
FRONT TURN SIGNAL LAMP INSTALLATION PROCEDURE
DESCRIPTION

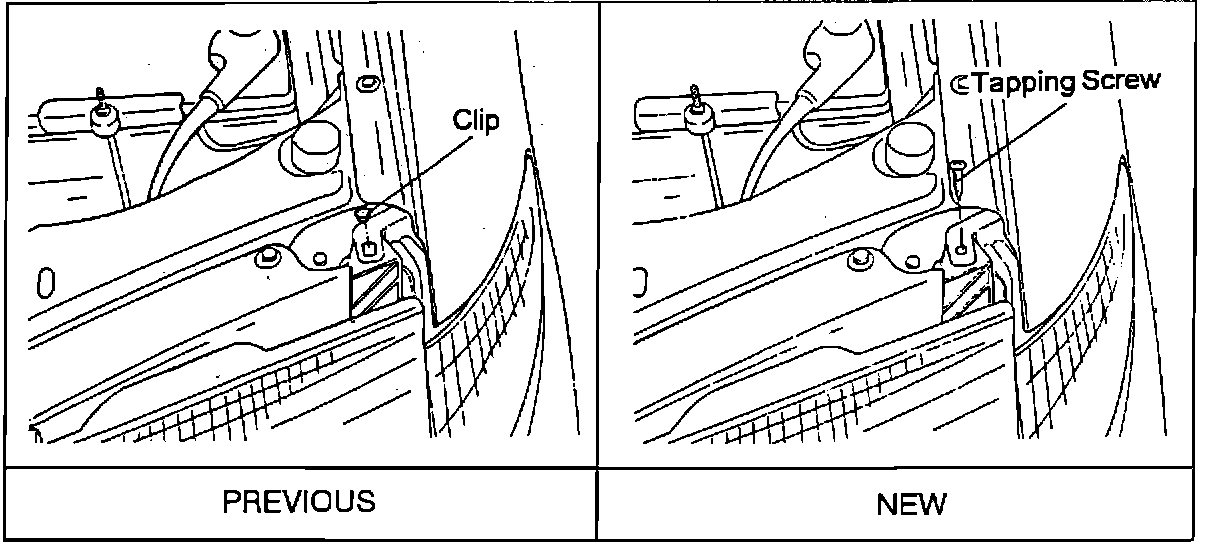

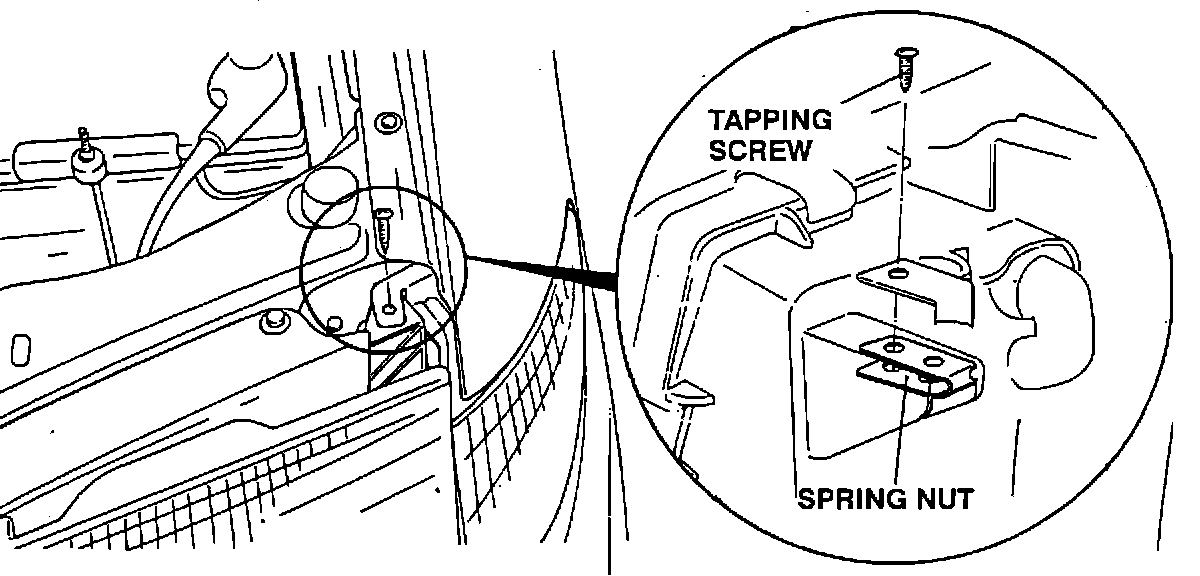

The front turn signal installation has been changed to replace a clip with a tapping screw. As a result, the mounting hole of the front turn signal lamp and the mounting seat of head lamp have changed and a spring nut has been added as shown below.
INTERCHANGEABILITY
a. When installing the new head lamp to a previous vehicle, Code Y Previous New.
NOTE:
Install after removing spring nut.
b. When installing the new front turn signal lamp to a previous vehicle, Code N Previous New.
NOTE:
Rework is required to install the new front turn signal lamp.
SPECIFICATION CHANGED

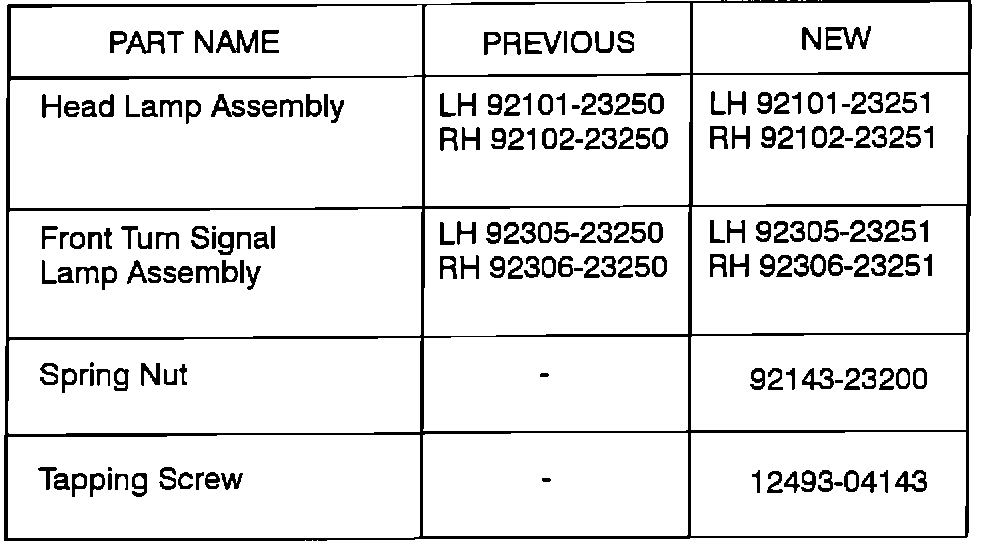

PART INFORMATION
EFFECTIVE PRODUCTION DATE
Date: March 15, 1993
VIN: KMHVE21N8PU150739

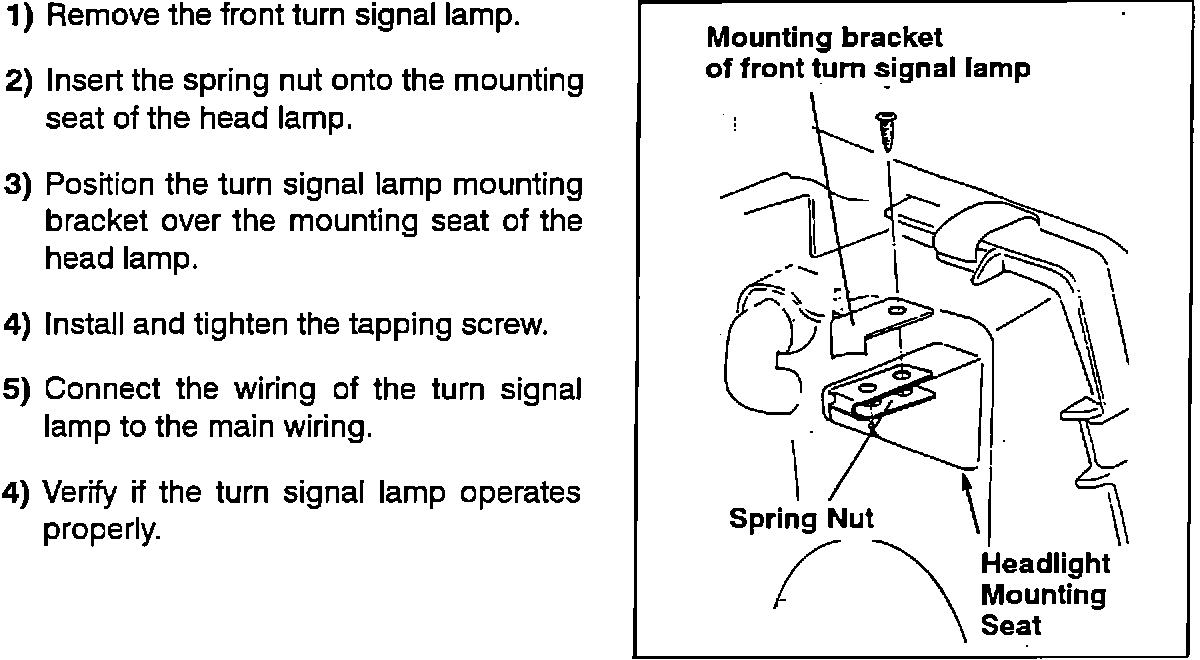

INSTALLATION PROCEDURE
The procedure is necessary when installing the new front turn signal to a previous vehicle.
