Intake Manifold/Cylinder Head - Attachment Update

Group: ENGINE MECHANICAL
Number: 93-20-016
Date: SEPTEMBER, 1993
Model: 1993 SCOUPE

Subject:
ALPHA ENGINE INTAKE MANIFOLD TO CYLINDER HEAD ATTACHMENT METHOD MODIFICATION.

DESCRIPTION

The intake manifold to the cylinder head attachment method has been modified on 1993 Scoupe models.

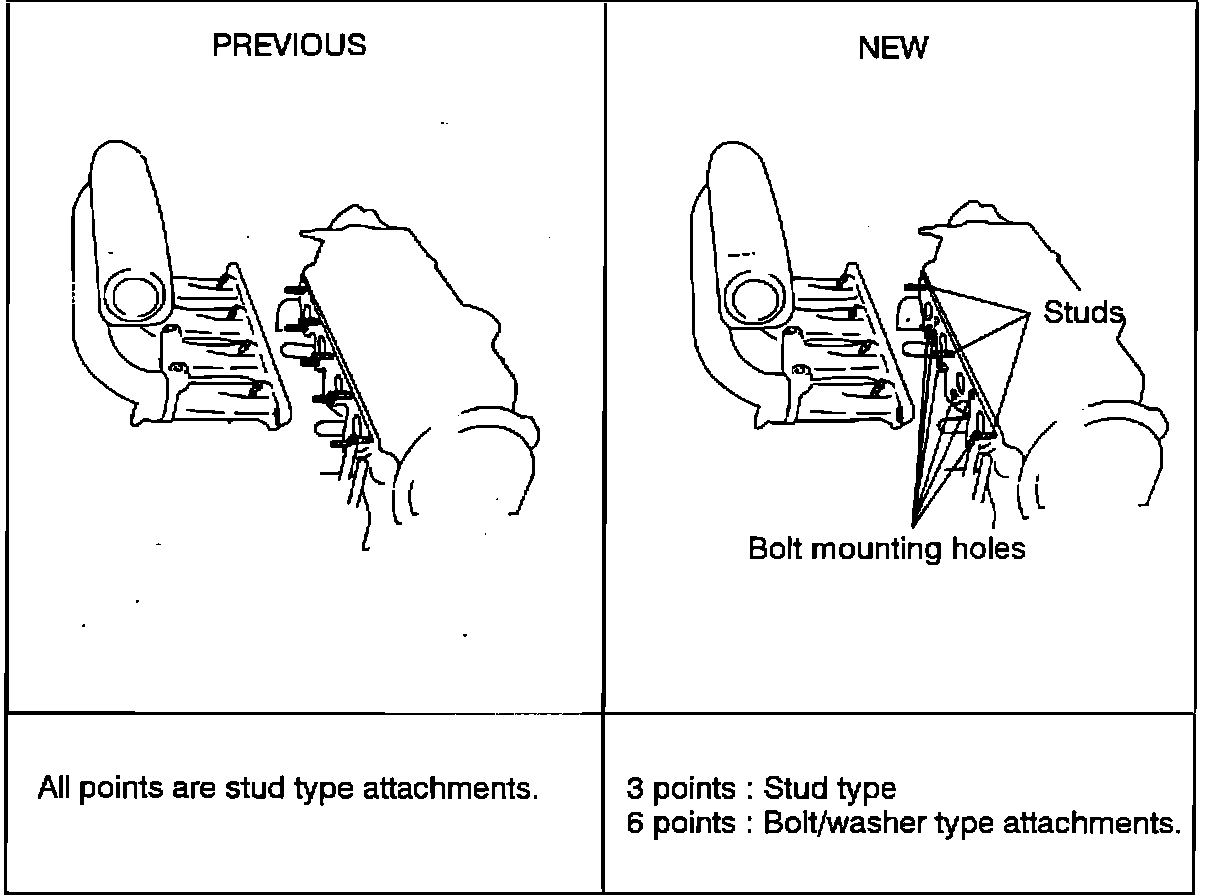

Six of the studs have been replaced with mounting bolts as shown.

When installing a new cylinder head, you must install bolt/washer assemblies at six points on the cylinder head assembly.

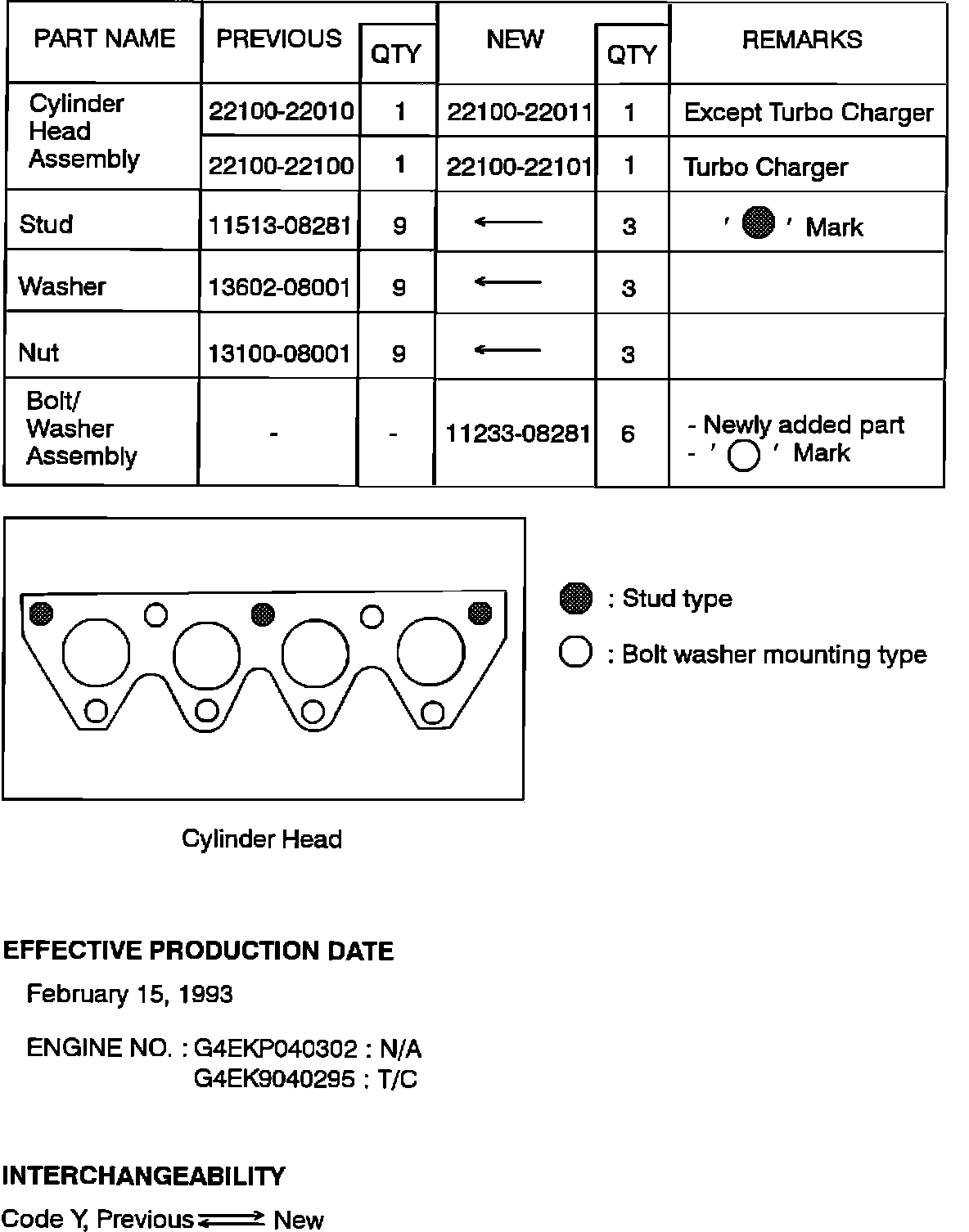

PARTS INFORMATION AND INTERCHANGEABILITY
