Scoupe L4-1468cc 1.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Shift Interlock Control Module
Shift Interlock Control Module

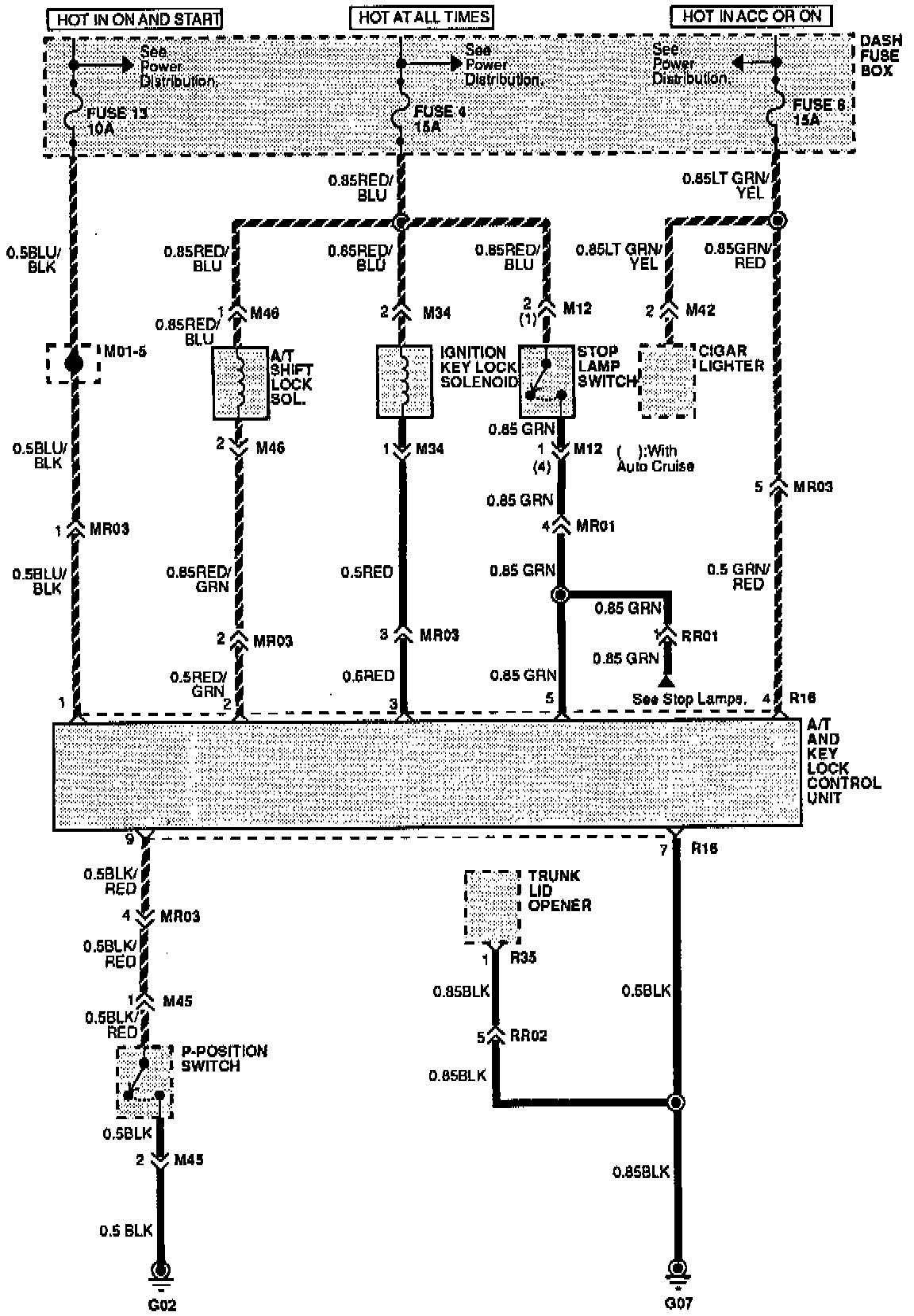

Automatic Transaxle And Key Lock Controls:
