Scoupe L4-1468cc 1.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
MR03 - R34
MR03 - R34

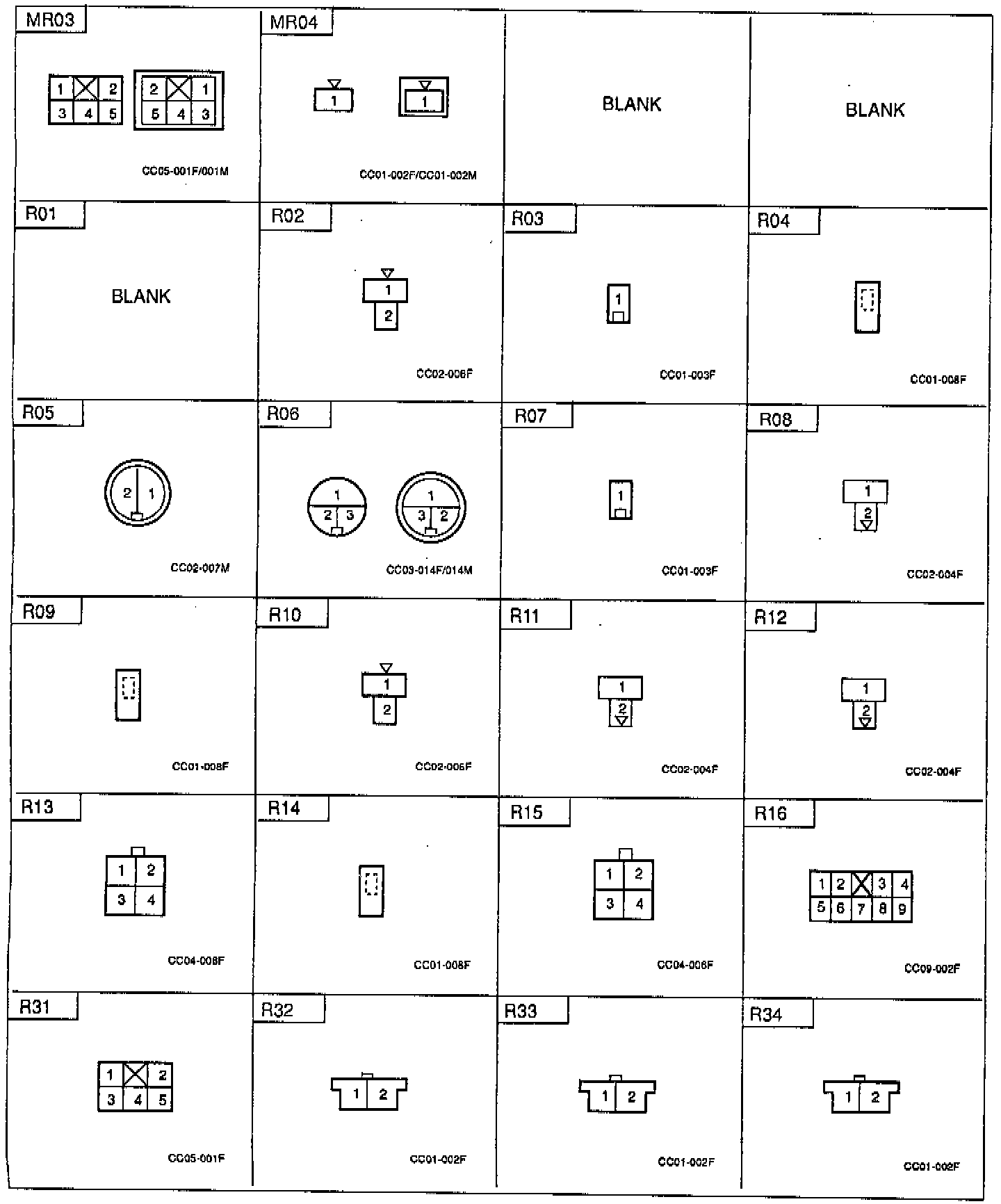

Connector Identification: MR03 Thru R34:
