Home
>>
Hyundai
>>
1993
>>
Scoupe L4-1468cc 1.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C40 - E09
C40 - E09

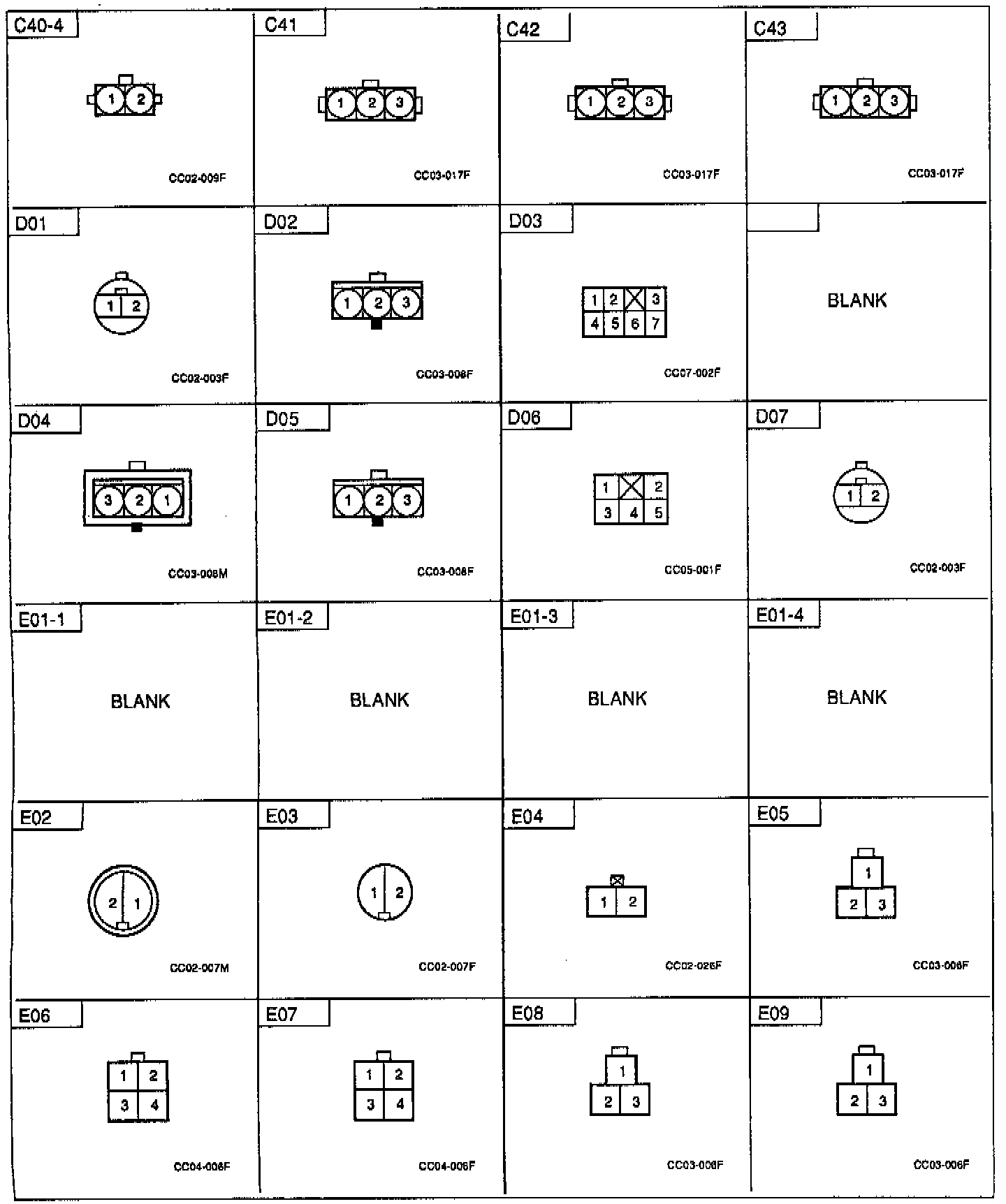

Connector Identification: C40-4 Thru E09:
