Brake Line - Routing Change
Group: CHASSISNumber: 93-50-005
Date: JULY, 1993
Model: 1993 SCOUPE
Subject:
BRAKE TUBE ROUTING CHANGE
DESCRIPTION

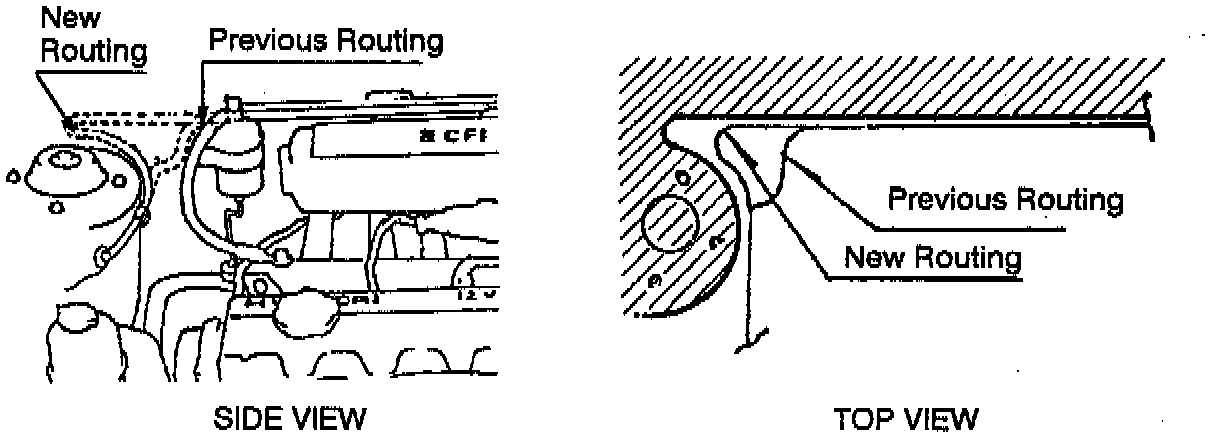

The routing of the brake tube from the proportioning control valve to the right front brake hose has been changed to provide more working clearance in the engine compartment.
PART INFORMATION
EFFECTIVE PRODUCTION DATE
July 07, 1992
INTERCHANGEABILITY: Code Y
