TACM - Revision/Service Procedure
Group: BODY ELECTRICALNumber: 93-90-012
Date: SEPTEMBER, 1993
Model: SCOUPE
Subject:
TACM COVER REVISIONS
DESCRIPTION
This Technical Service Bulletin provides information concerning the Scoupe TACM (Time & Alarm Control Module) cover.

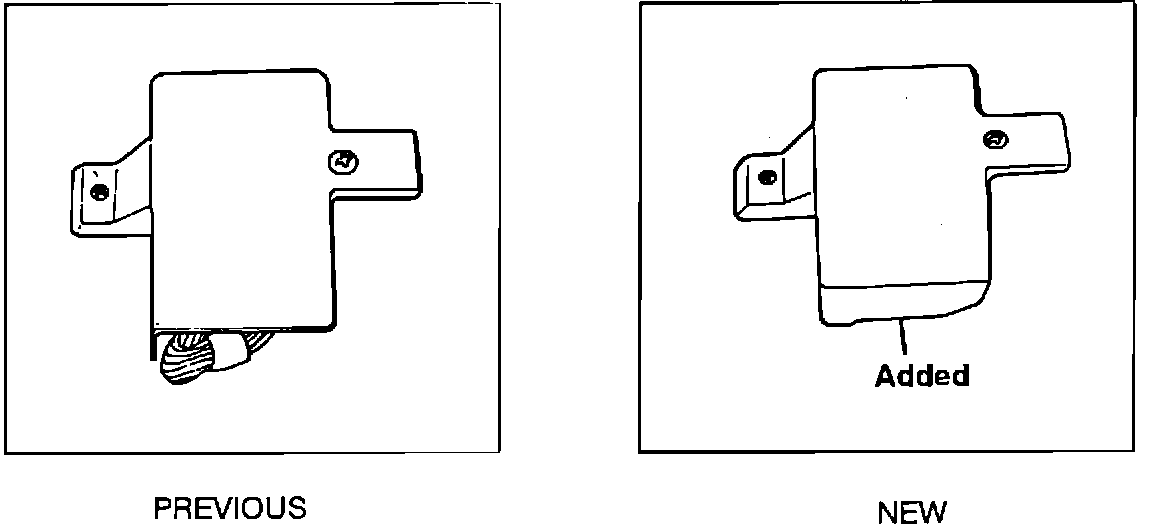

The TACM cover has been changed as shown.

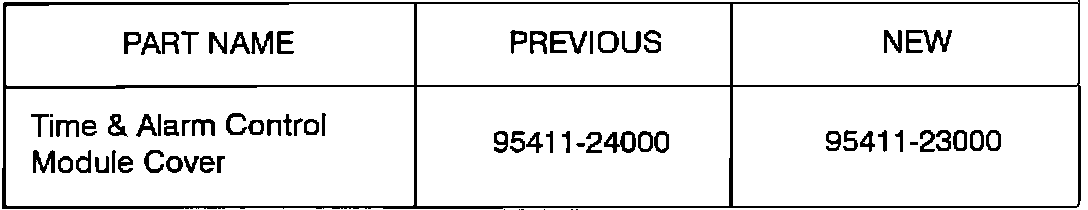

PART INFORMATION
SERVICE PROCEDURE

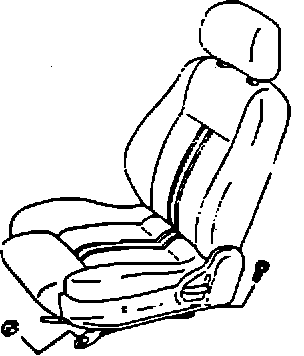

1) Remove the right front seat.
2) Remove the TACM cover.

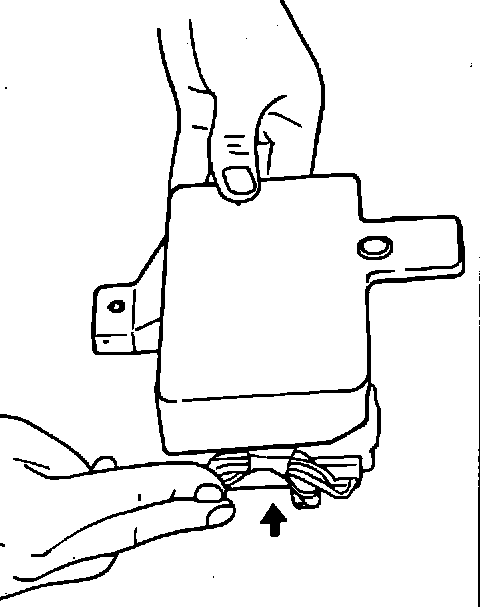

3) Install the new TACM cover and completely insert the wires under the cover.
4) Tighten the cover screws.
EFFECTIVE PRODUCTION DATE
Date: January 14, 1993
Serial No. : KMHVE22N3PU140716
INTERCHANGEABILITY-
