Home
>>
Hyundai
>>
1993
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
Federal
>>
Harness Layout
Harness Layout

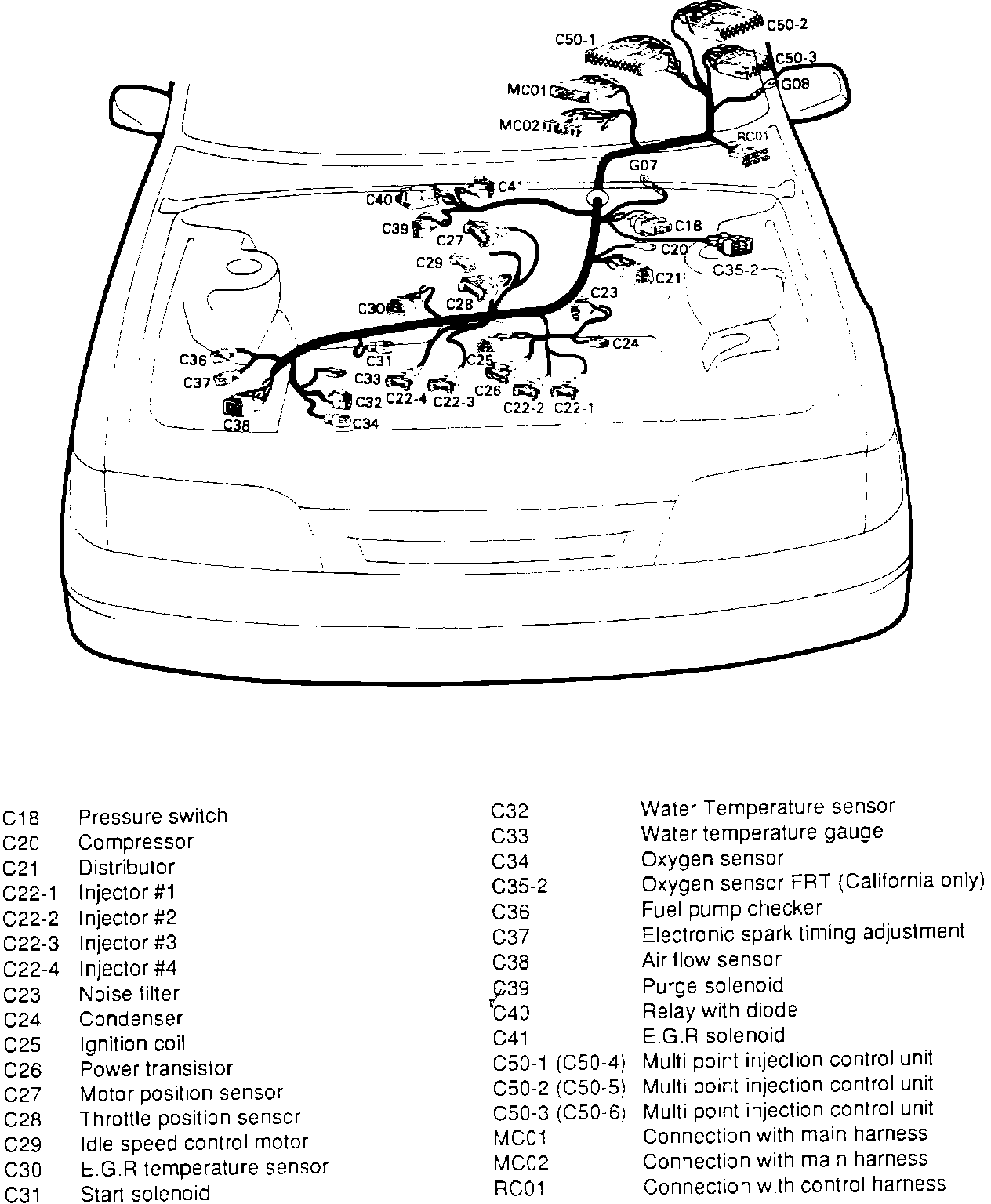

ECM Harness Connector Locations:
