Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Connectors R03 ~ R16
Connectors R03 ~ R16

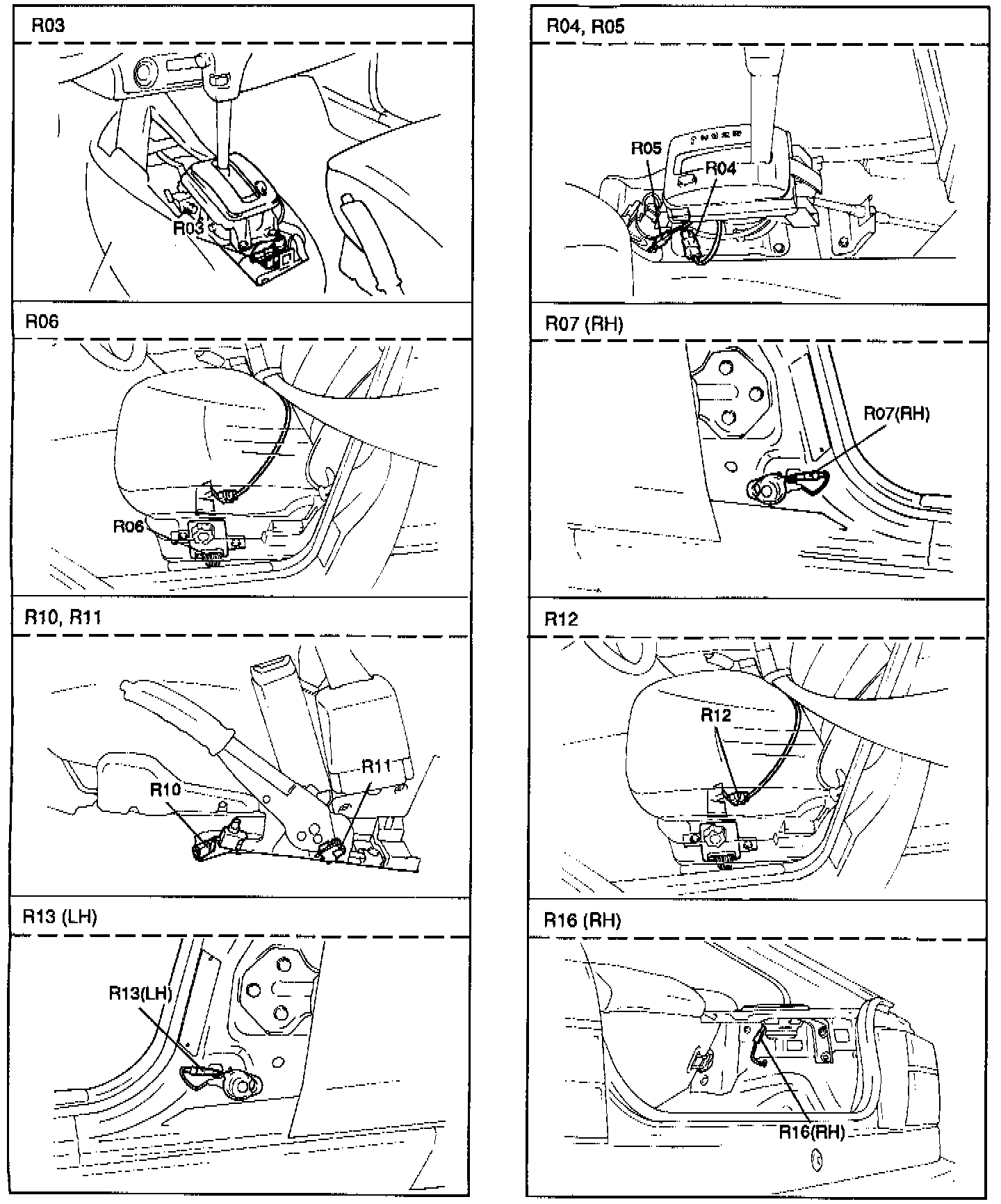

Component Locations: R03 Thru R16:
