Home
>>
Hyundai
>>
1993
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

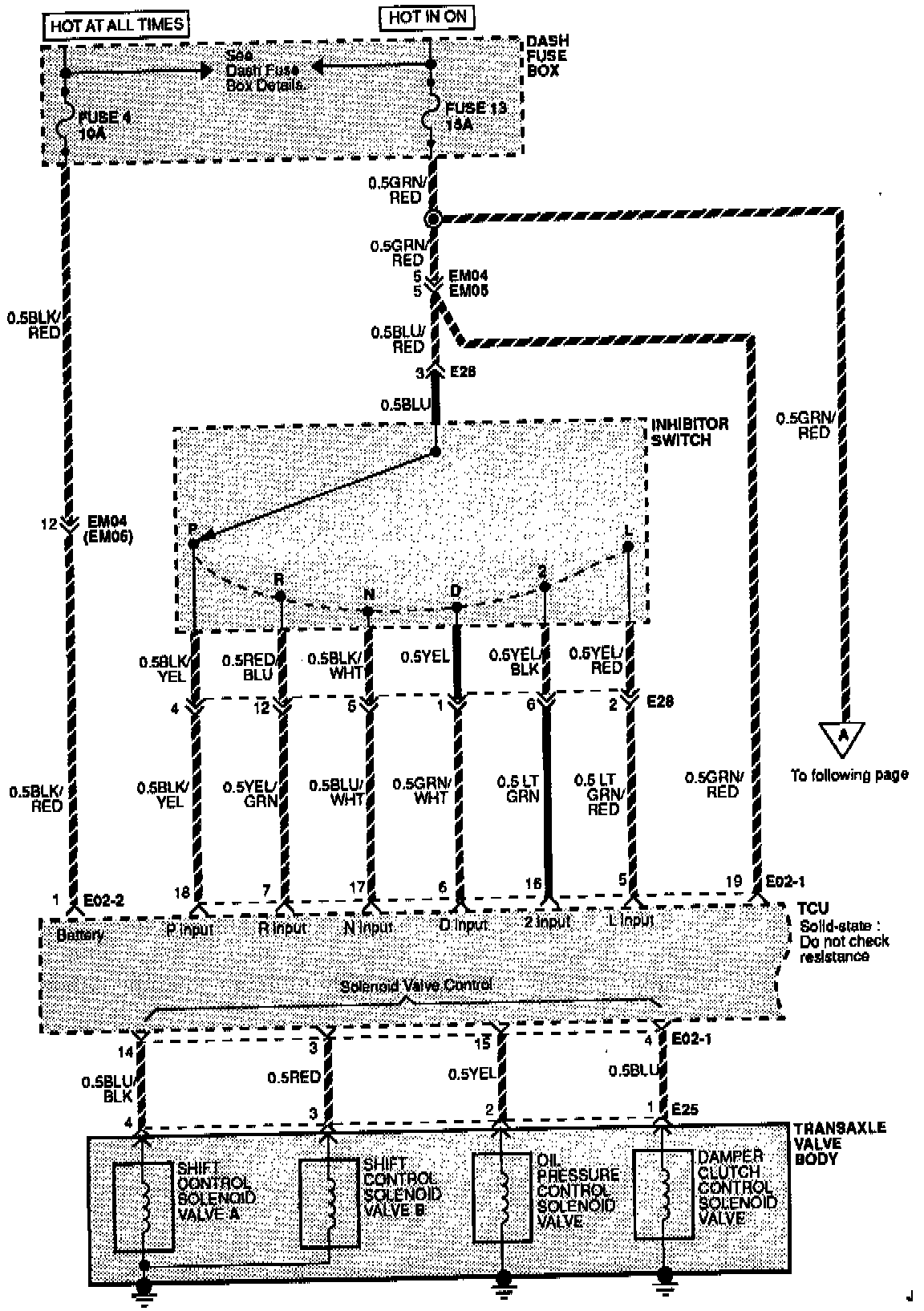

Transaxle Controls:

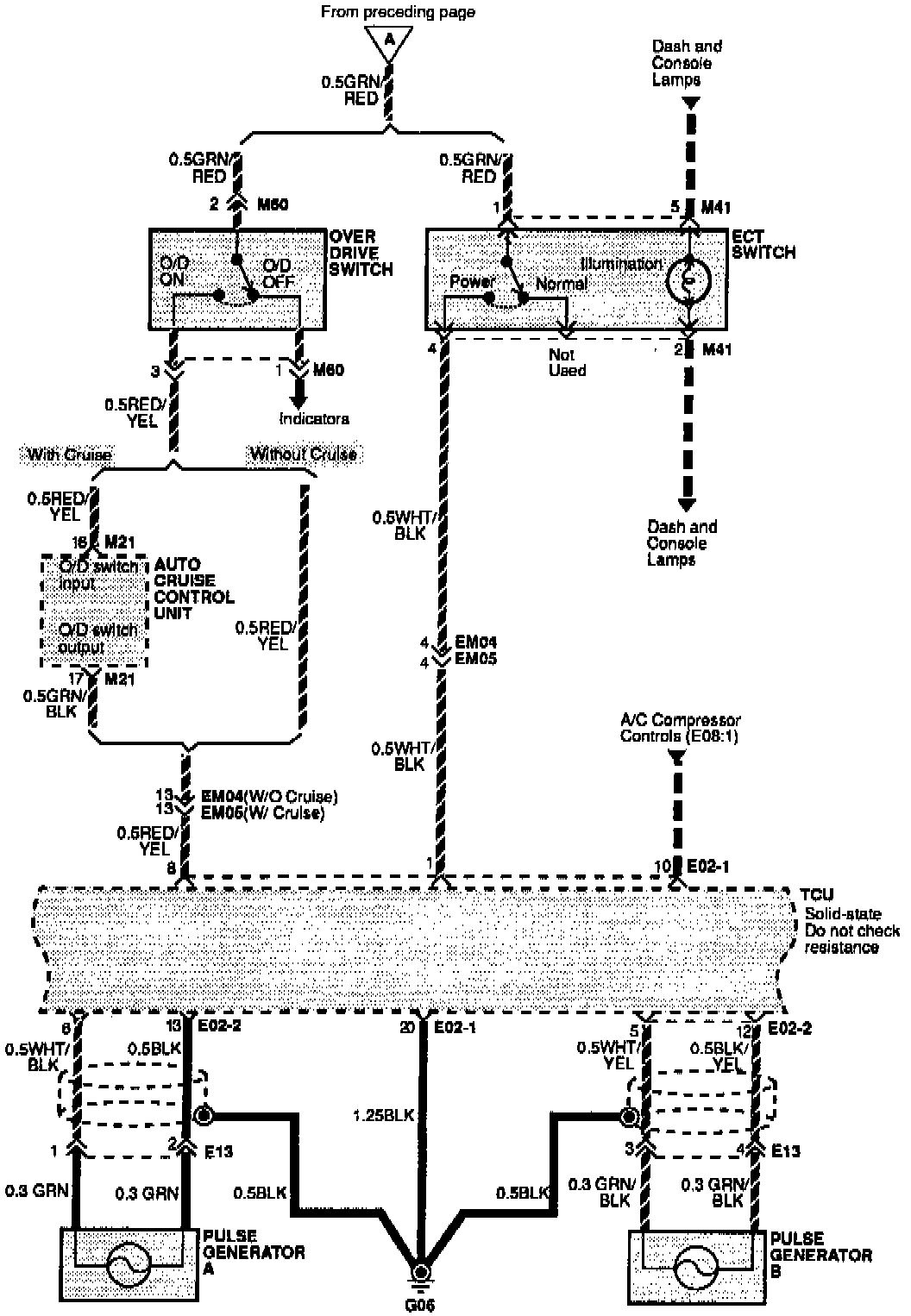

Transaxle Controls:
Transaxle Controls:
