Engine Controls

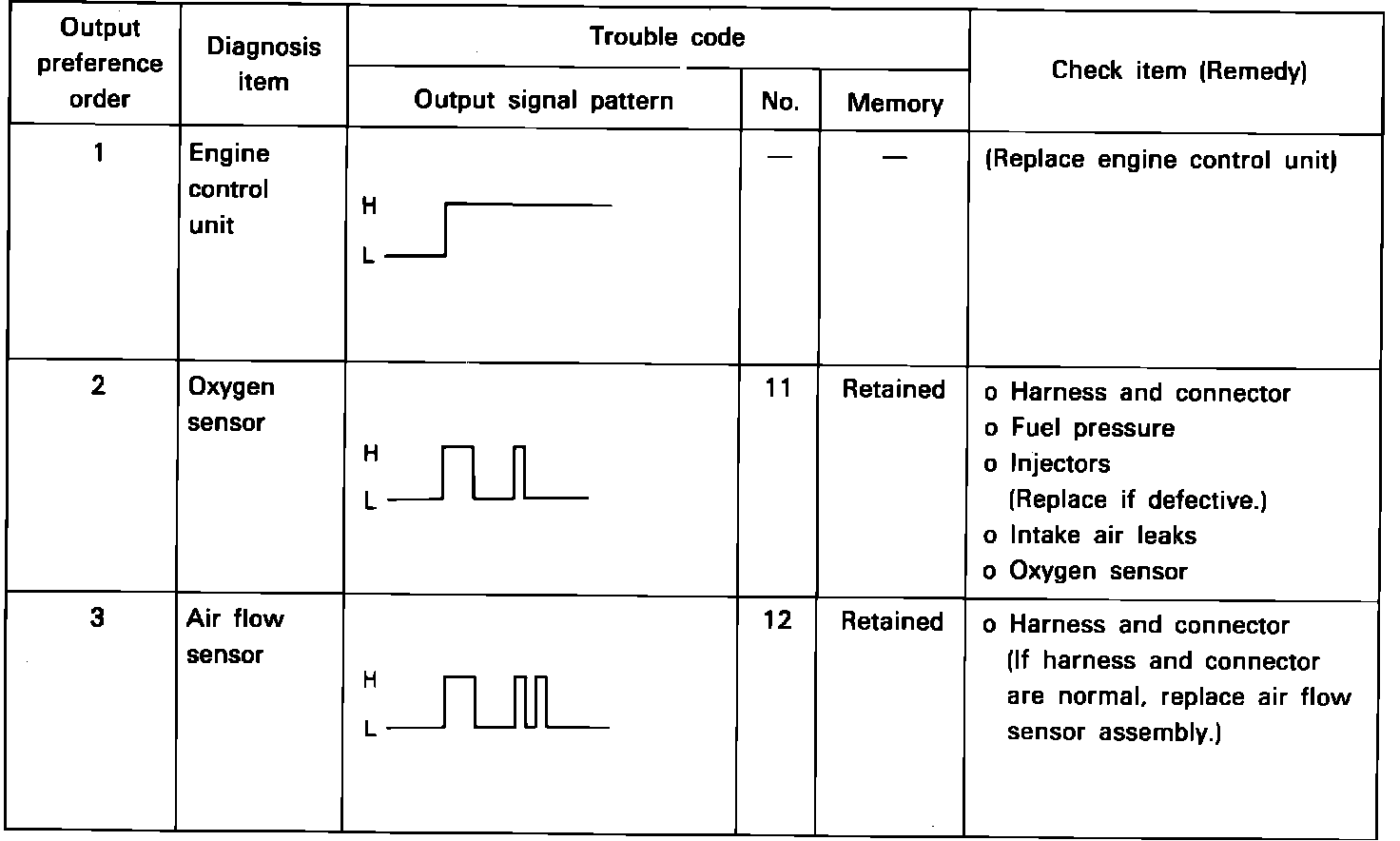

Diagnostic Codes 11-12:

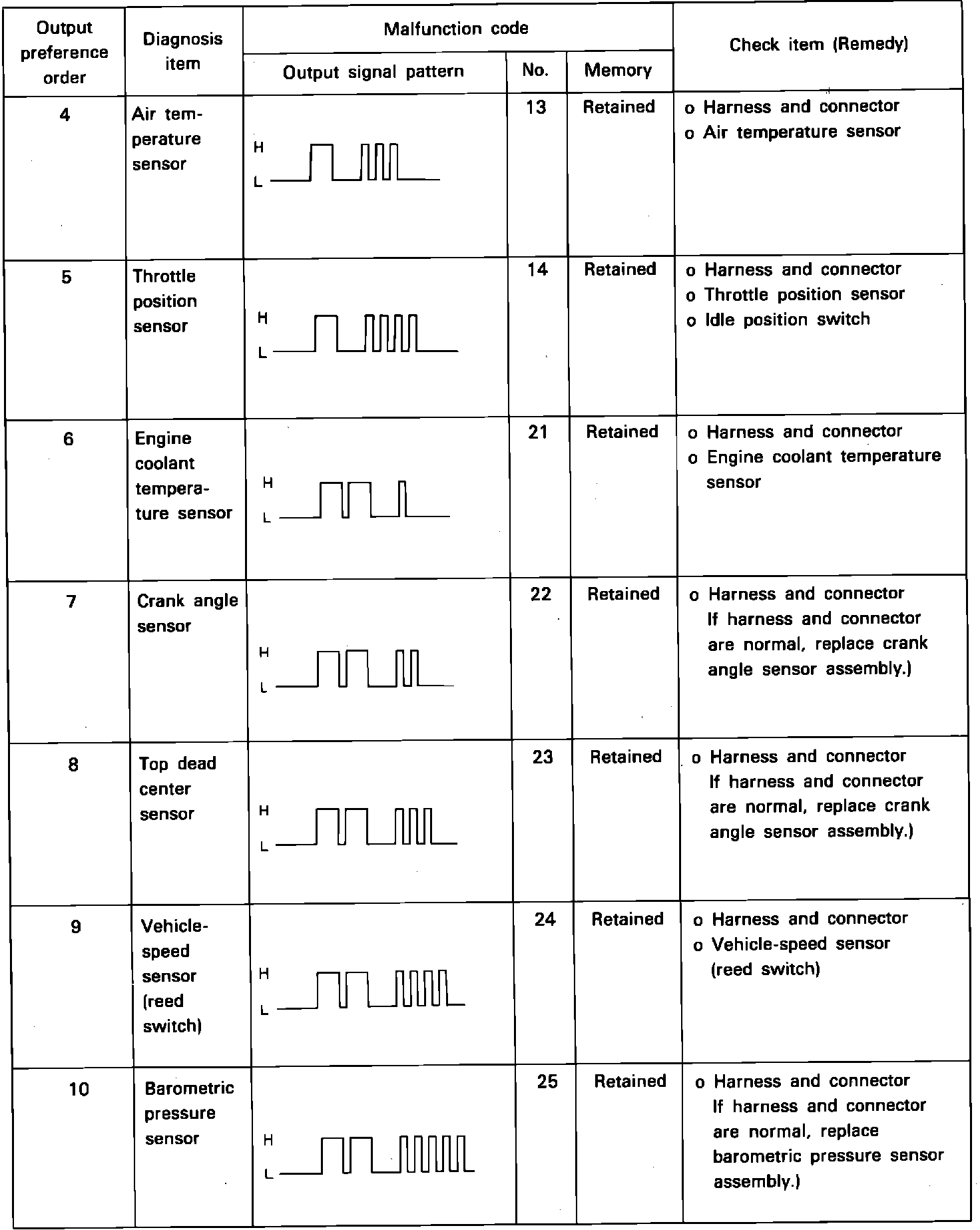

Diagnostic Codes 13-25:

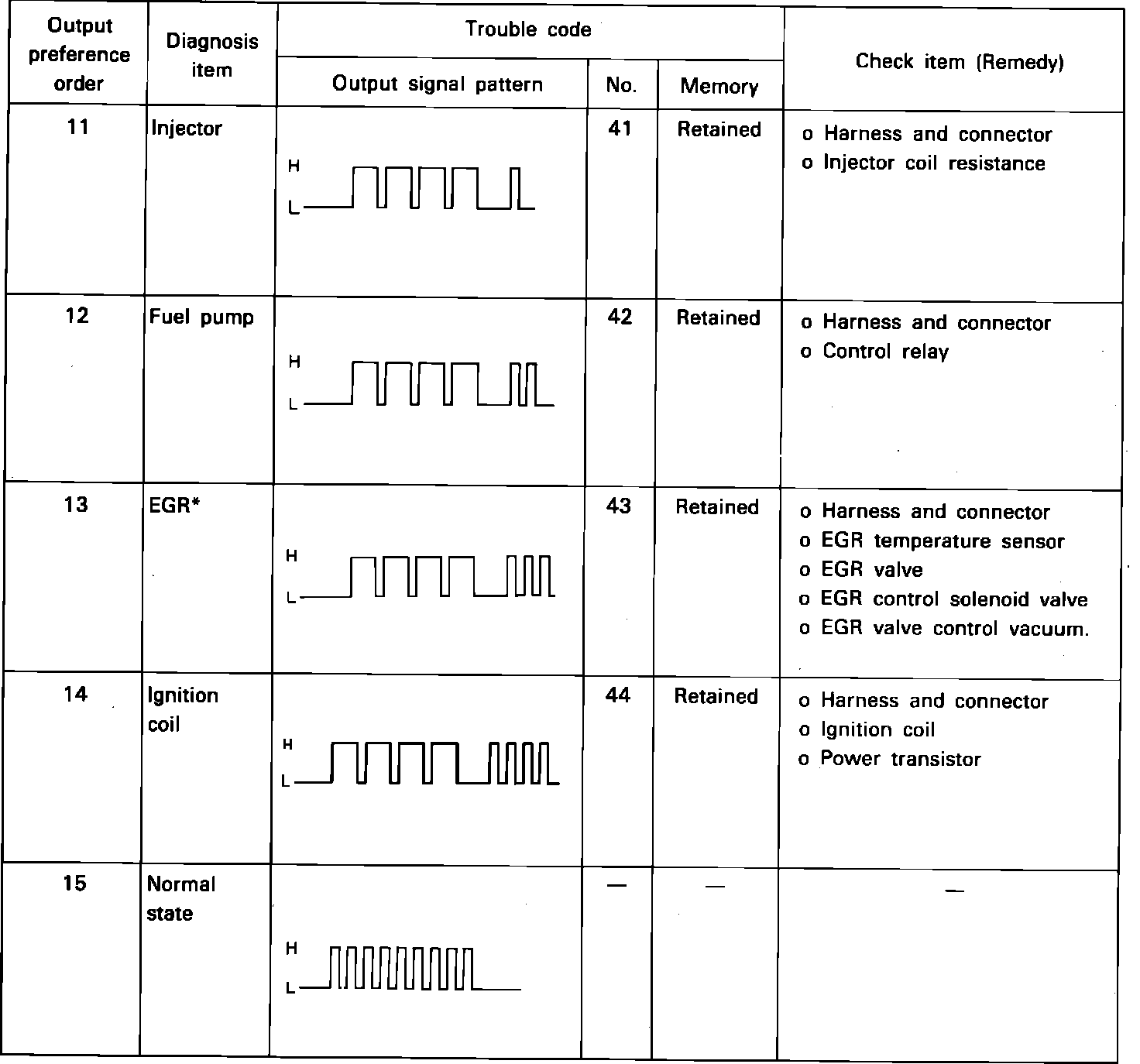

Diagnostic Trouble Codes 41 - 44:

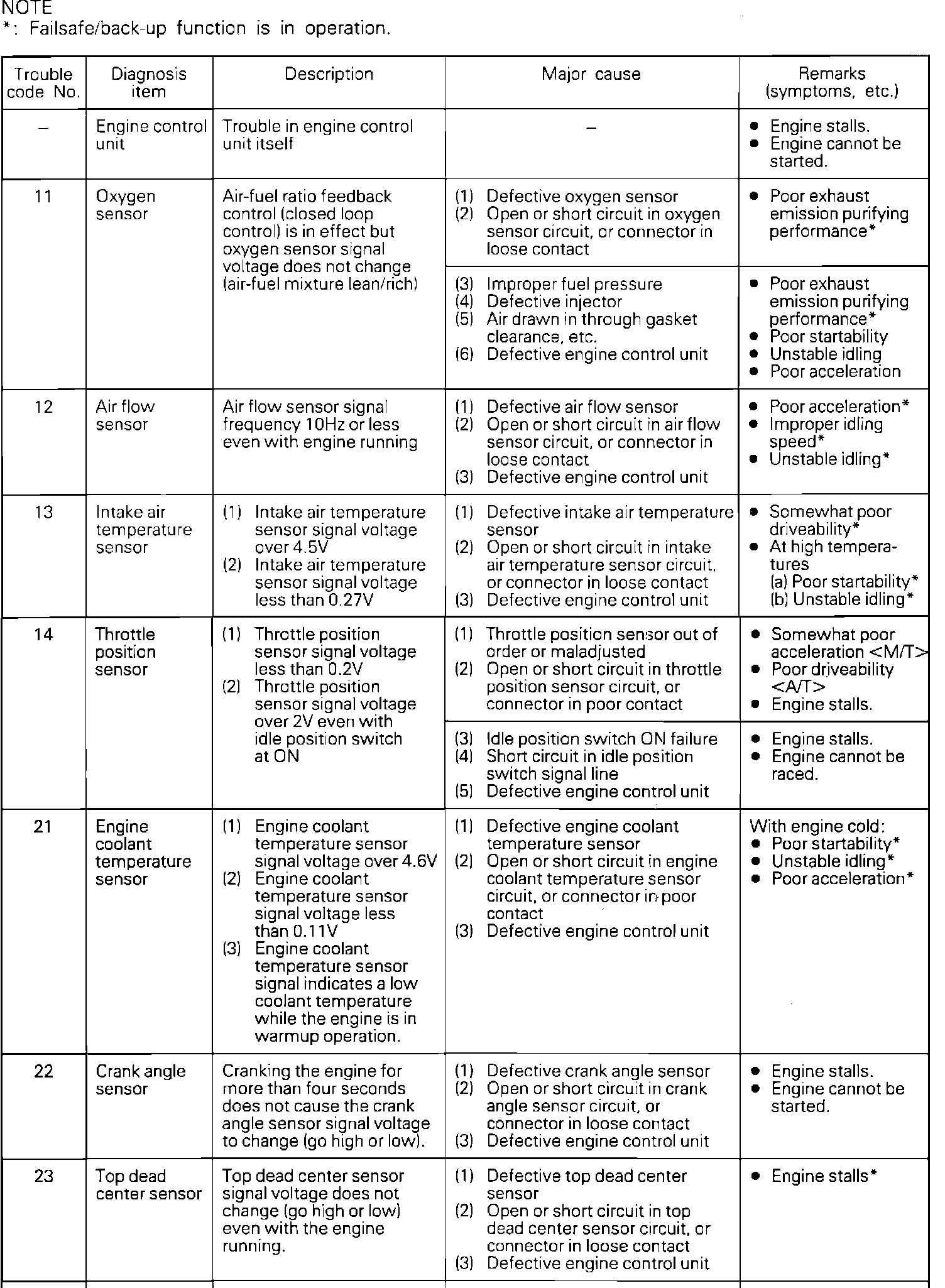

NOTE:
^ Replace the engine control unit if a diagnostic trouble code is read although the inspection reveals that there are no problems with the diagnosis item.
^ The diagnostic Item marked * Is applicable to the California vehicles only.
