Rear Brake Hose/Torsion Axle - Modification

Group:
CHASSIS


Number:
92-50-007


Date:
OCTOBER, 1992


Model:
SONATA V6



Subject:

REAR BRAKE HOSES AND TORSION AXLE CHANGE



1. DESCRIPTION

The rear disc brake hoses have been changed to a one piece hose in order to improve efficiency. In addition, the torsion axle and arm complete have been changed for ease of service.

These changes apply to all Sonatas with 3.0L engine which are equipped with an antilock brake system.

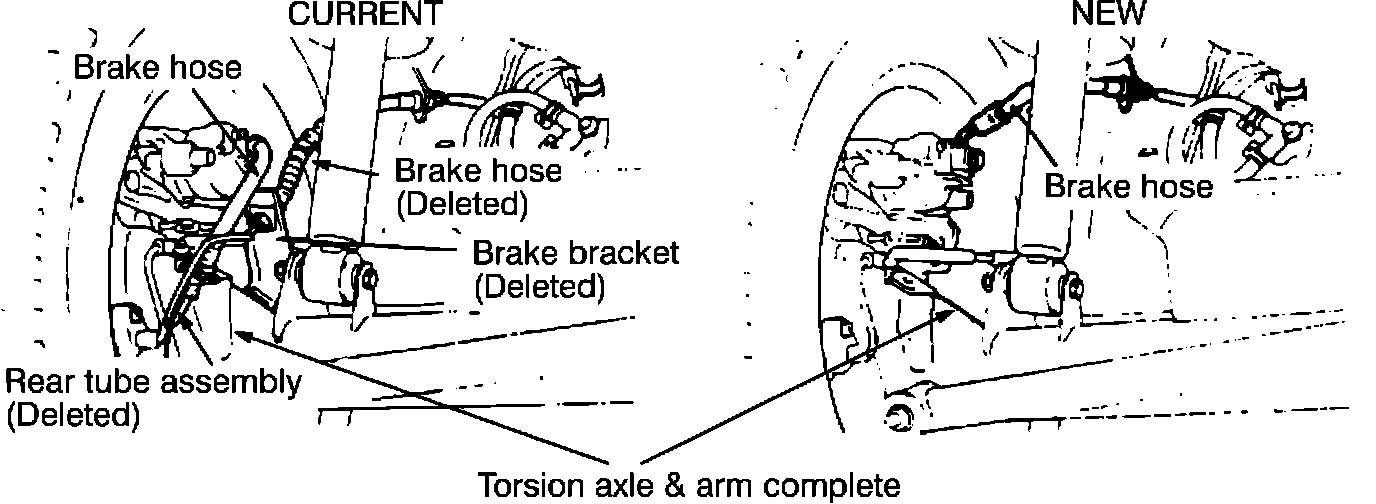

These changes are shown in the illustrations.

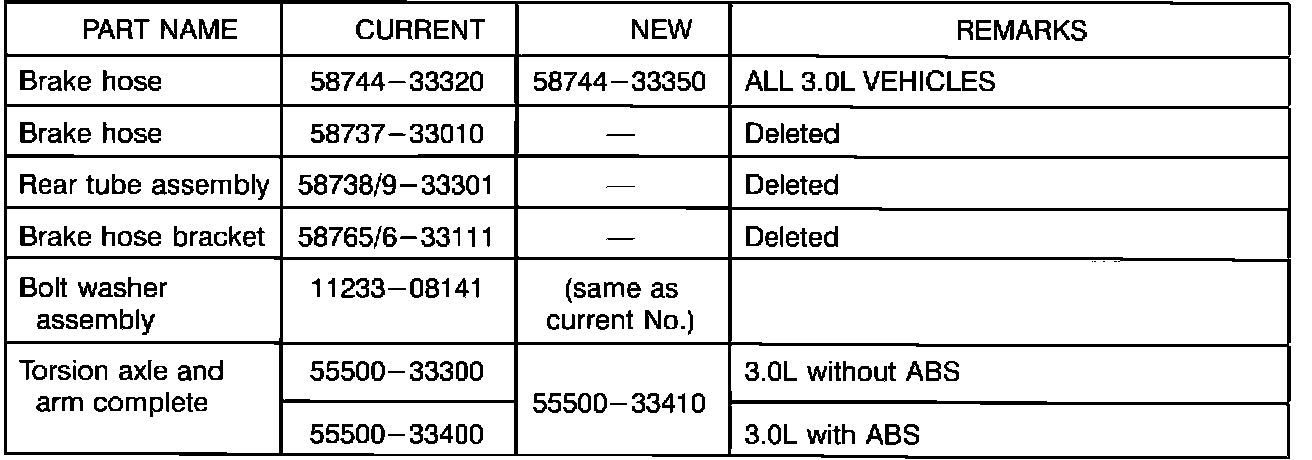

2. PARTS INFORMATION



Effective Date:
Brake Hose, Rear Tube, Bracket: November 18, 1991
Torsion Axle and Arm Complete: April 01, 1992

Interchangeability:
Code B: (Old part is useable on new car, new part is not useable on old car)
