Cooling/Condenser Fan - Stays On
Group: BODY ELECTRICALNumber: 93-90-011
Date: AUGUST, 1993
Model: 1992,1993 SONATA
Subject:
COOLING/CONDENSER FAN STAYS ON
CONDITION:
Cooling fan and/or condenser fan run continuously, with key off.
If in-line diode W in the Engine Wiring Harness should corrode, it might become conductive during humid weather and cause the cooling and/or condenser fan to run continuously.
This conductive path may be difficult to see or test since it may be disrupted when you wiggle the harness or become non-conductive when it is dry. To correct this condition replace the inline diode.

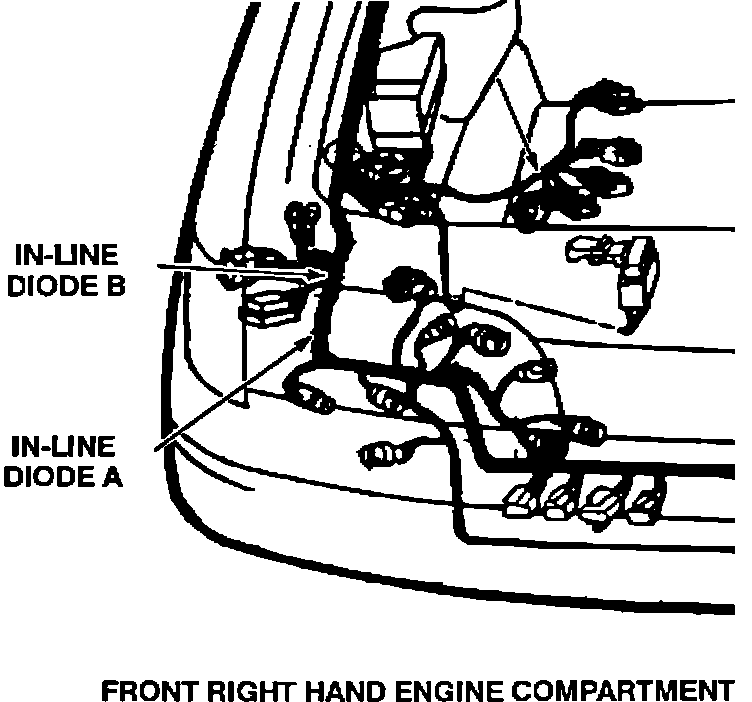

In-line Diode "A" is located behind the battery in the Engine Wiring Harness (See illustration).
Part Name Part No. Model
Diode 91798-33000 1992-1993 Sonata
