A/C System Circuit - Shop Manual Correction

9233hyundai01

Group: BODY ELECTRICAL


Number: 92-90-005


Date: MAY, 1992


Model: SONATA


Subject:
LOCATION OF A/C IN-LINE DIODE SHOP MANUAL CORRECTION


This bulletin is issued to revise the A/C system circuit in the 1991 and 1992 Sonata shop manuals. Please make a note in your shop manuals accordingly.


MODEL YEAR PUBLICATION NUMBER PAGE NUMBERS

1991 YS-900507 (For V-6) Appendix - pg 98
1991 YS-900406 Appendix - pg 88


1992 Volume 2 WS - 191
YS-910159

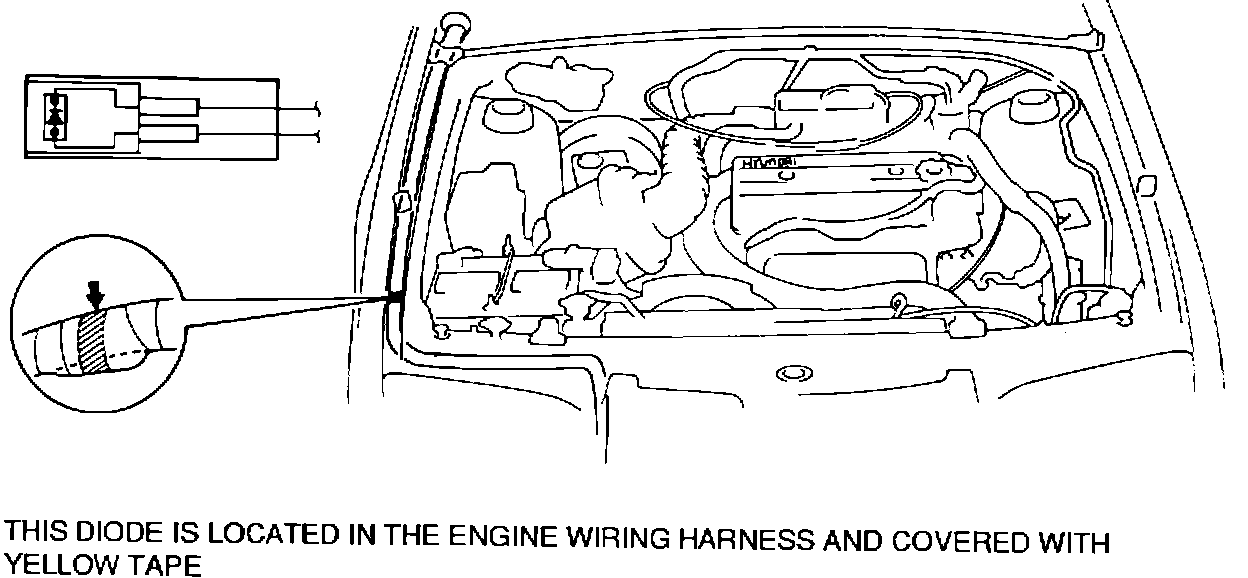

LOCATION OF IN-LINE DIODE "B" (PART NUMBER: 91798-33000)

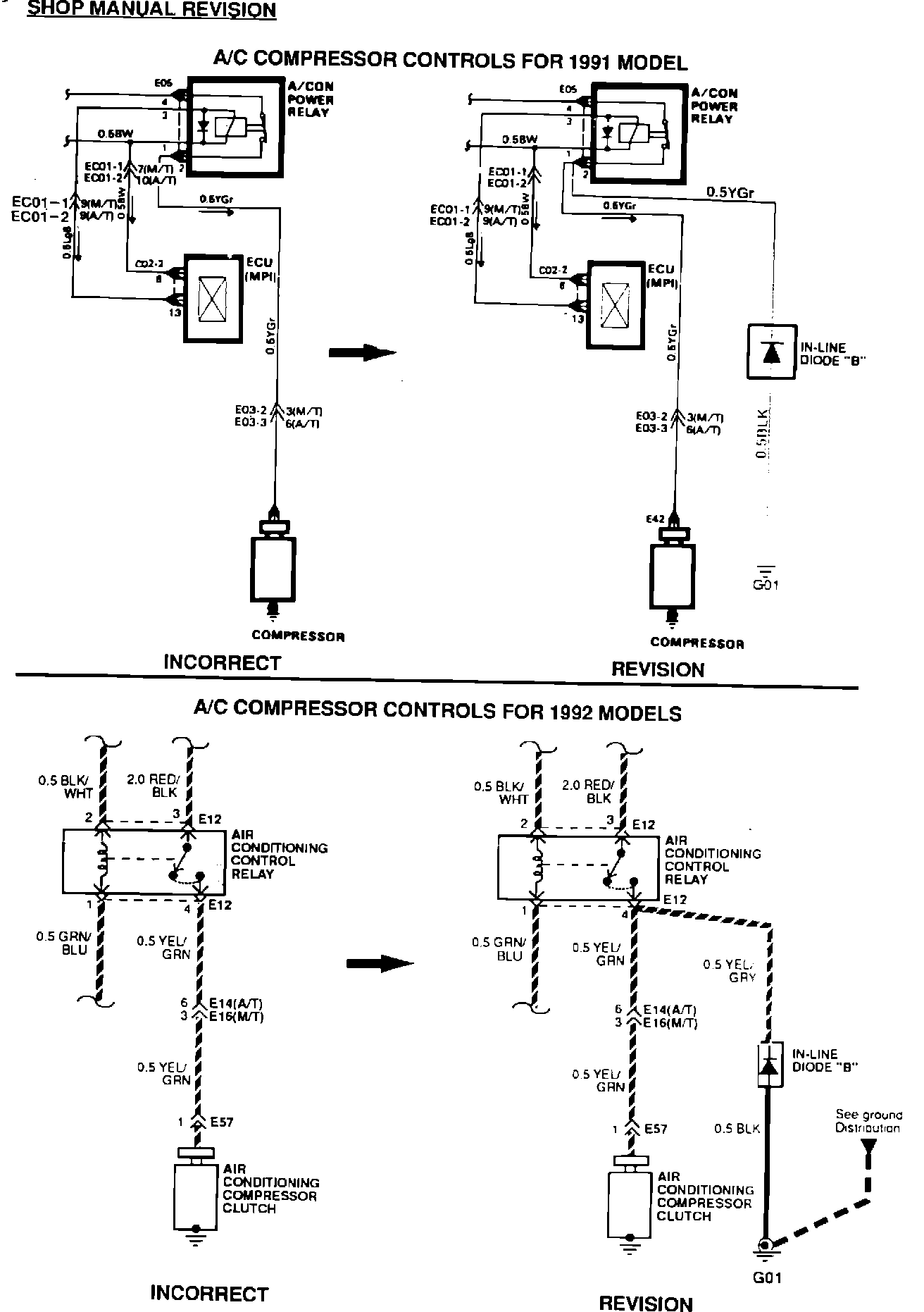

Compressor Control Diagram
