Vanity Lamp

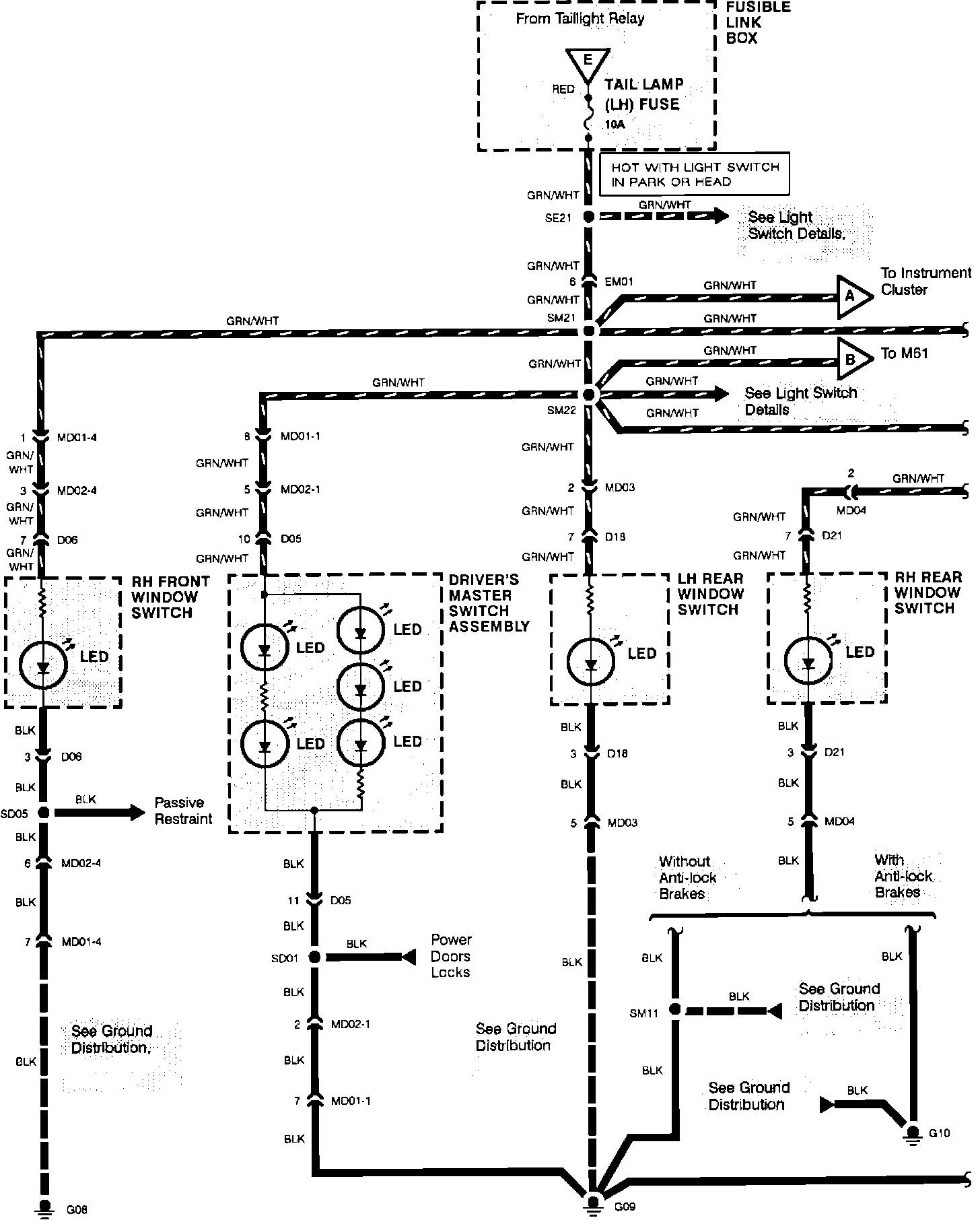

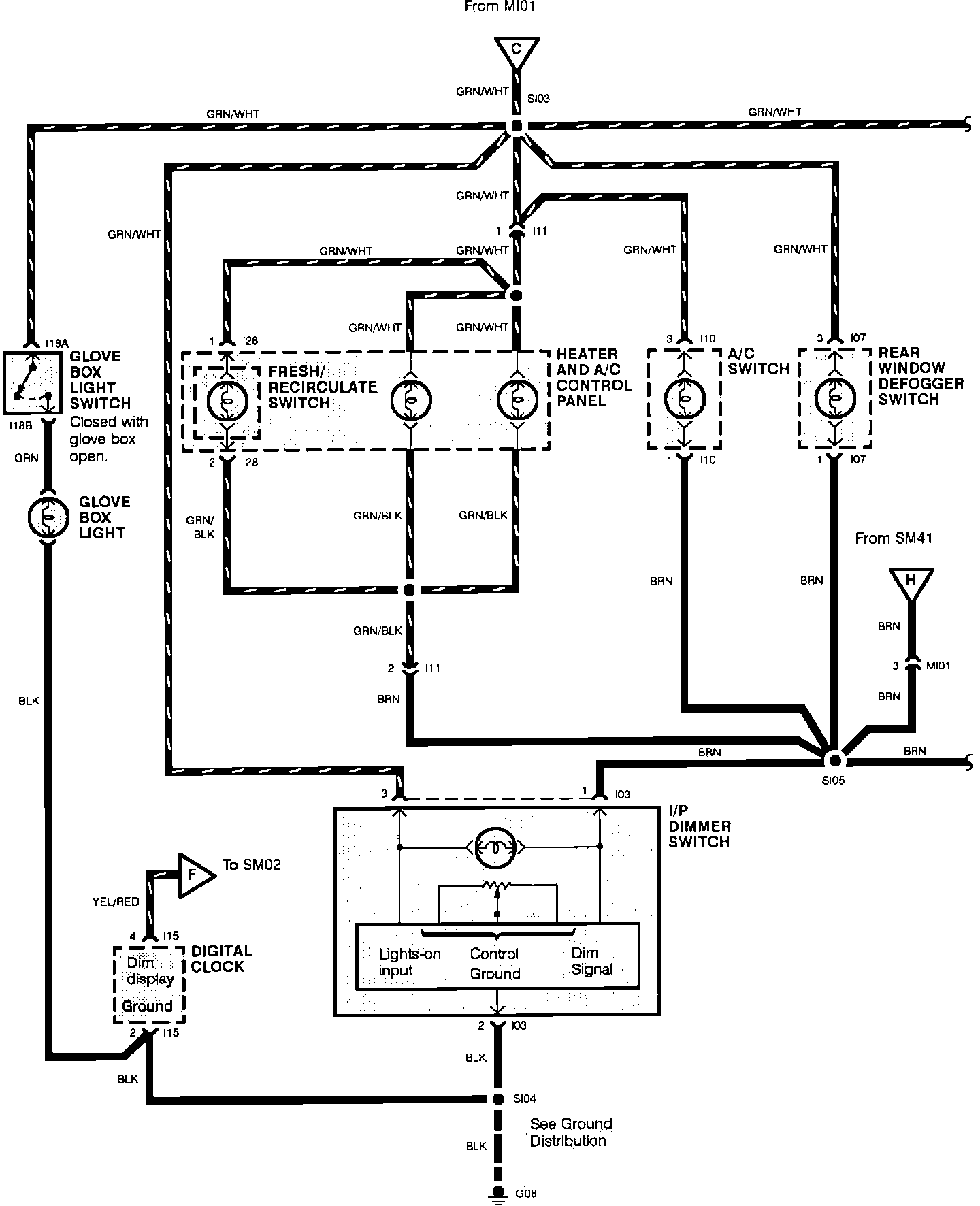

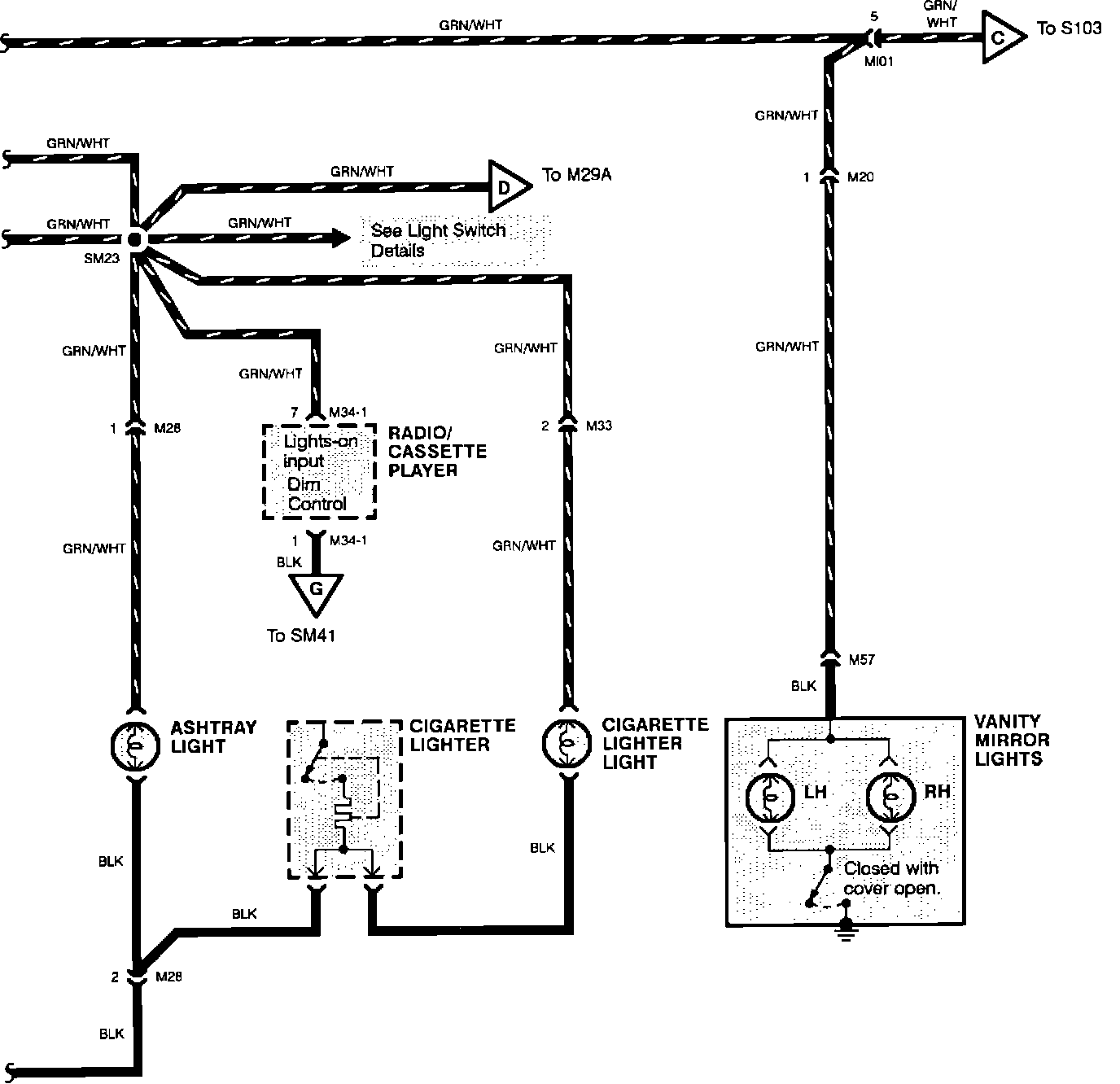

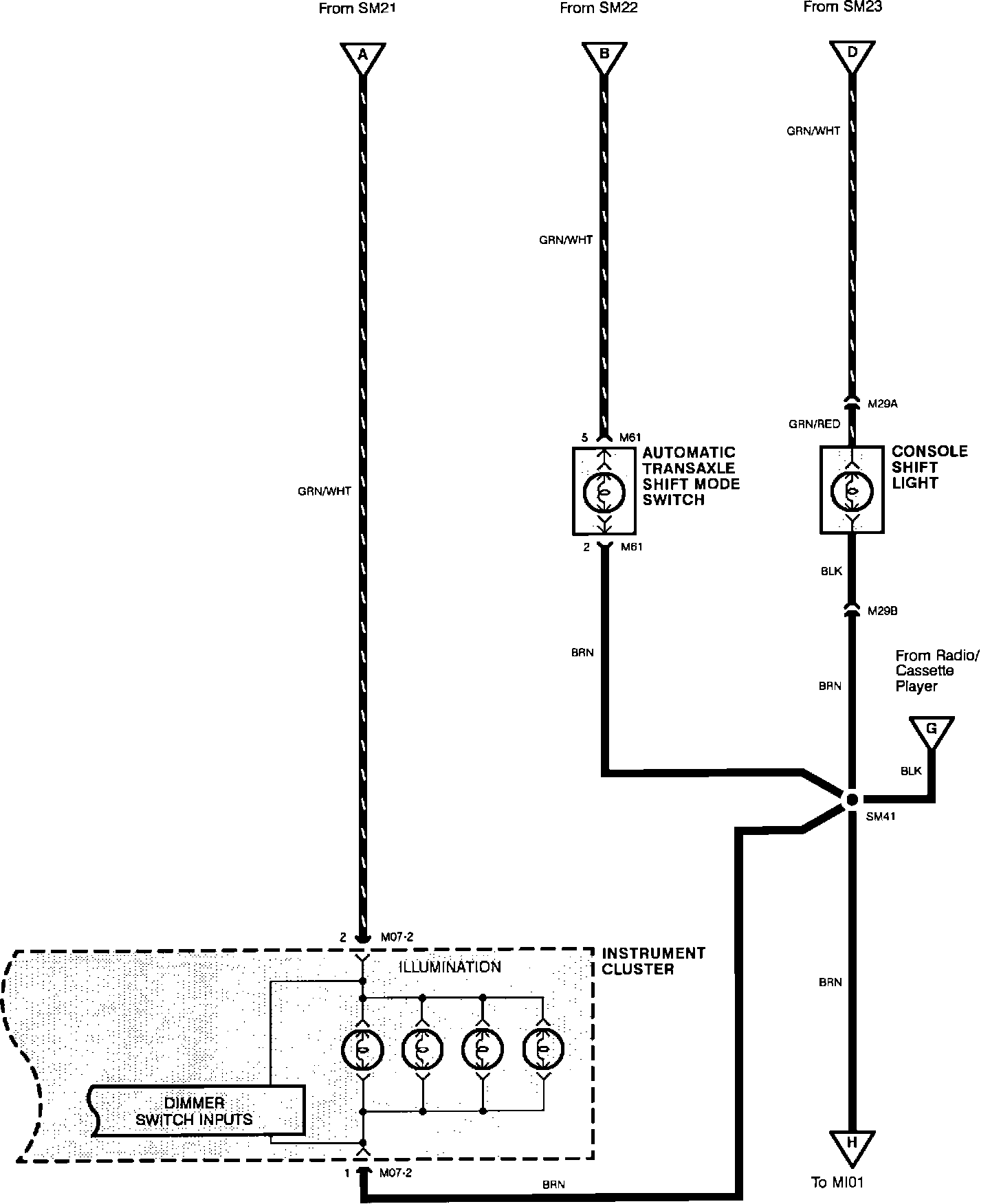

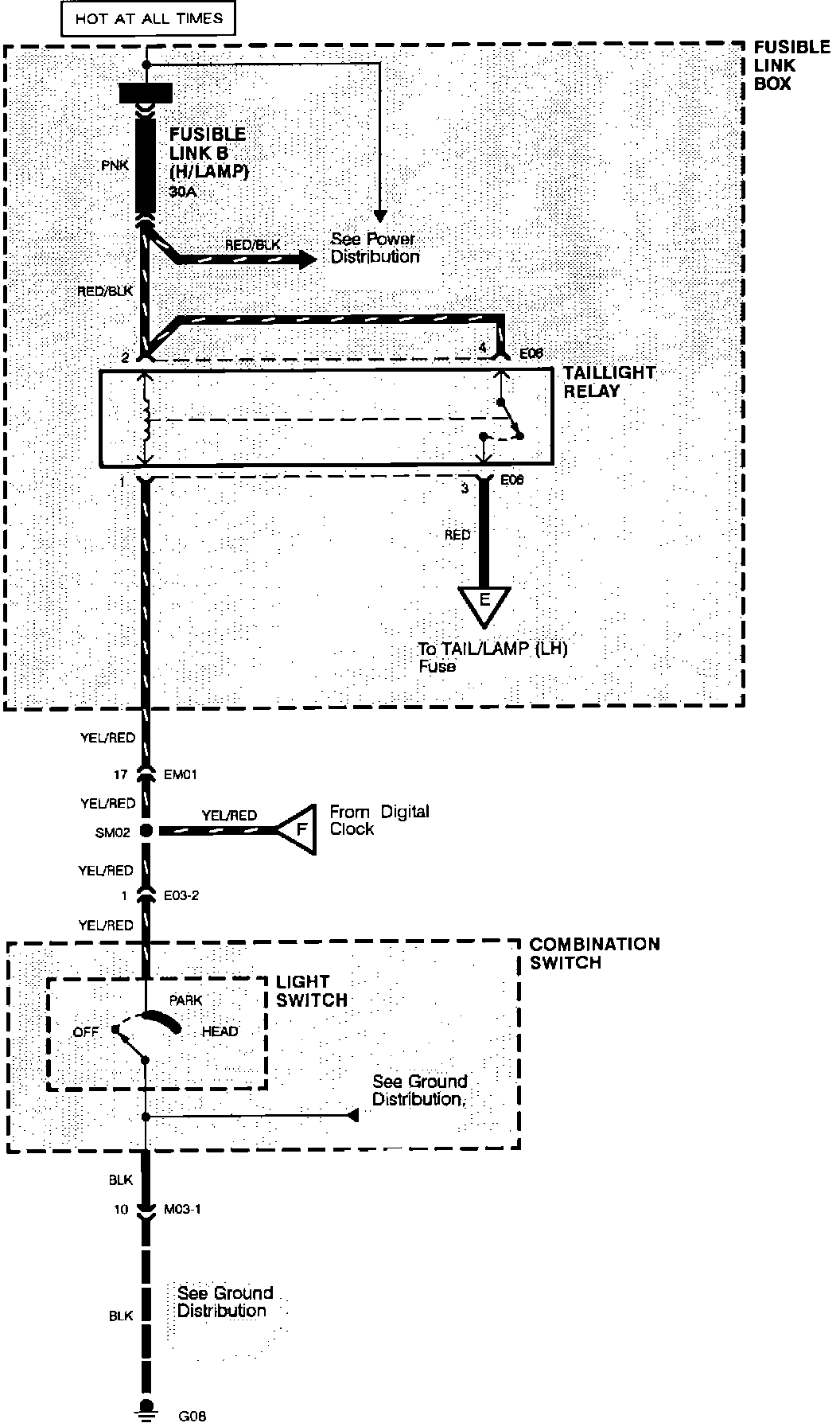

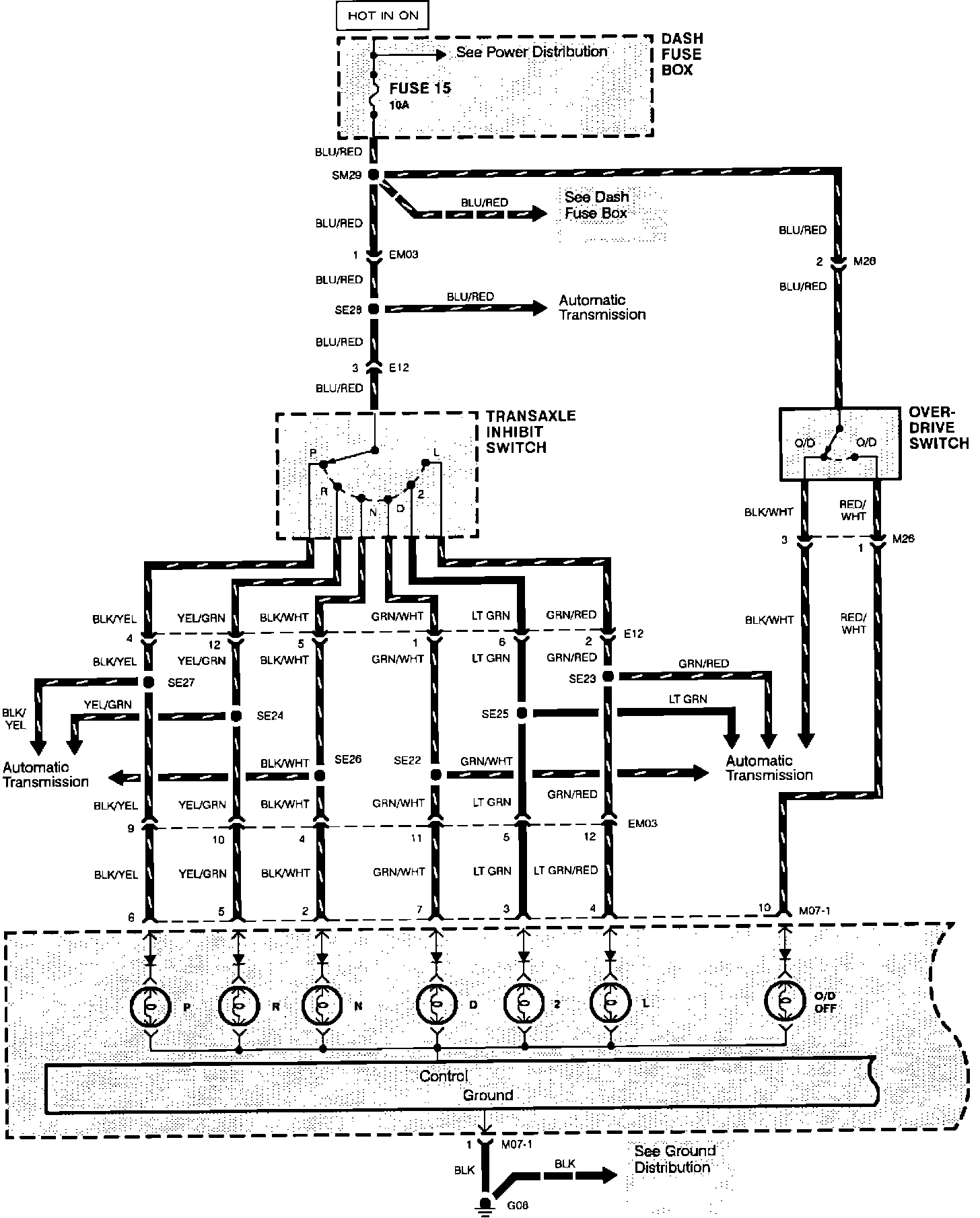

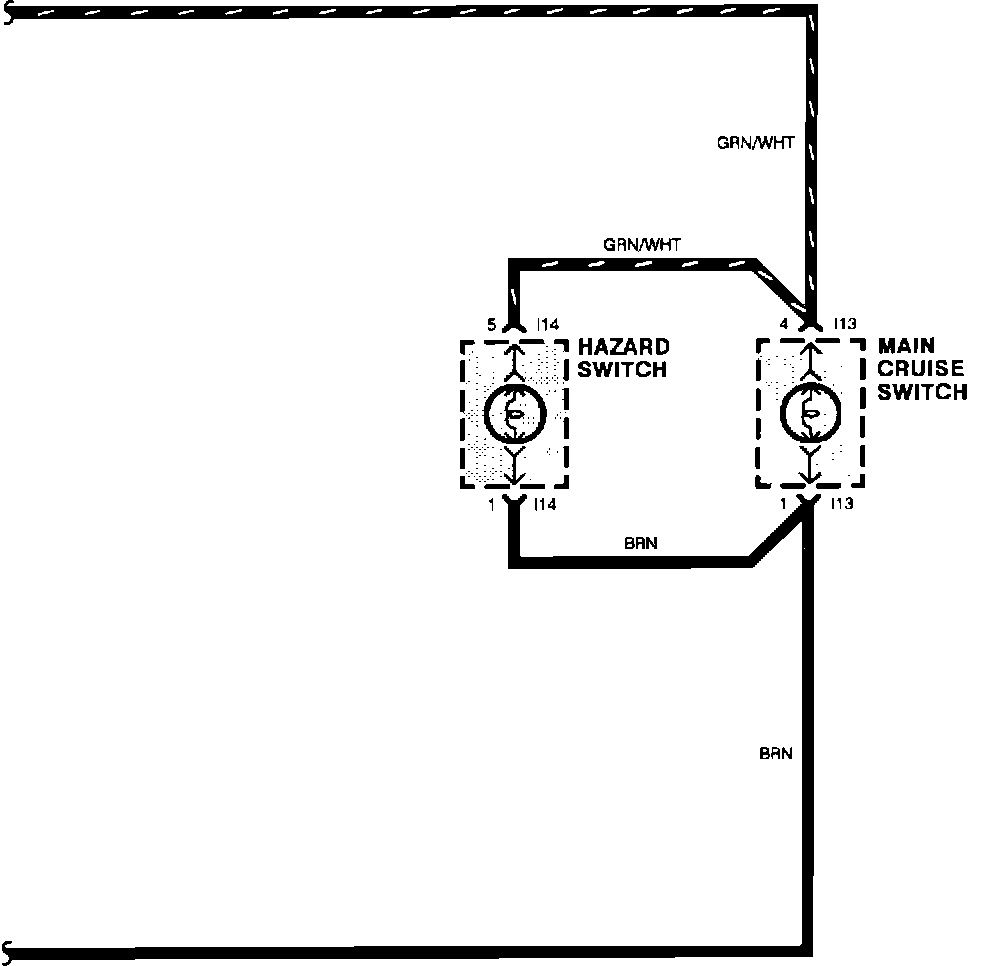

Dash, Console, Vanity Mirror And Power Window Switch Lamps:



Dash, Console, Vanity Mirror And Power Window Switch Lamps:



Dash, Console, Vanity Mirror And Power Window Switch Lamps:



Dash, Console, Vanity Mirror And Power Window Switch Lamps:



Dash, Console, Vanity Mirror And Power Window Switch Lamps:



Dash, Console, Vanity Mirror And Power Window Switch Lamps:



Dash, Console, Vanity Mirror And Power Window Switch Lamps:
