ABS - Control Unit Connector Manual Revision

Group: BODY ELECTRICAL

Number: 93-90-004

Date: APRIL, 1993

Model: SONATA

Subject:

ANTI-LOCK BRAKE SYSTEM: CONTROL UNIT CONNECTOR SHOP MANUAL ILLUSTRATION

DESCRIPTION

This bulletin is being issued to clarify the illustration of the anti-lock brake system control unit connector shown on page 58A-28 of the 1992 and 1993 Sonata Shop Manual Volume 1.





Please update the illustrations in your shop manuals as depicted. These additions will help you to properly identify the functions of the connector pin arrangement with certainty as to the orientation of the connector.

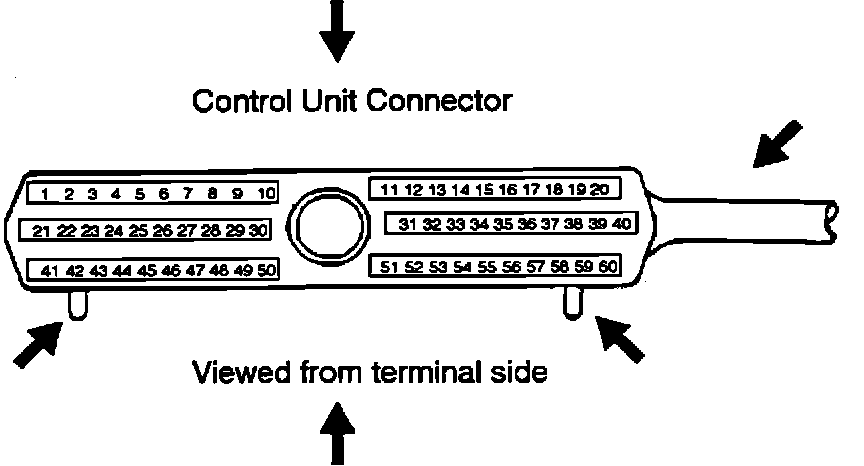

ANTI-LOCK BRAKE SYSTEM: Control Unit Connector
