Canister Purge Solenoid: Locations

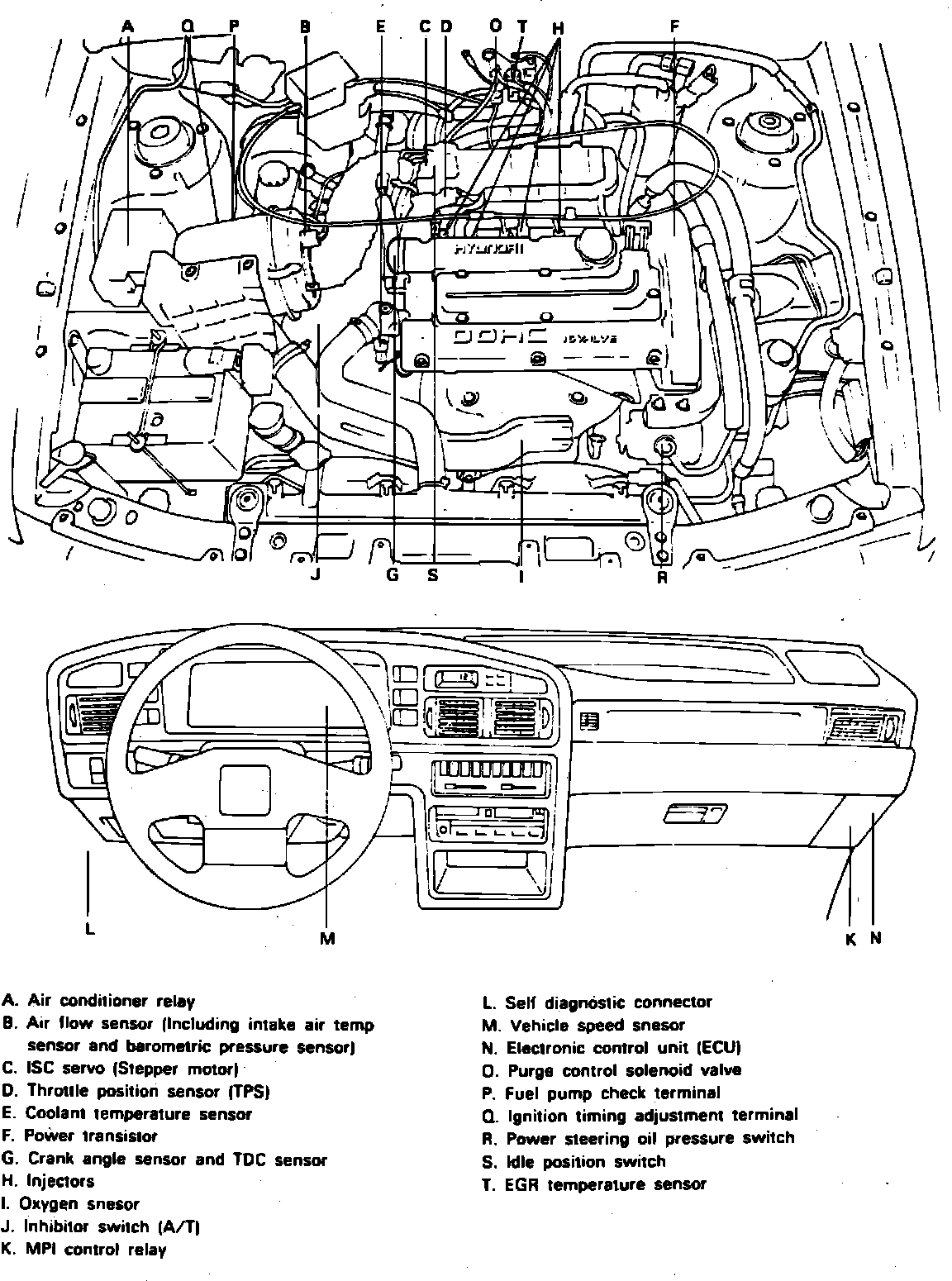

MPI System Component Location (Part 1 Of 2).:

MPI System Component Location (Part 1 Of 2).:

Center Rear Of Engine Compartment

Applicable to: 2.0L/4-122 Engine
