ETAC, CEC and Power Window - Wiring Diagram Corrections

Group: BODY ELECTRICAL

Number: 93-90-003

Date: MAY, 1993

Model: SONATA

Subject:
ETAC, DOHC CIRCUIT, AND POWER WINDOW MAIN SWITCH
- 1992 SHOP MANUAL CORRECTION

DESCRIPTION

Included are the correct ETACS circuit diagram, DOHC circuit diagram and check chart for the power window main switch for the 1992 Sonata Shop Manual, Volume 2.

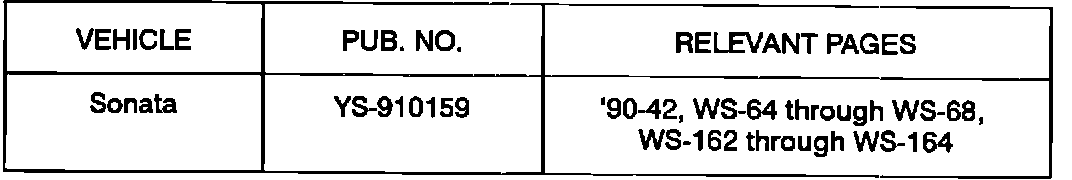

For your reference, please write this TSB number in the revision boxes at the bottom of relevant pages in the Shop Manual.





SHOP MANUAL INFORMATION

CONTENTS

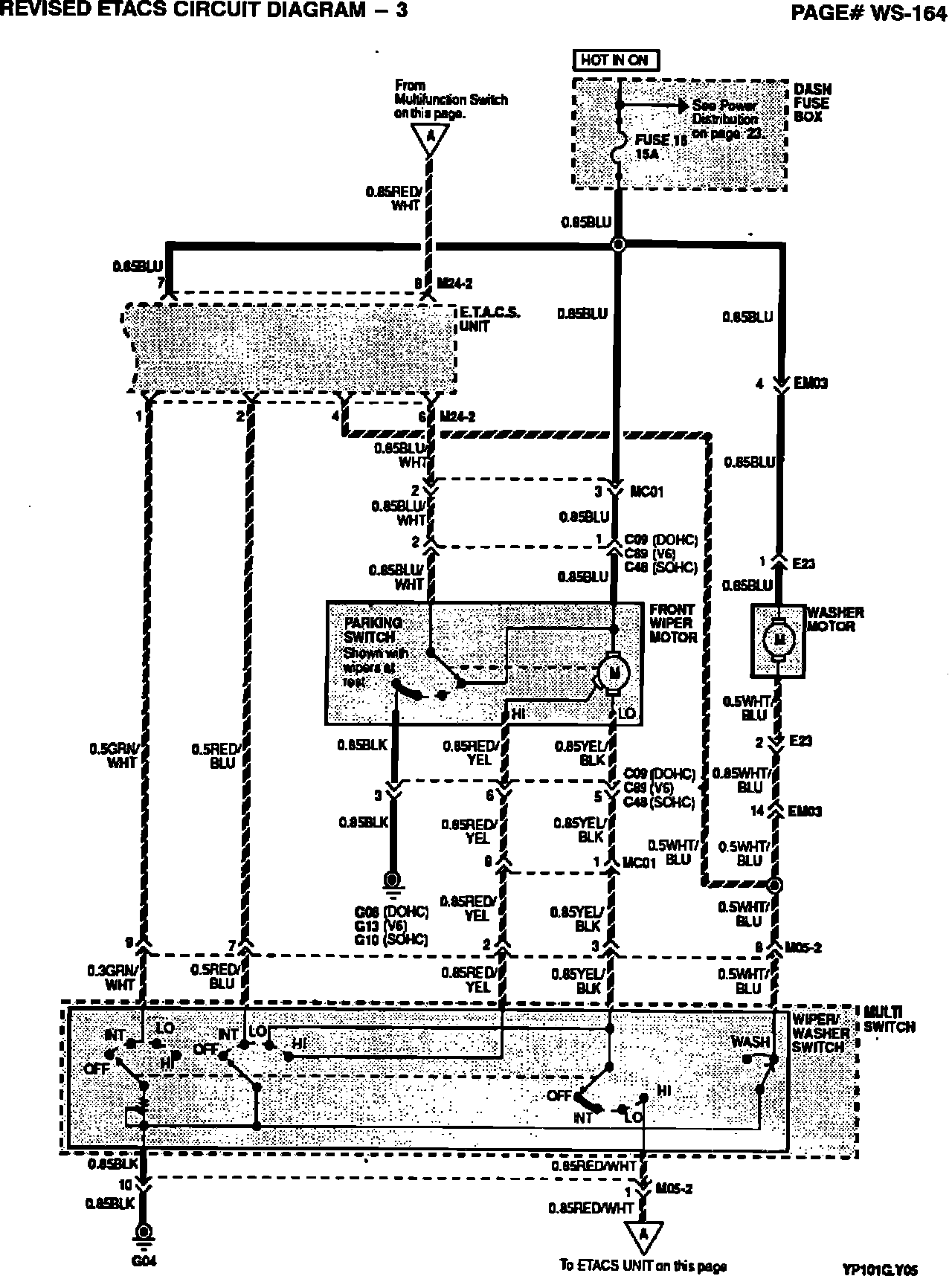

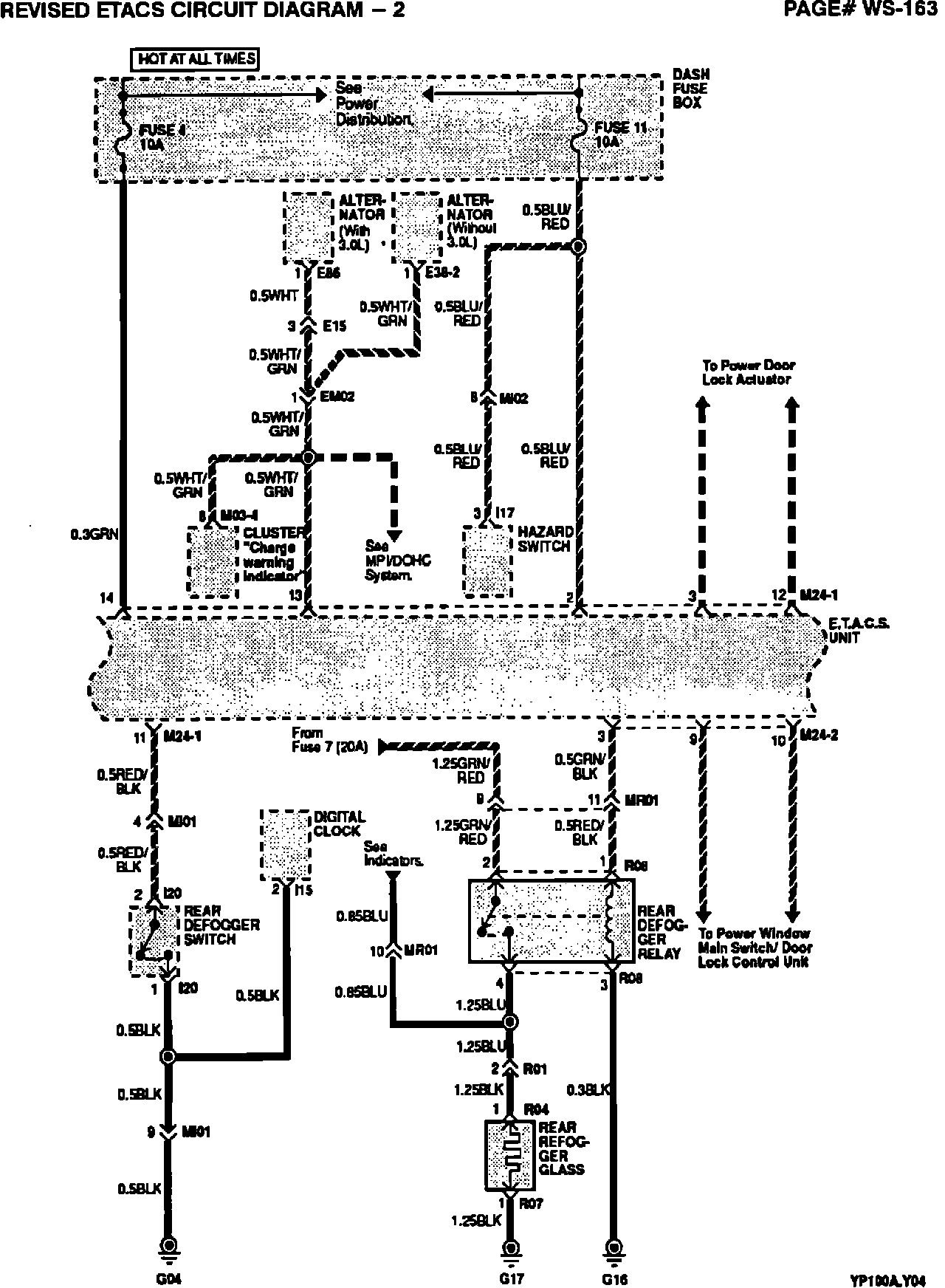

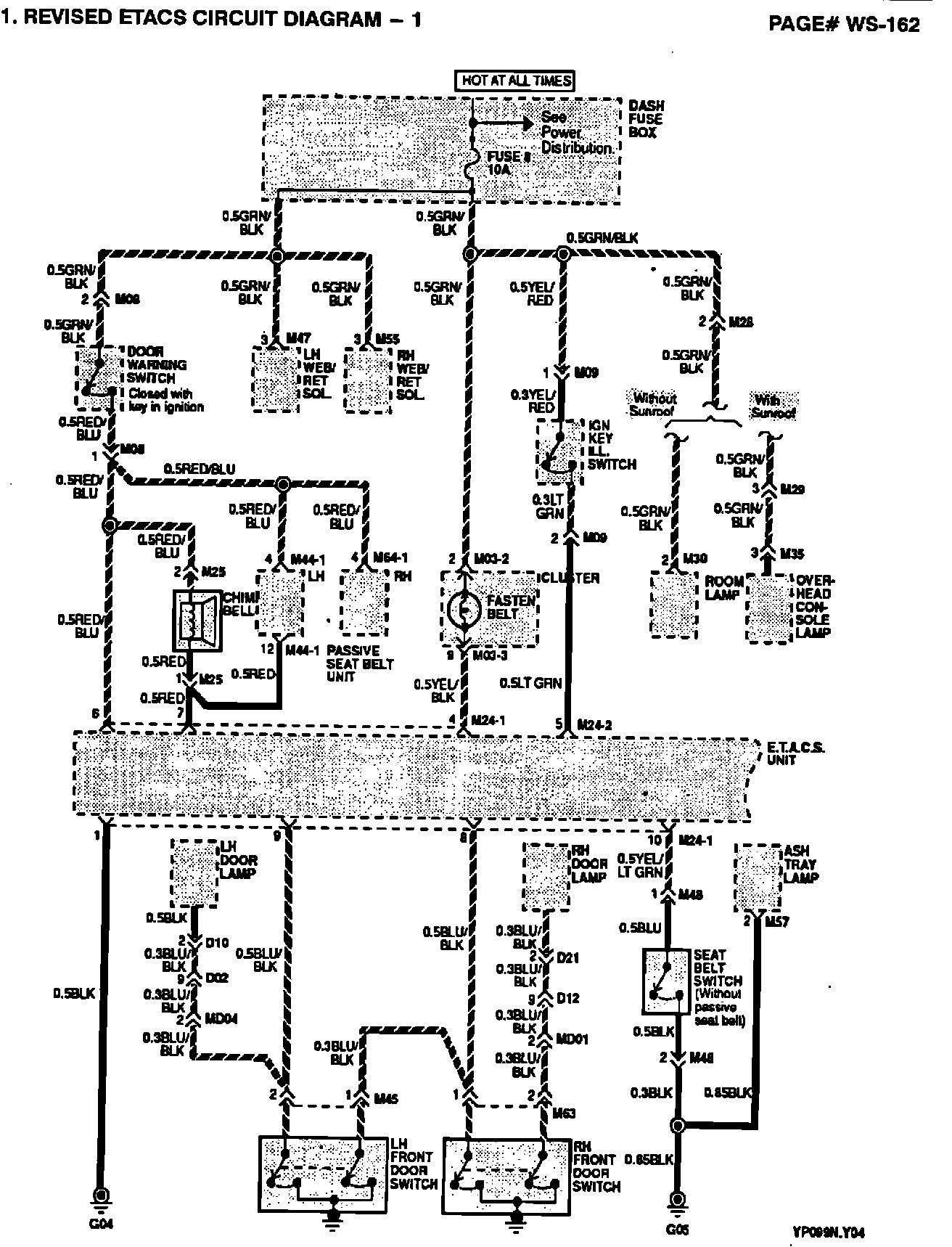

1. Revised ETACS circuit diagram

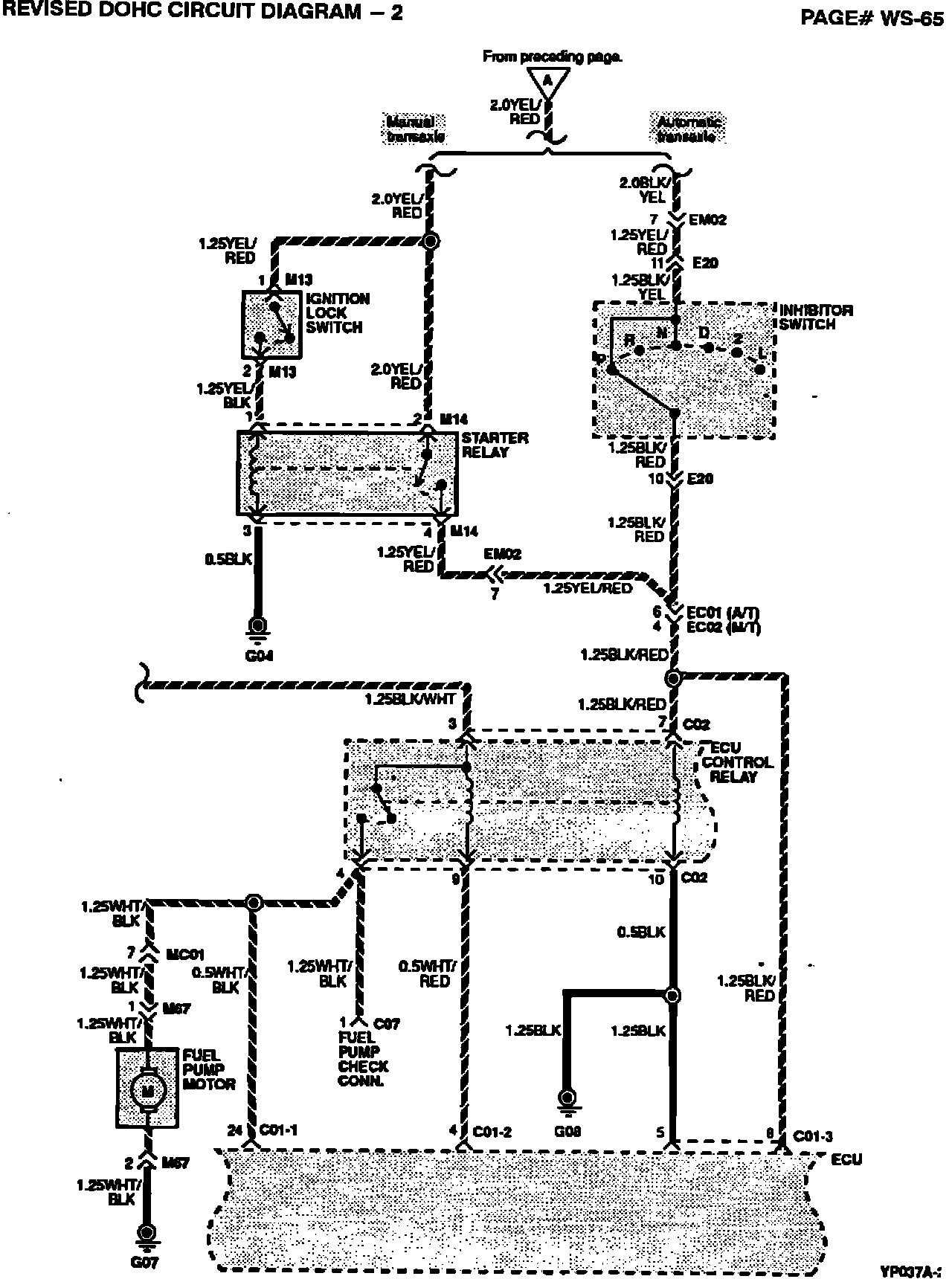

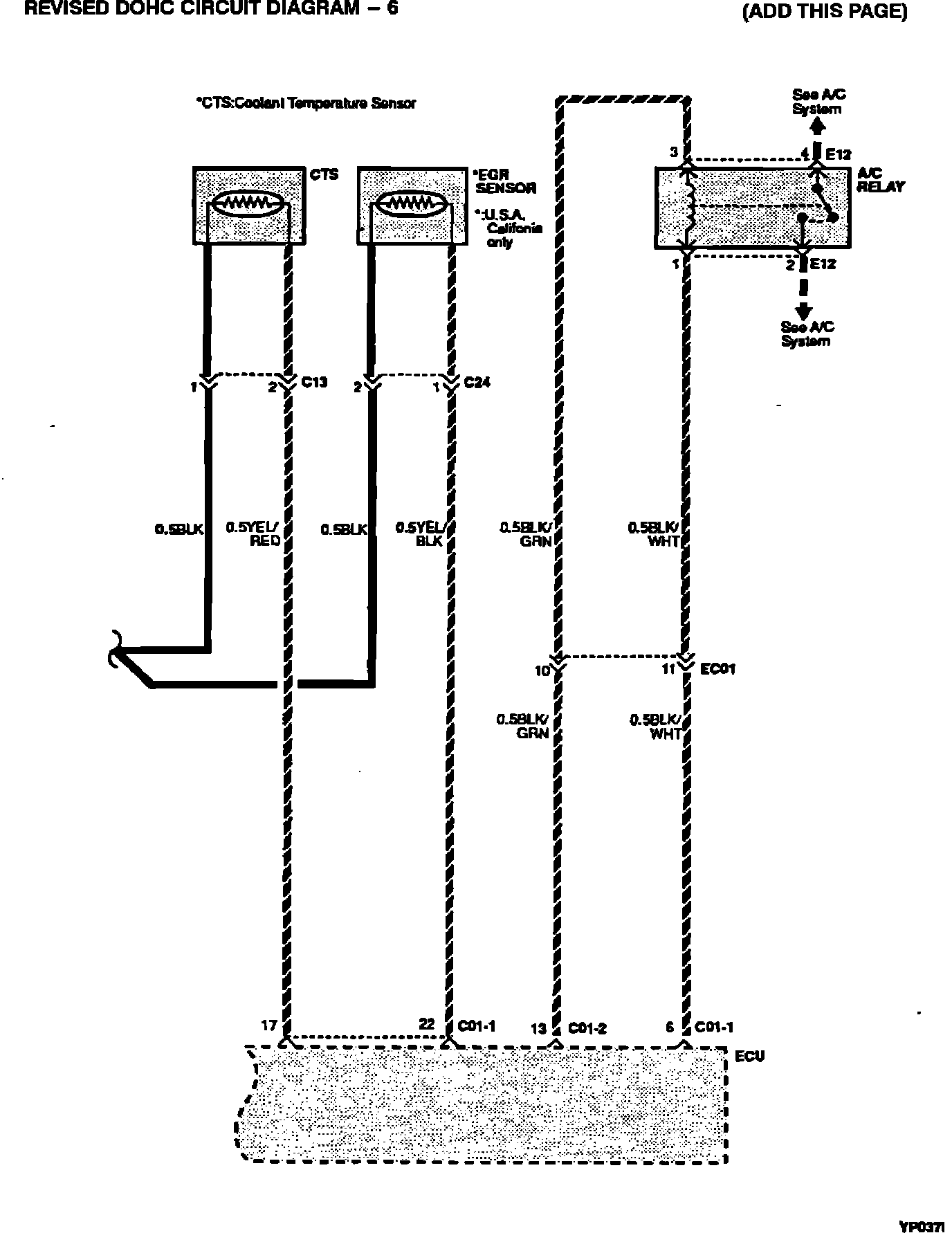

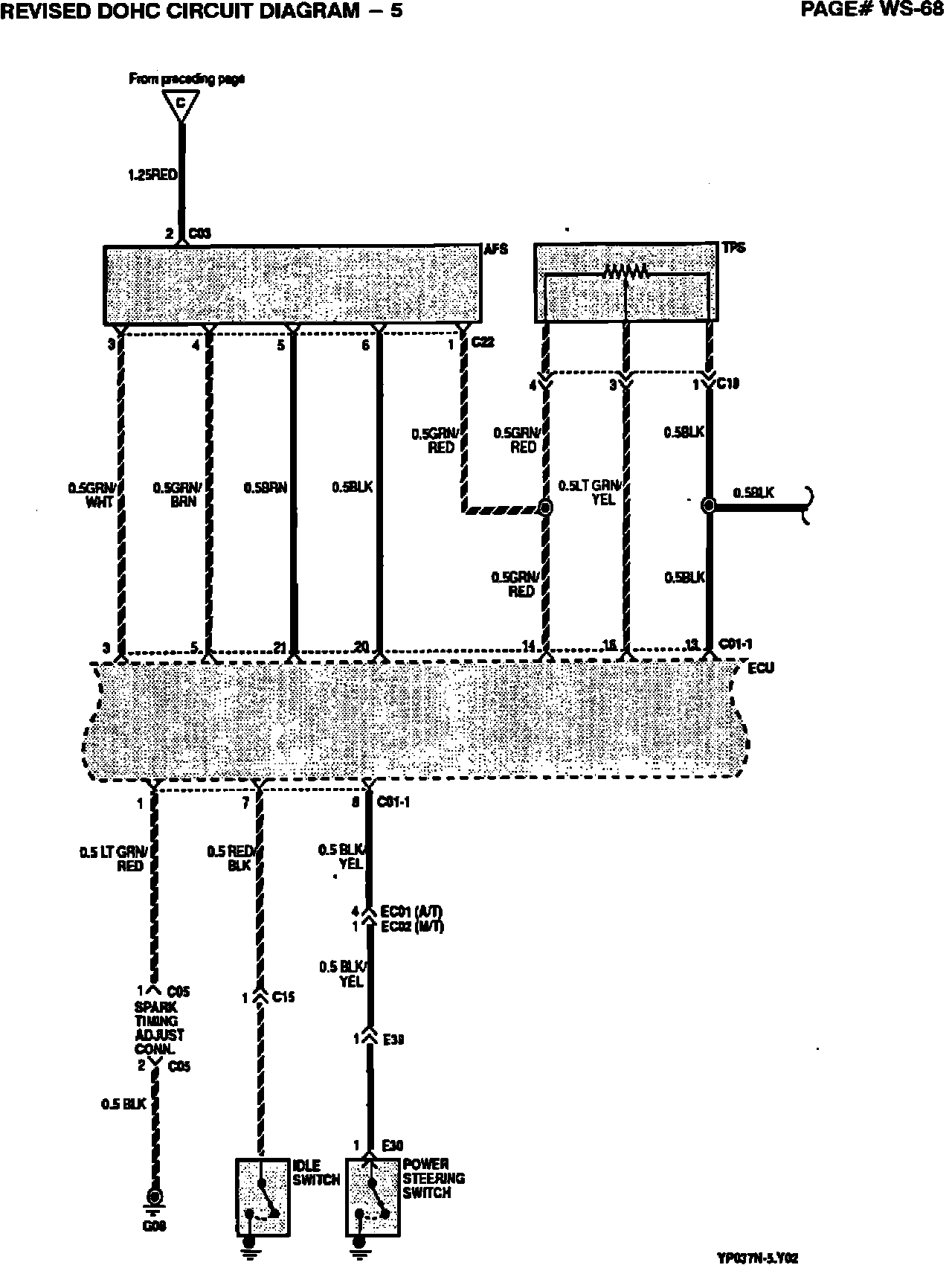

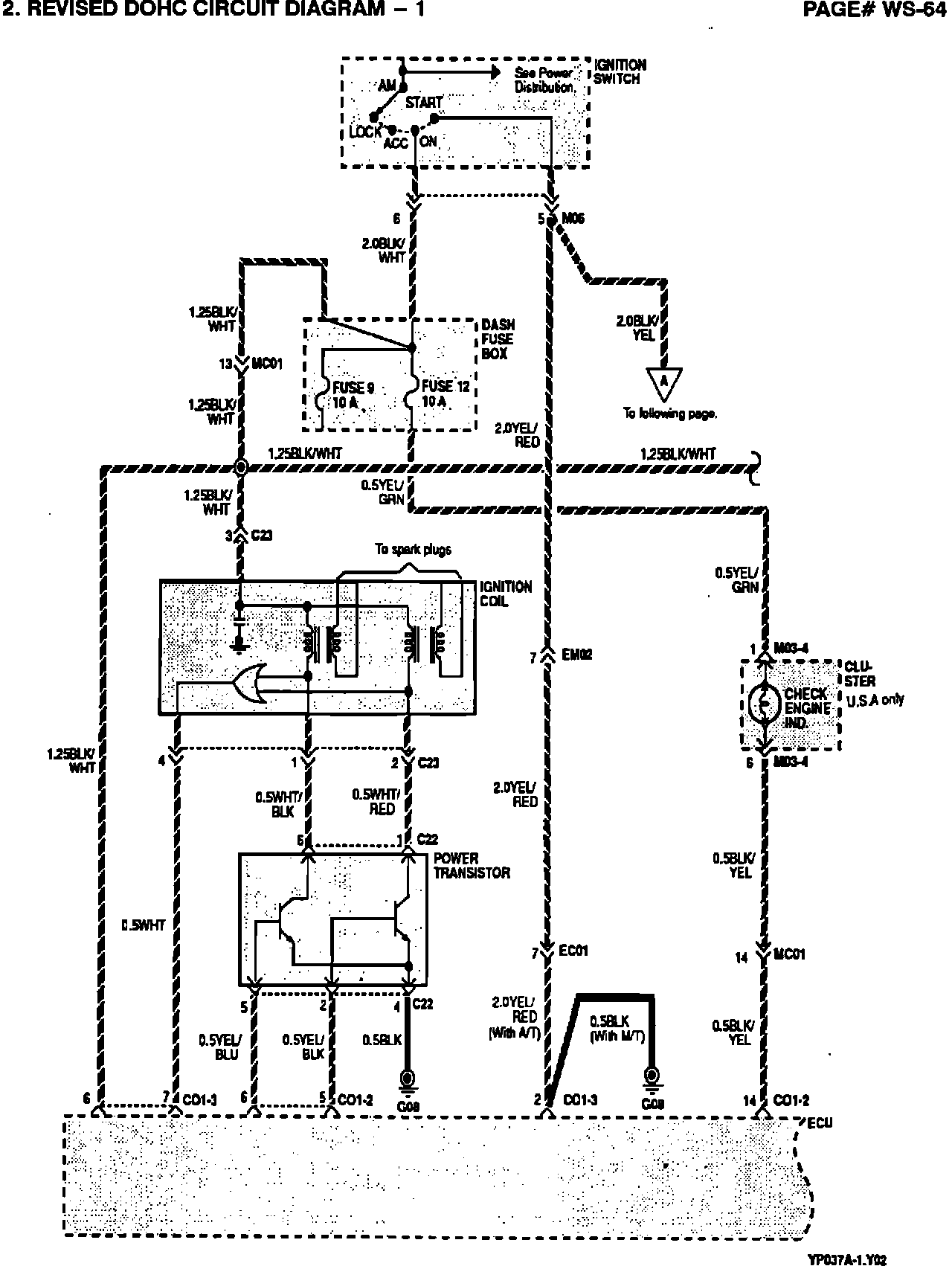

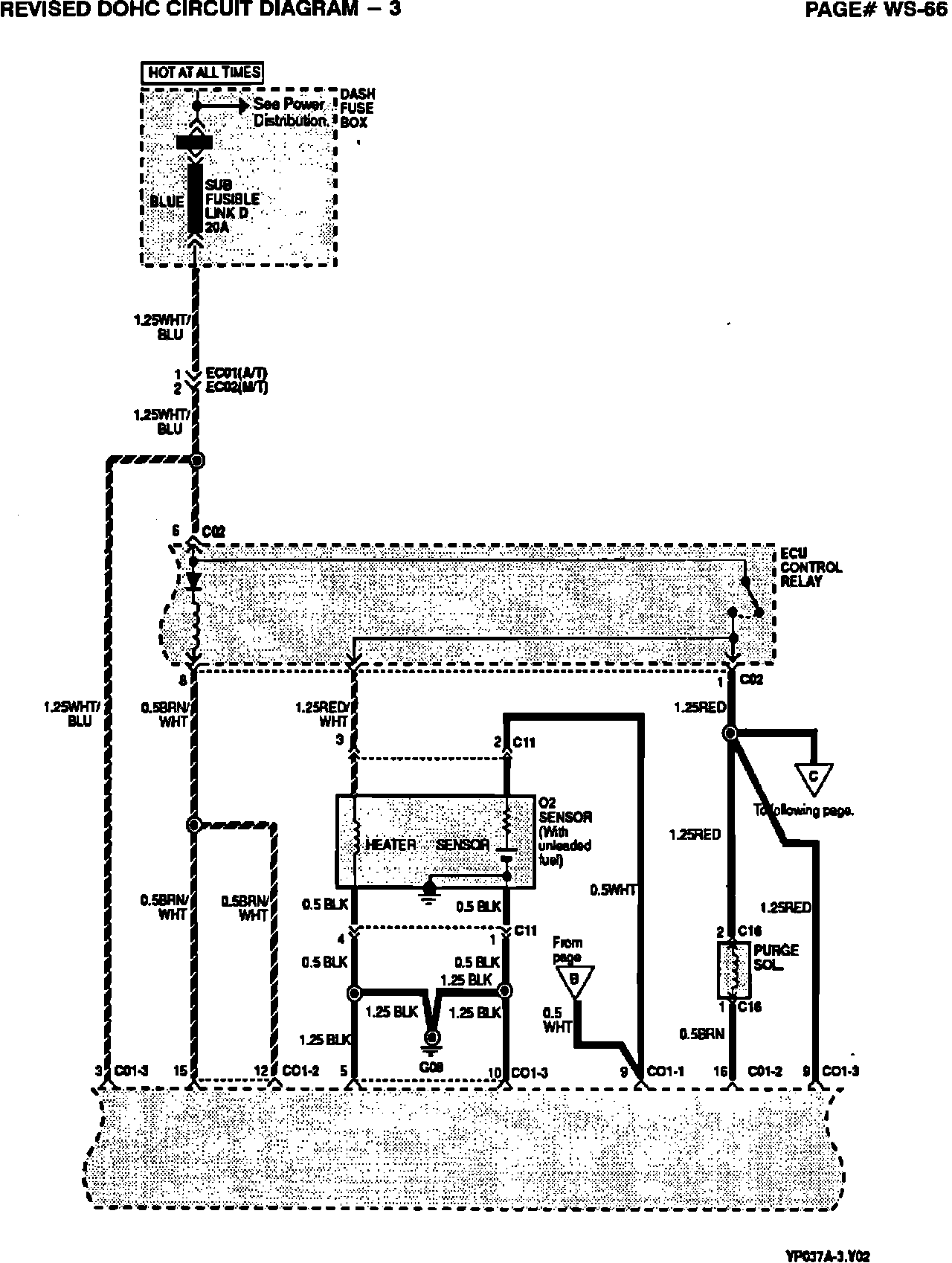

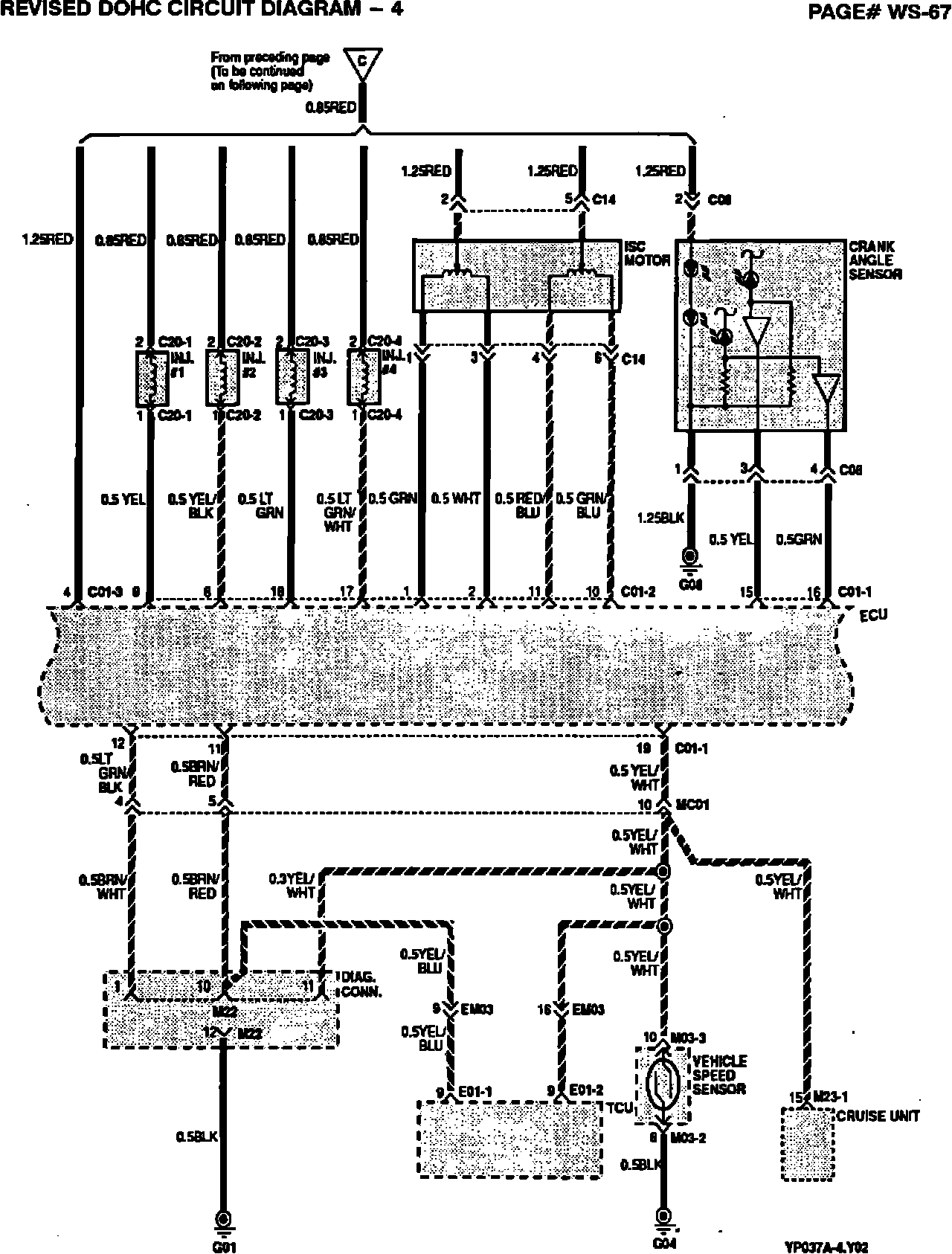

2. Revised DOHC circuit diagram

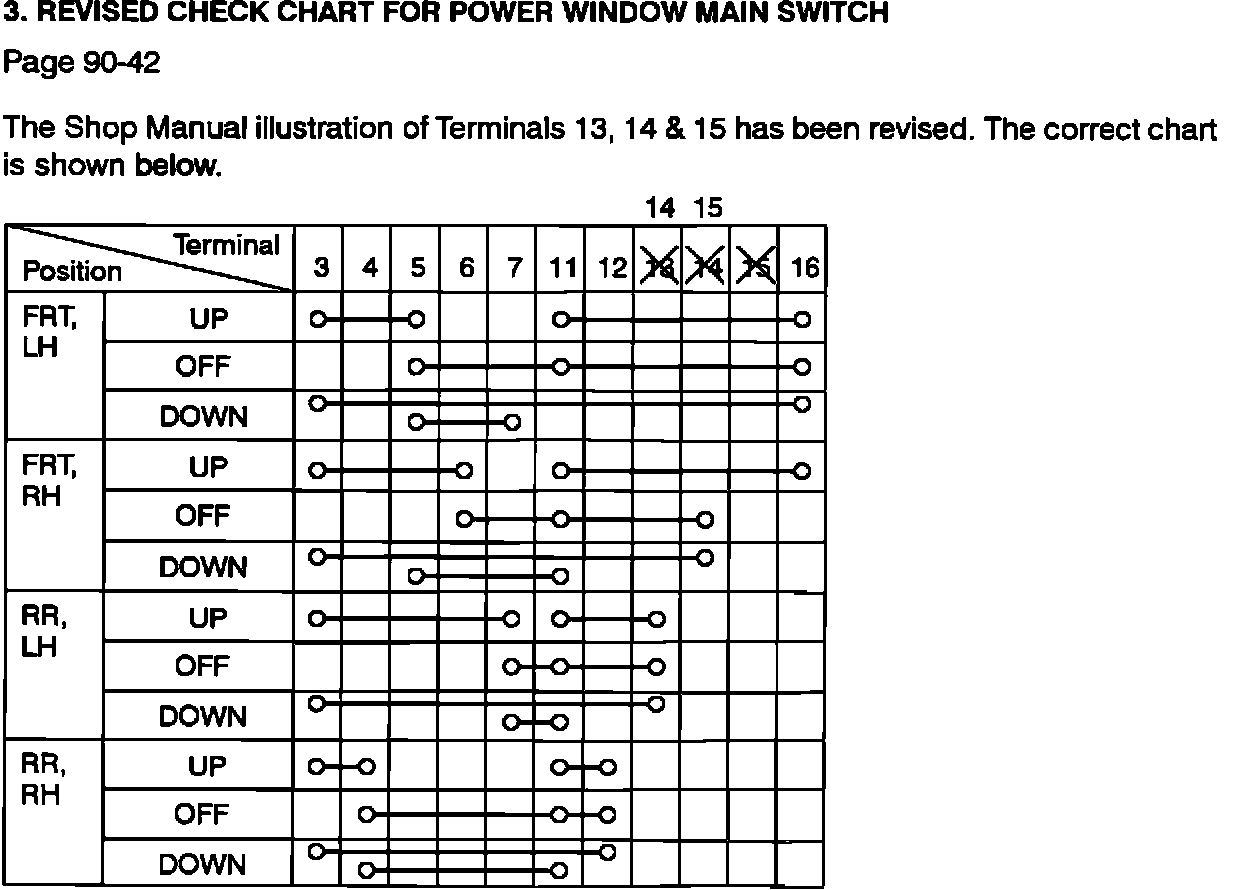

3. Revised check chart for power window main switch
