1992
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Main Harness
Main Harness

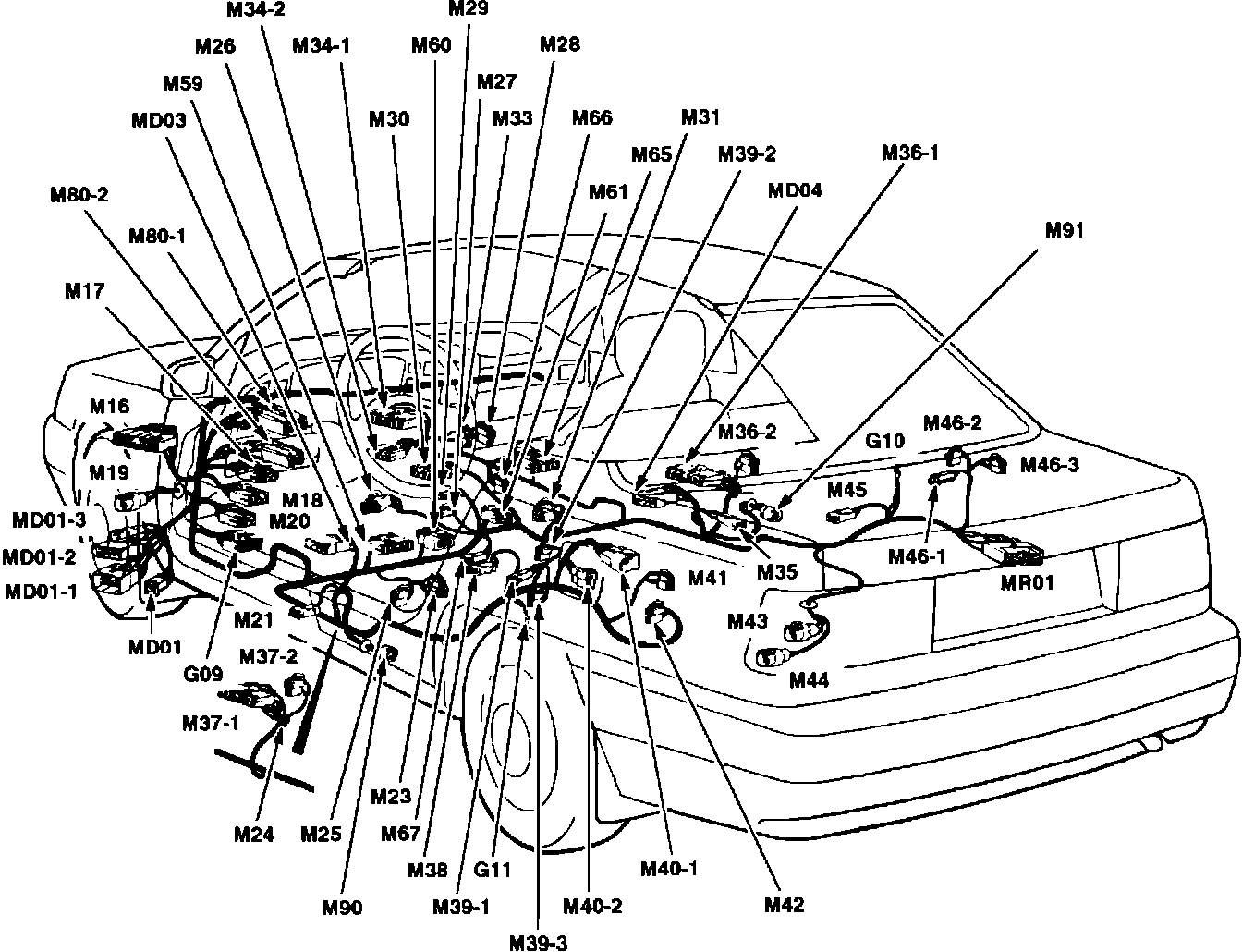

Main Harness Routing: Connector Location:
Main Harness Routing: Connector Locations (Instrument Panel):
Main Harness Routing: Engine Compartment:
