Home
>>
Hyundai
>>
1992
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
Ground Connector G10
Ground Connector G10

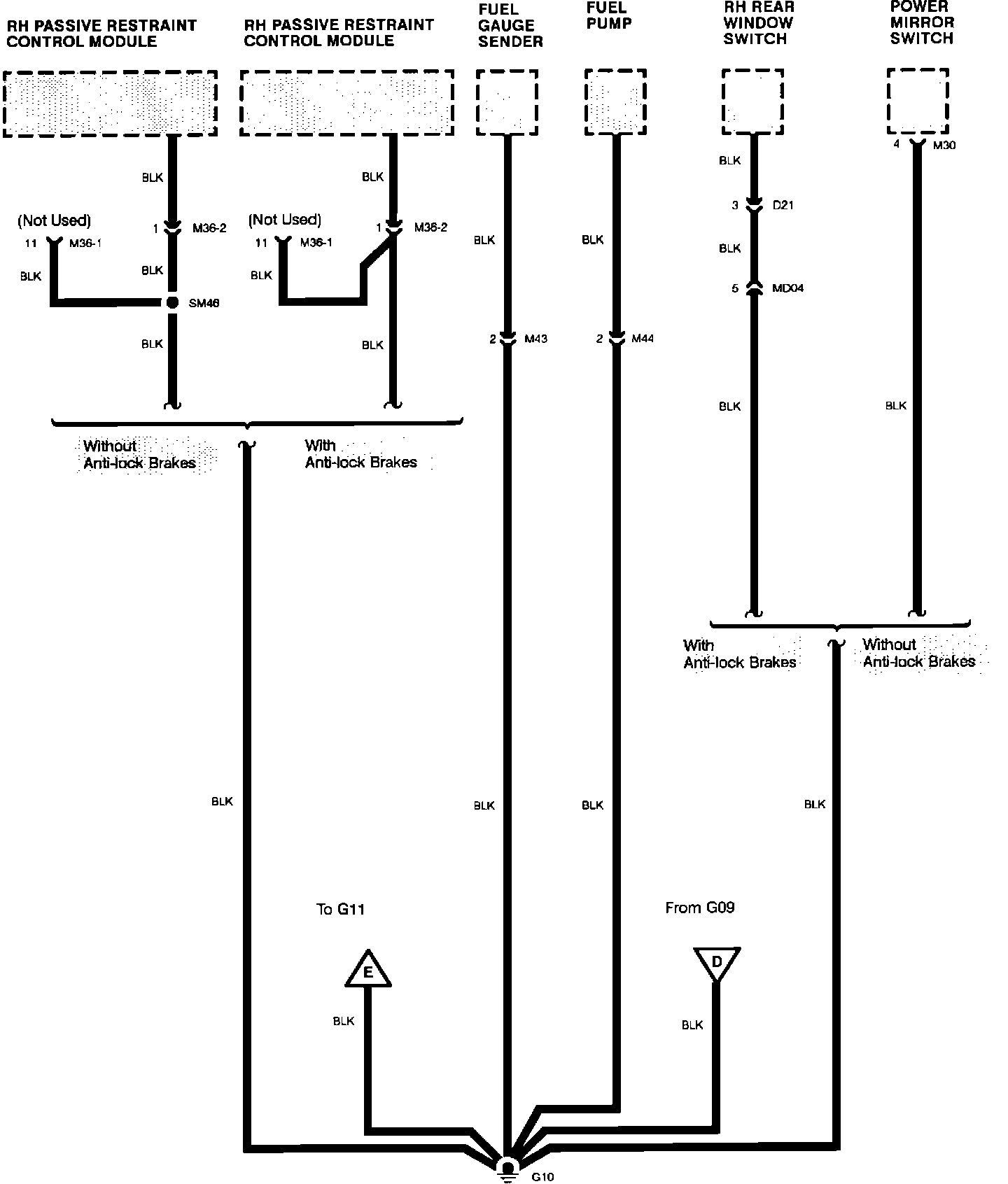

Ground Distribution: G10 And G11:
