Seat Track to Seat Frame Bolt - Torque Specification

Group
TRIM

Number
92-80-003

Date
JULY, 1992

Model
1990-1992 EXCEL, SCOUPE



Subject

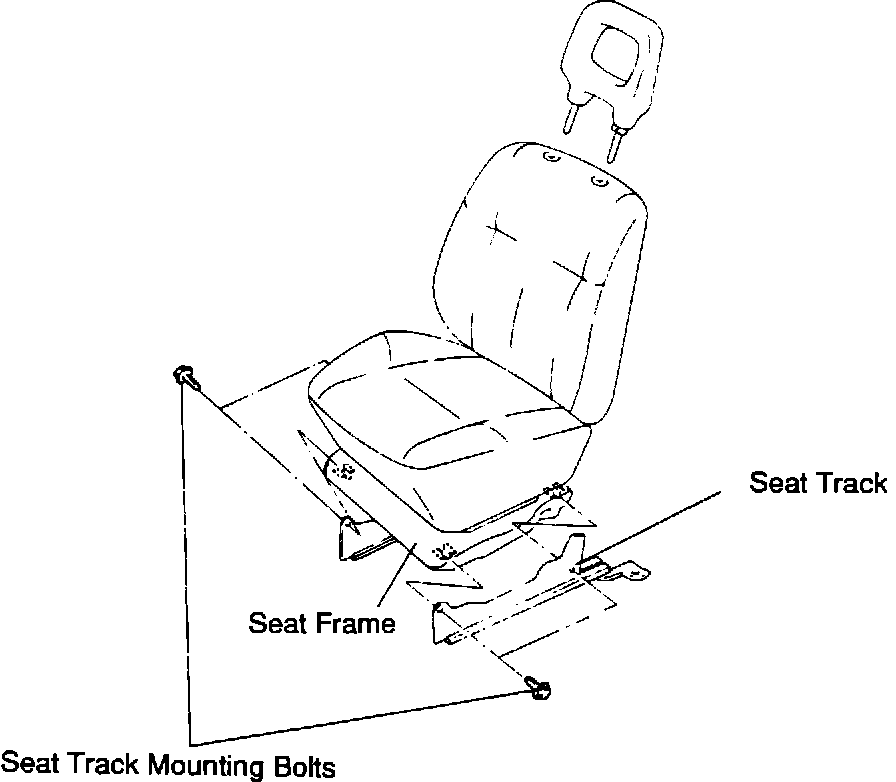

SEAT TRACK-TO-SEAT FRAME BOLT TORQUE SPECIFICATION






The tightening torque for the seat track-to-seat frame mounting bolts was omitted from the following shop manuals:

1990 & 1991 Excel Shop Manuals p. 60-69
1992 Excel Shop Manual p. 60-64
1991 & 1992 Scoupe Shop Manuals p. 60-56


TIGHTENING TORQUE:

The proper tightening torque should be 12-20 lb.ft (1.6 - 2.7 kg.m).


Please revise your shop manuals to reflect the correct torque.
