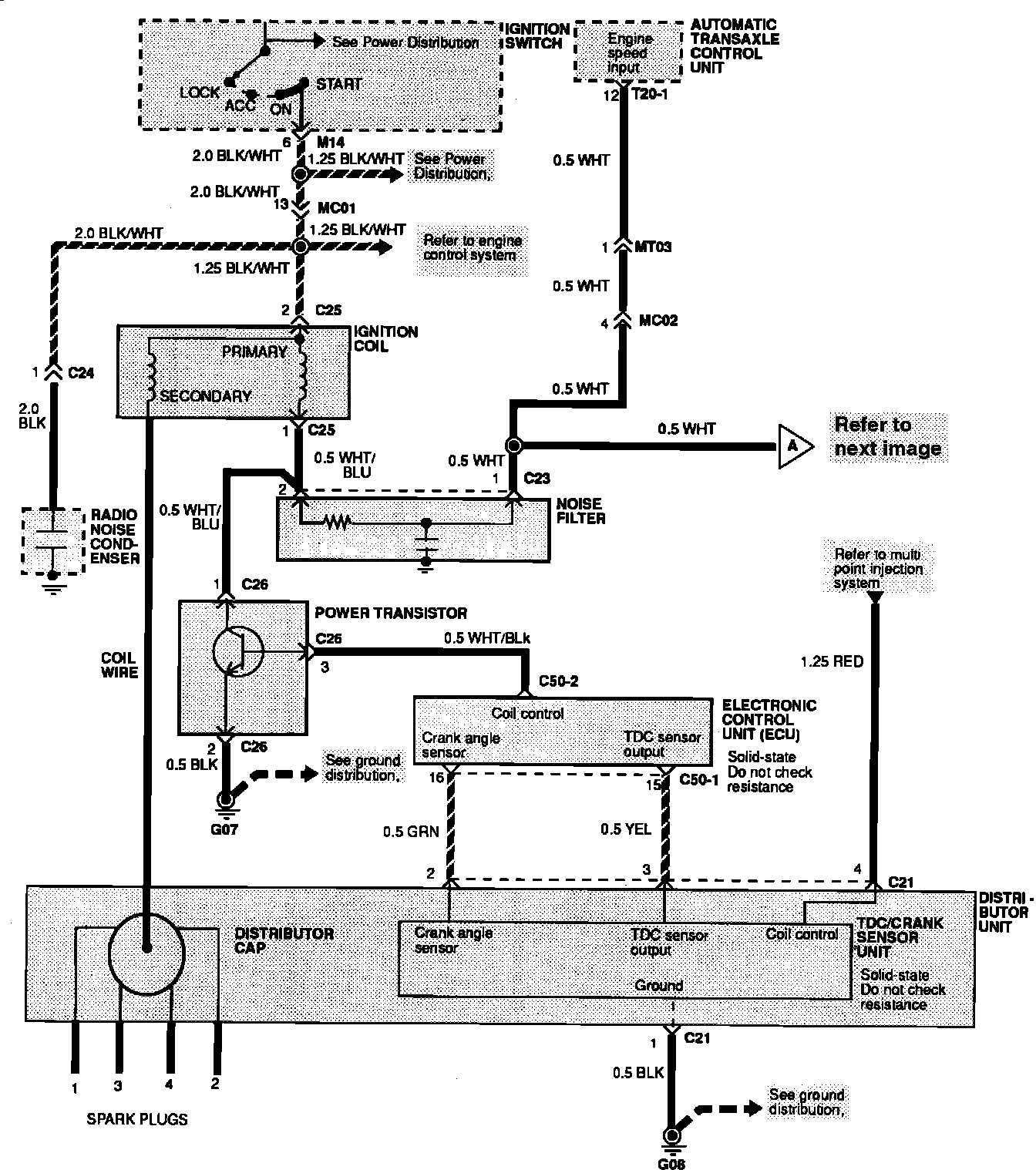

Ignition System:
Ignition System:
For additional wiring information refer to
CHASSIS ELECTRICAL DIAGRAMS
.
