Home >> Hyundai >> 1992 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> FBC

FBC

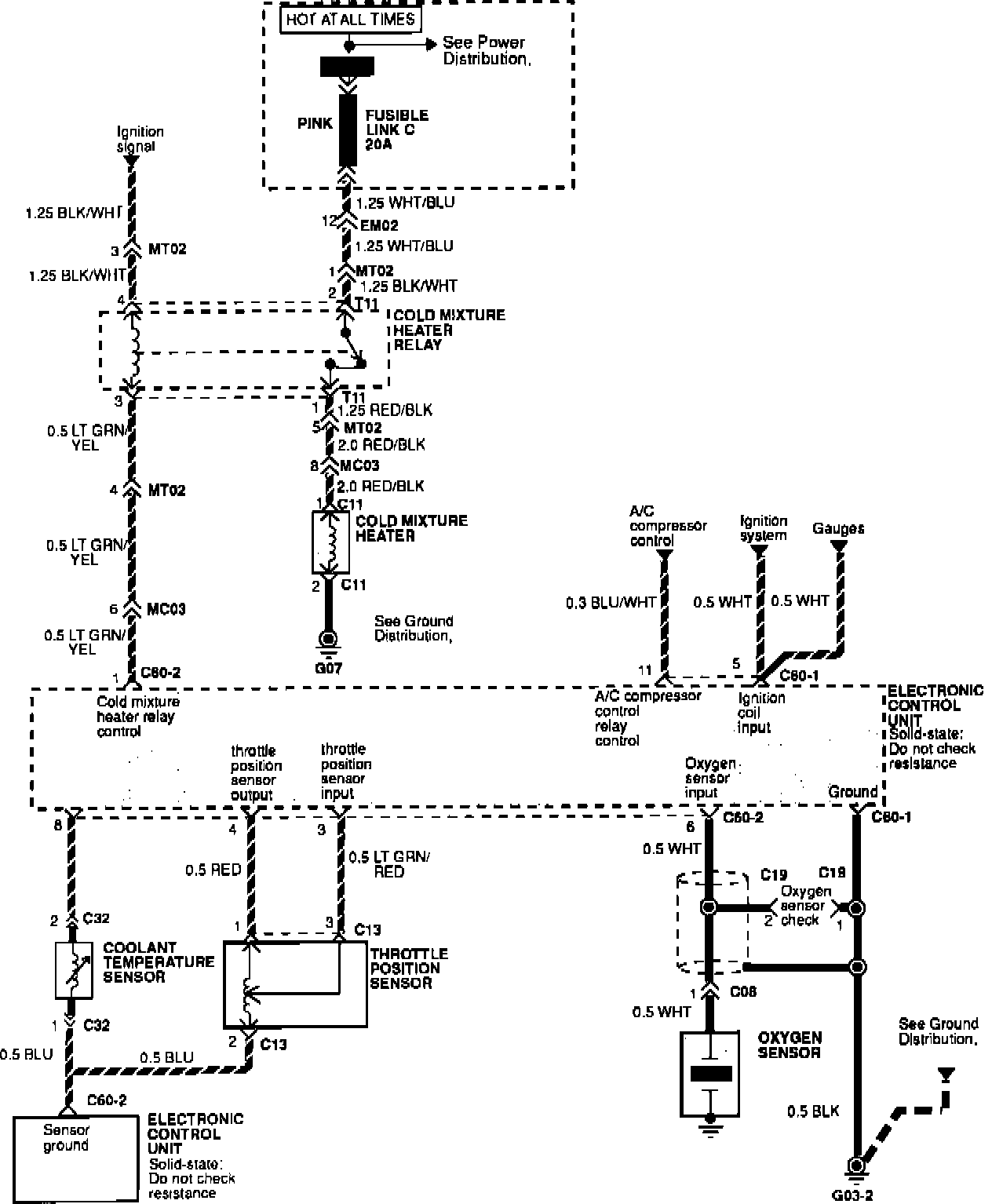

Engine Management:



Engine Management:



Engine Management:



Engine Management:



Engine Management:
