Home
>>
Hyundai
>>
1992
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Joint Distribution
>>
E01-3
E01-3

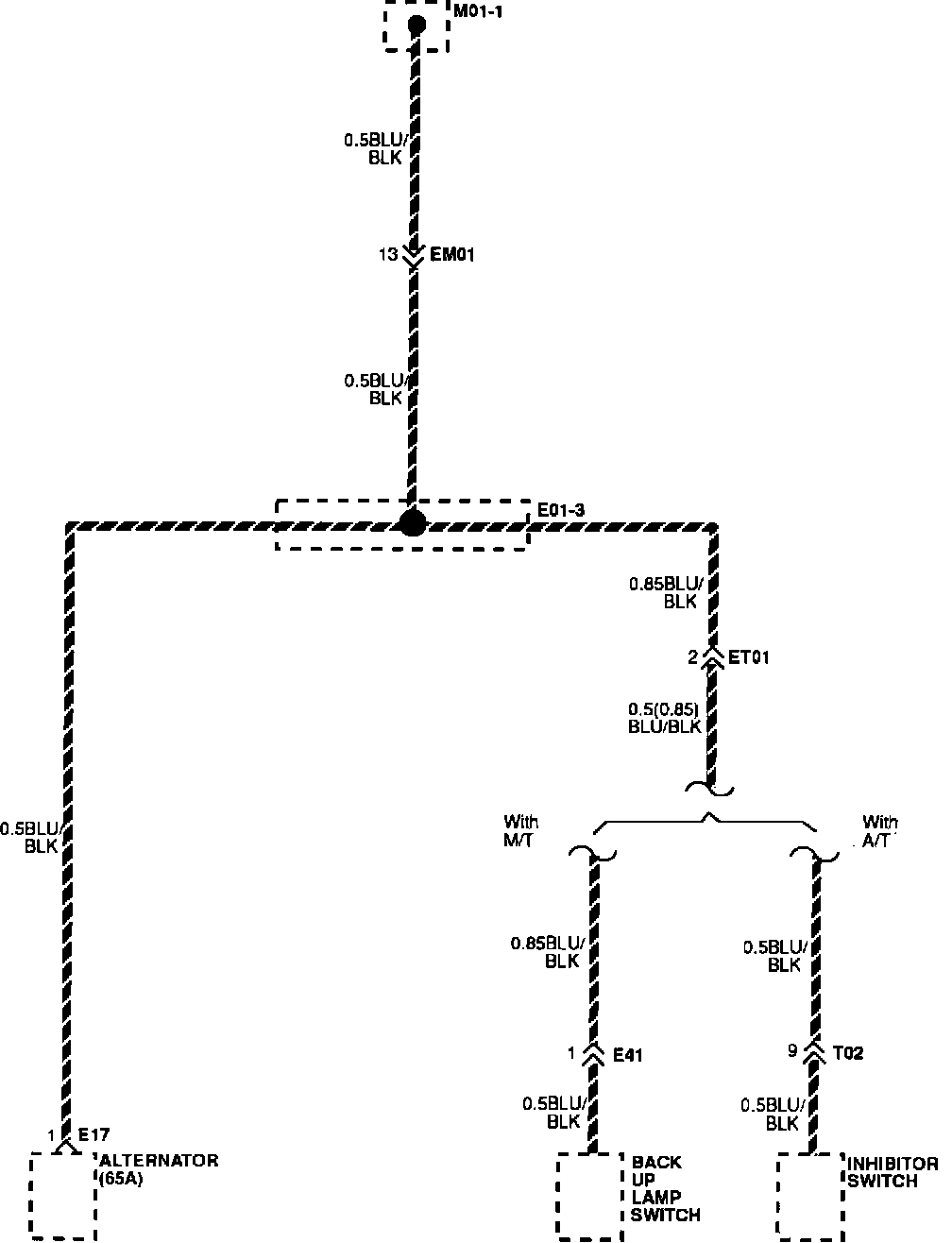

Joint Distribution: E01-3:
