Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Main Harness
Main Harness
Harness Routing: Main:

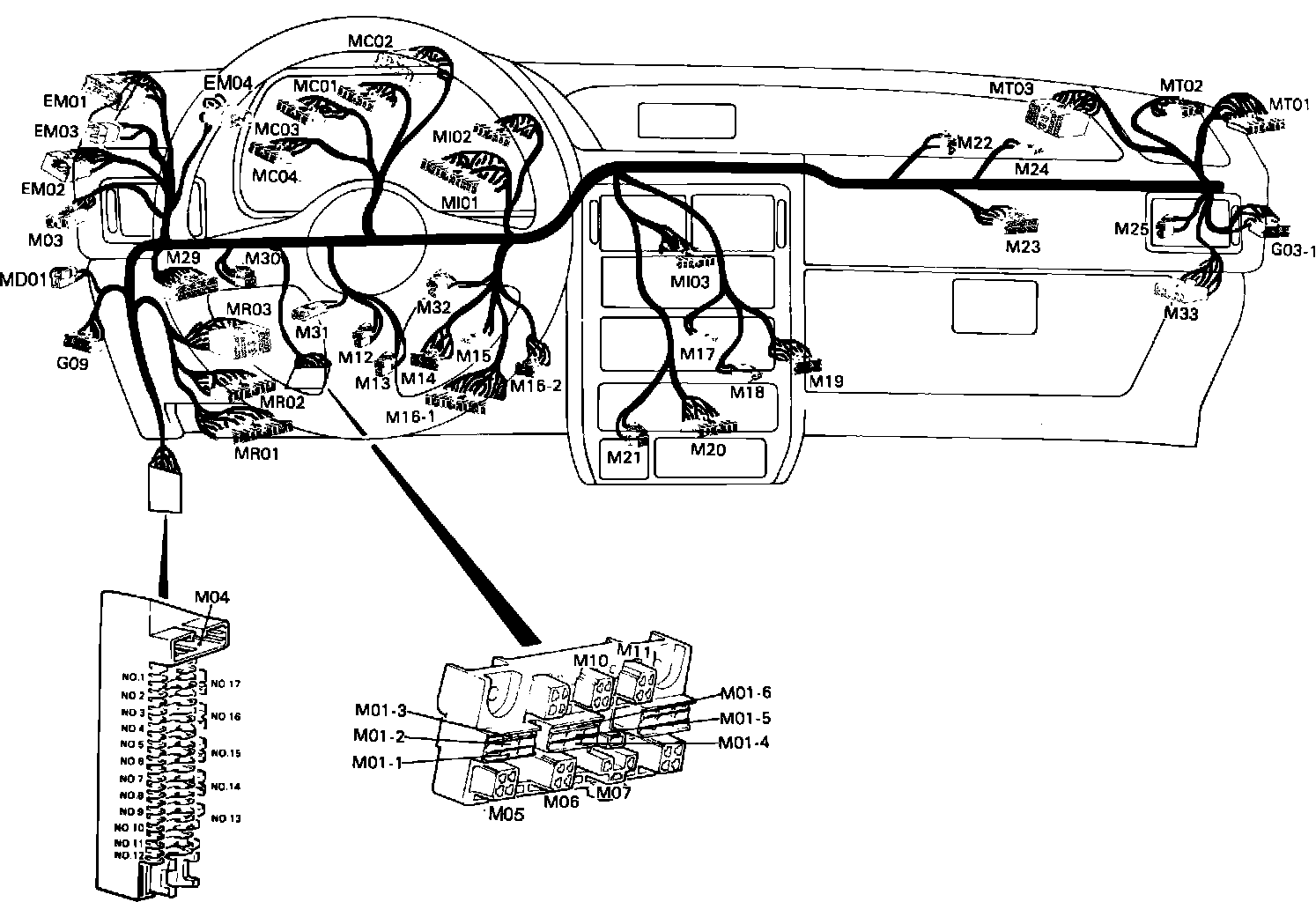

Harness Layout
Harness Routing: Main:

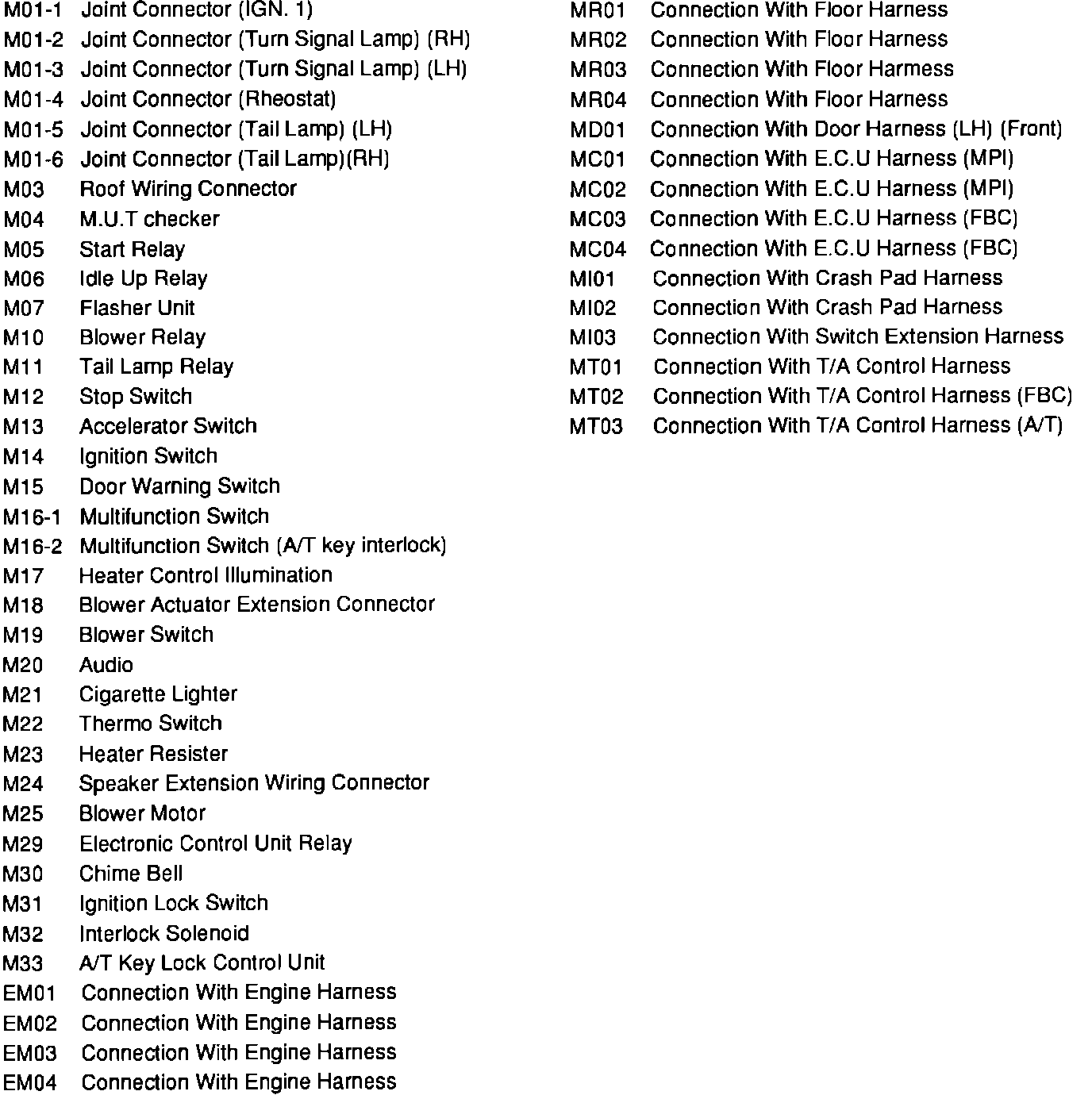

Connector Identification
