Lower Crash Pad Center Facia Panel - Modification

Group: TRIM
Number: 93-80-008
Date: JUNE, 1993
Model: 1992 EXCEL

Subject
LOWER CRASH PAD CENTER FACIA PANEL MODIFICATION

DESCRIPTION

The center air vent duct assembly and lower crash pad center facia panel were modified to simplify the use of the air vent knobs.

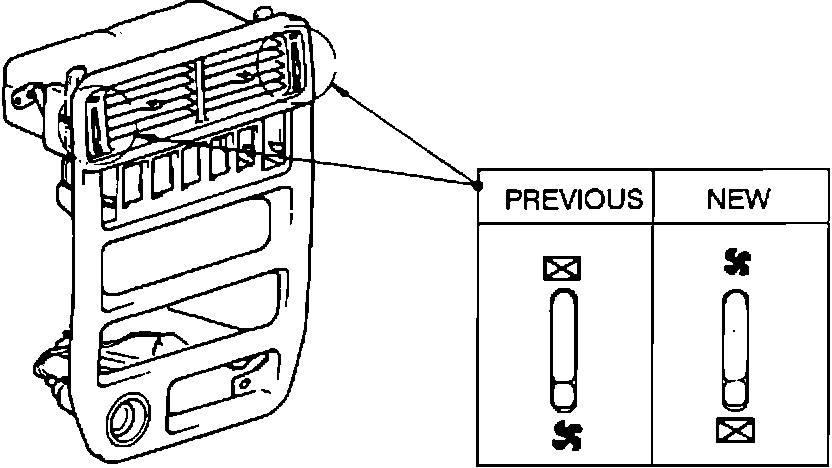

To make the operation of the center and outer air vent knobs consistent, the air vent routing and the indicator mark for the center facia panel have been changed.

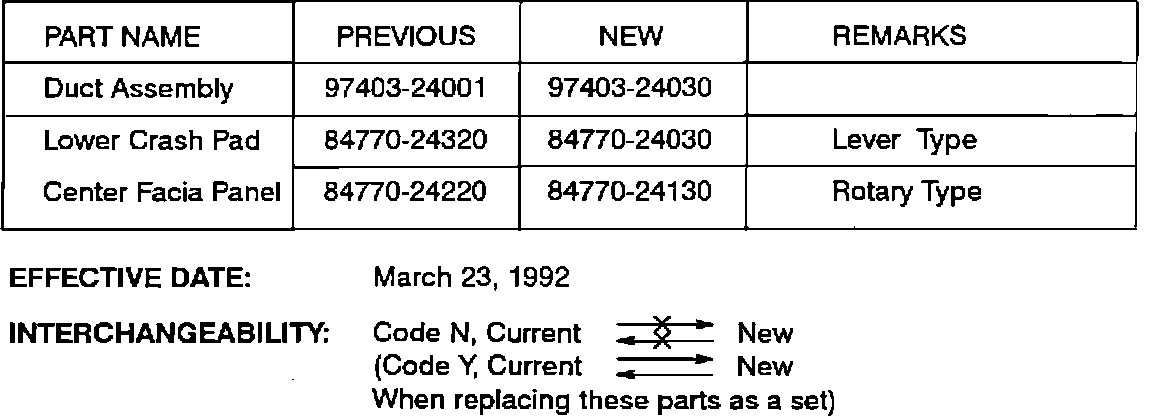

PART INFORMATION
