Home >> Hyundai >> 1992 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams

Electrical Diagrams

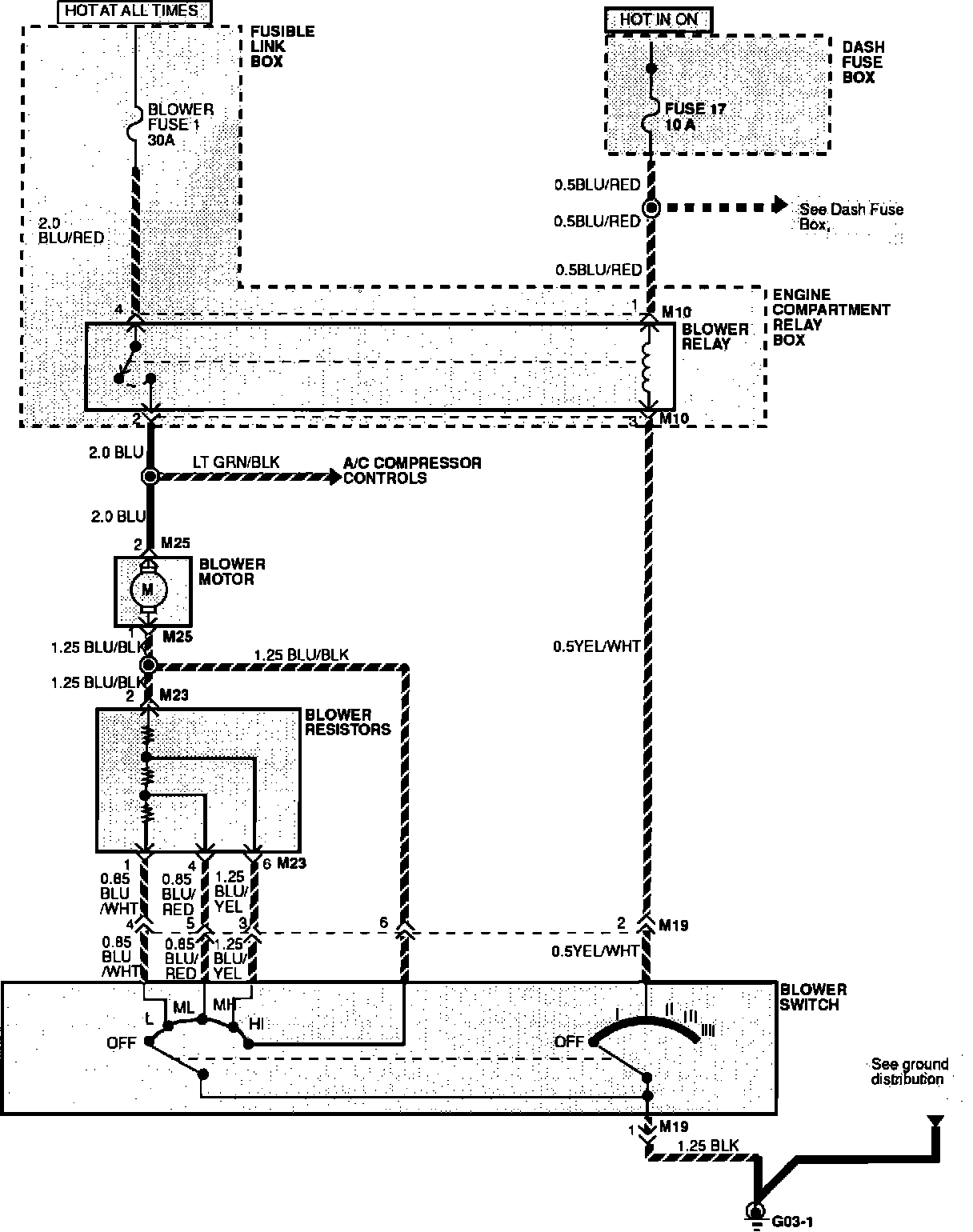

Blower Controls W/MPI:

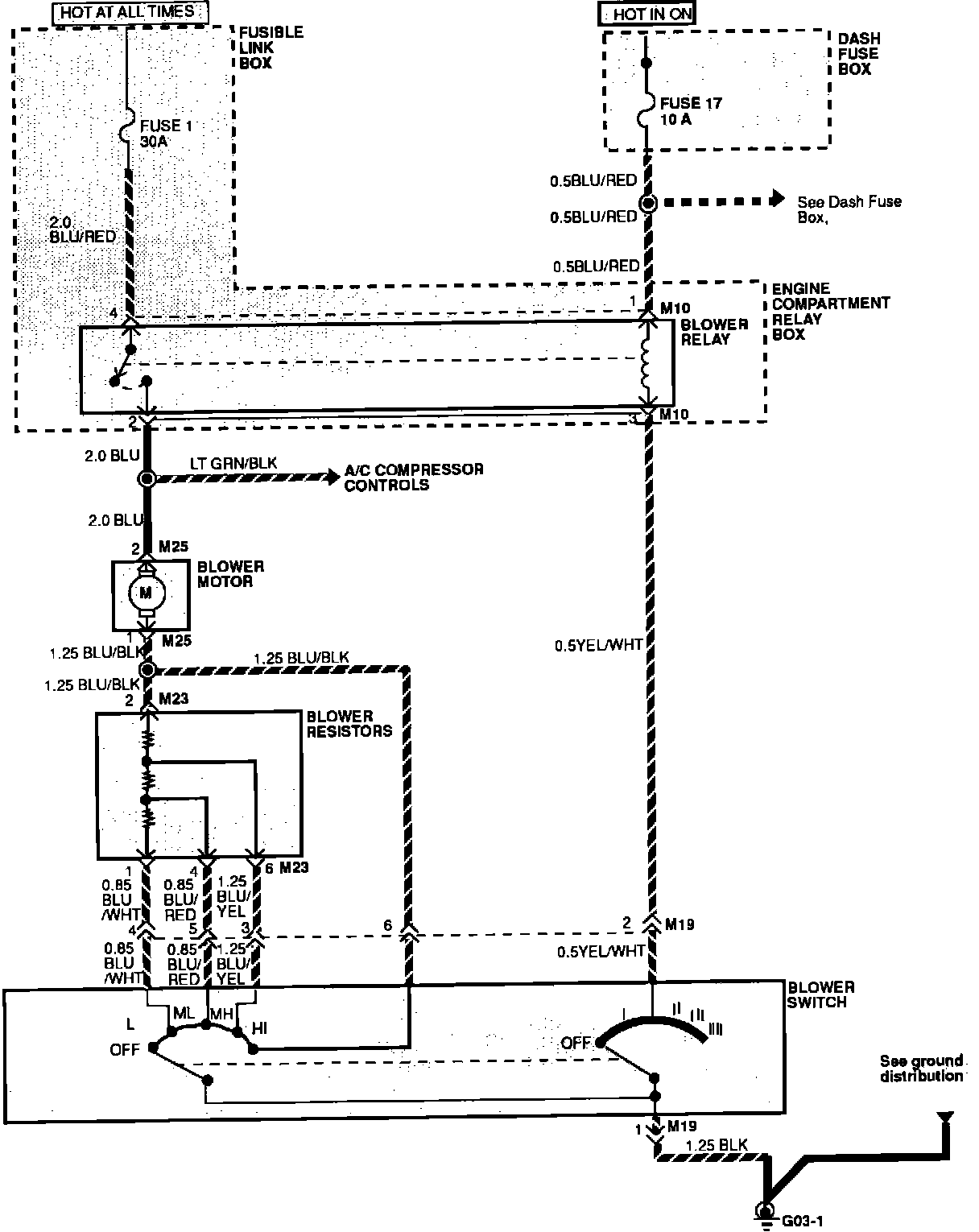

Blower Controls W/Feedback Carburetor:

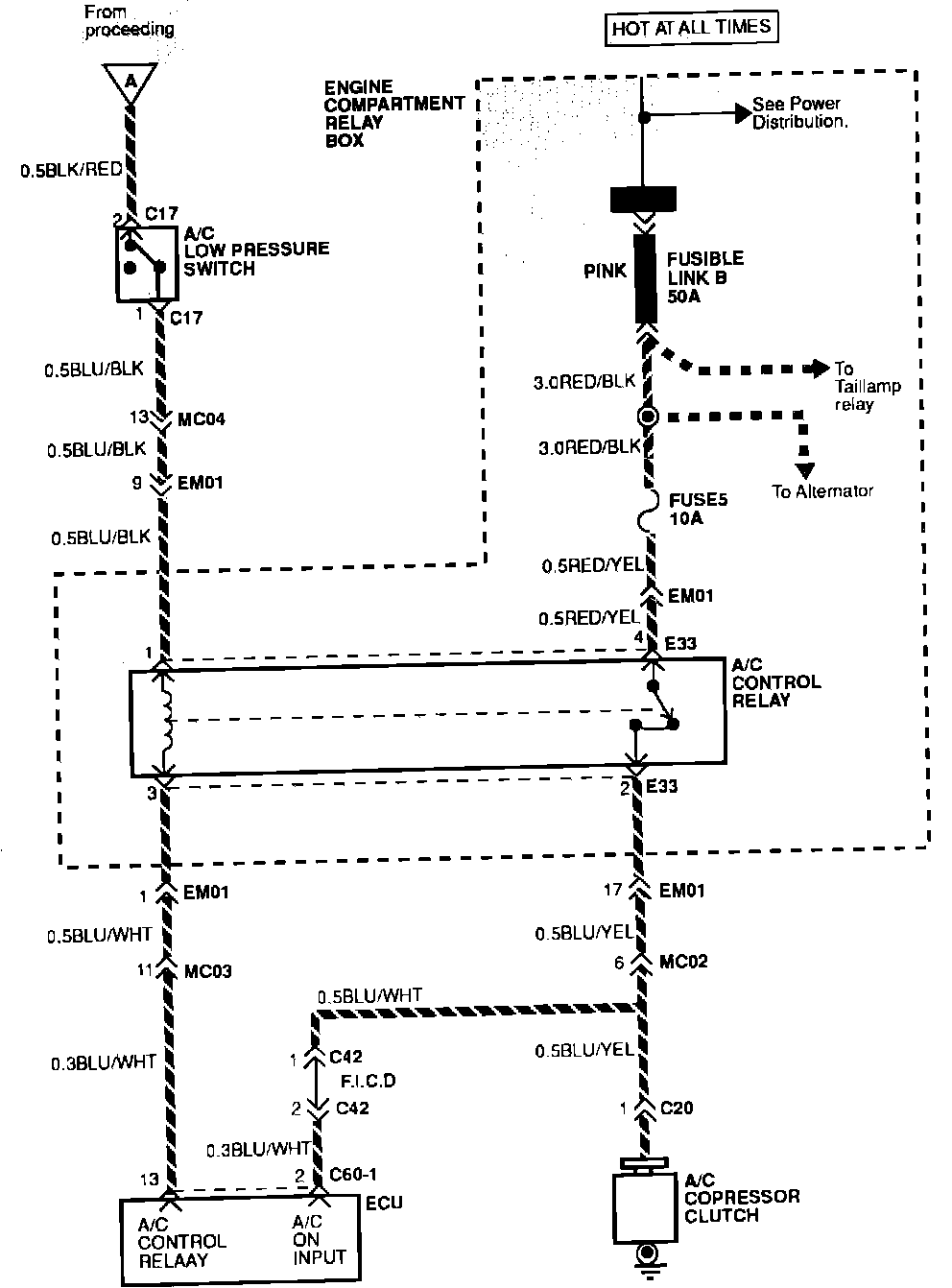

A/C Compressor Controls W/MPI:

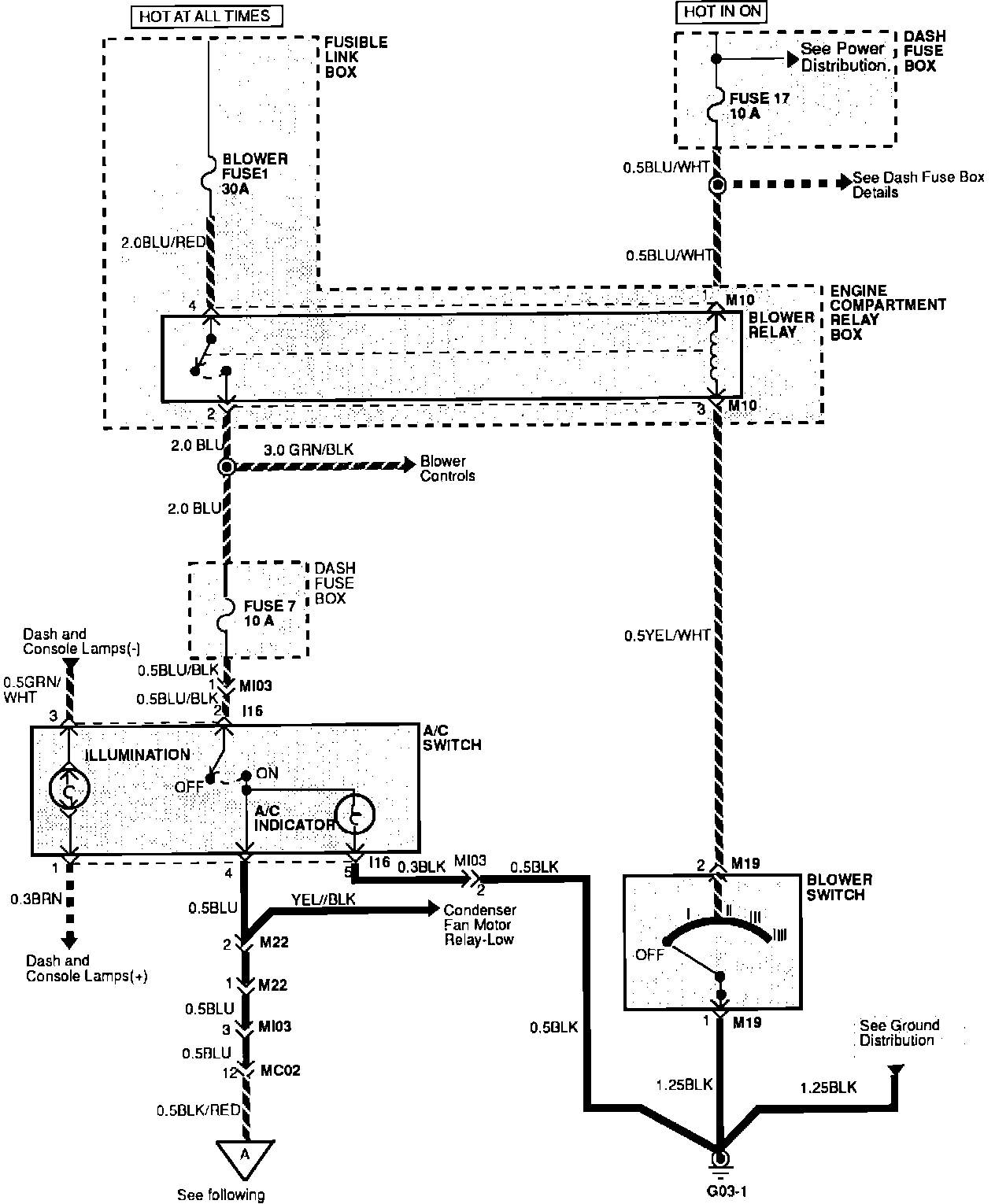

A/C Compressor Controls W/MPI:



A/C Compressor Controls W/Feedback Carburetor:



A/C Compressor Controls W/Feedback Carburetor:
