Home >> Hyundai >> 1992 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Joint Distribution >> M01-5

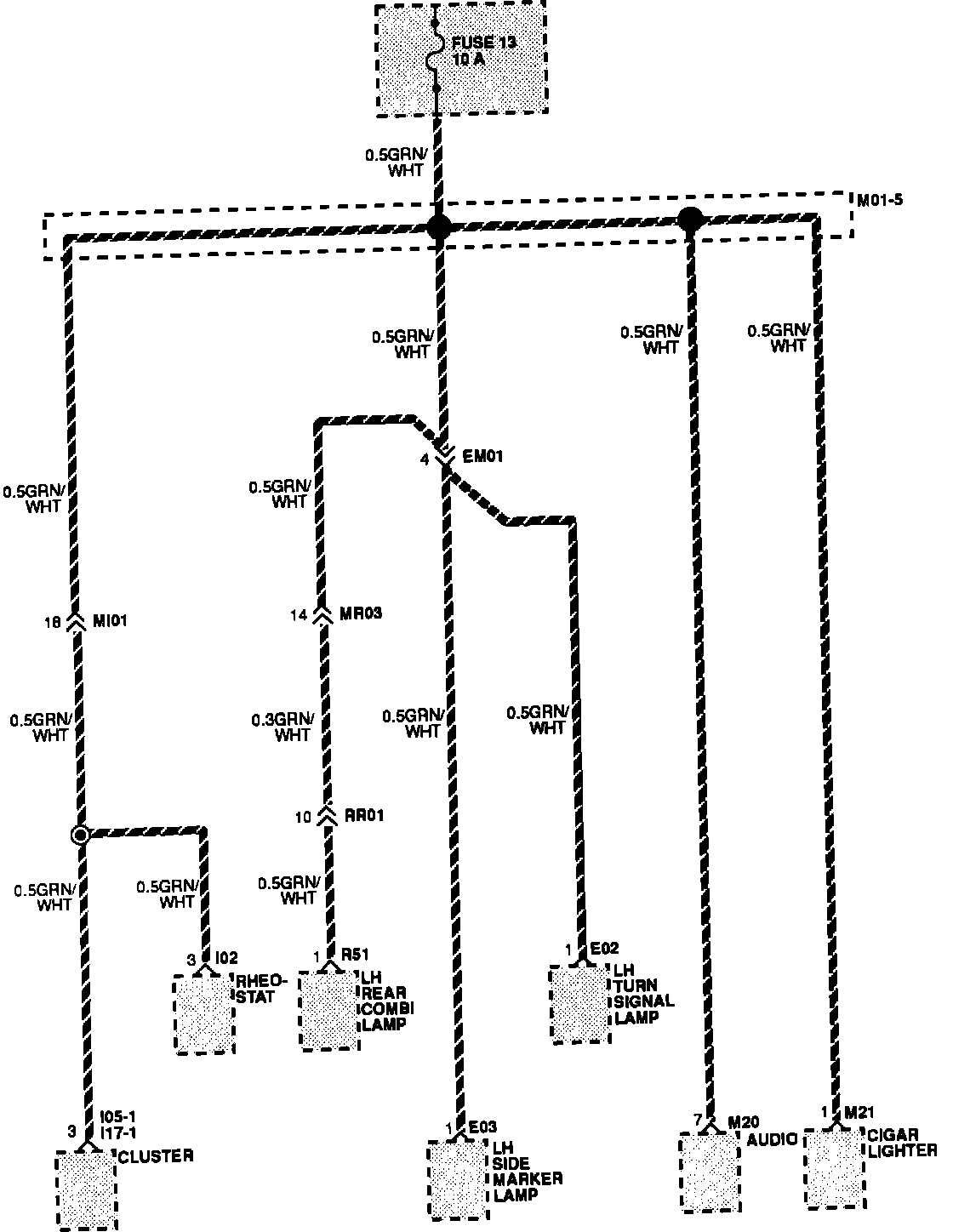

M01-5

Joint Distribution: M01-5:
