Home >> Hyundai >> 1992 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> Ground Connector G04-1

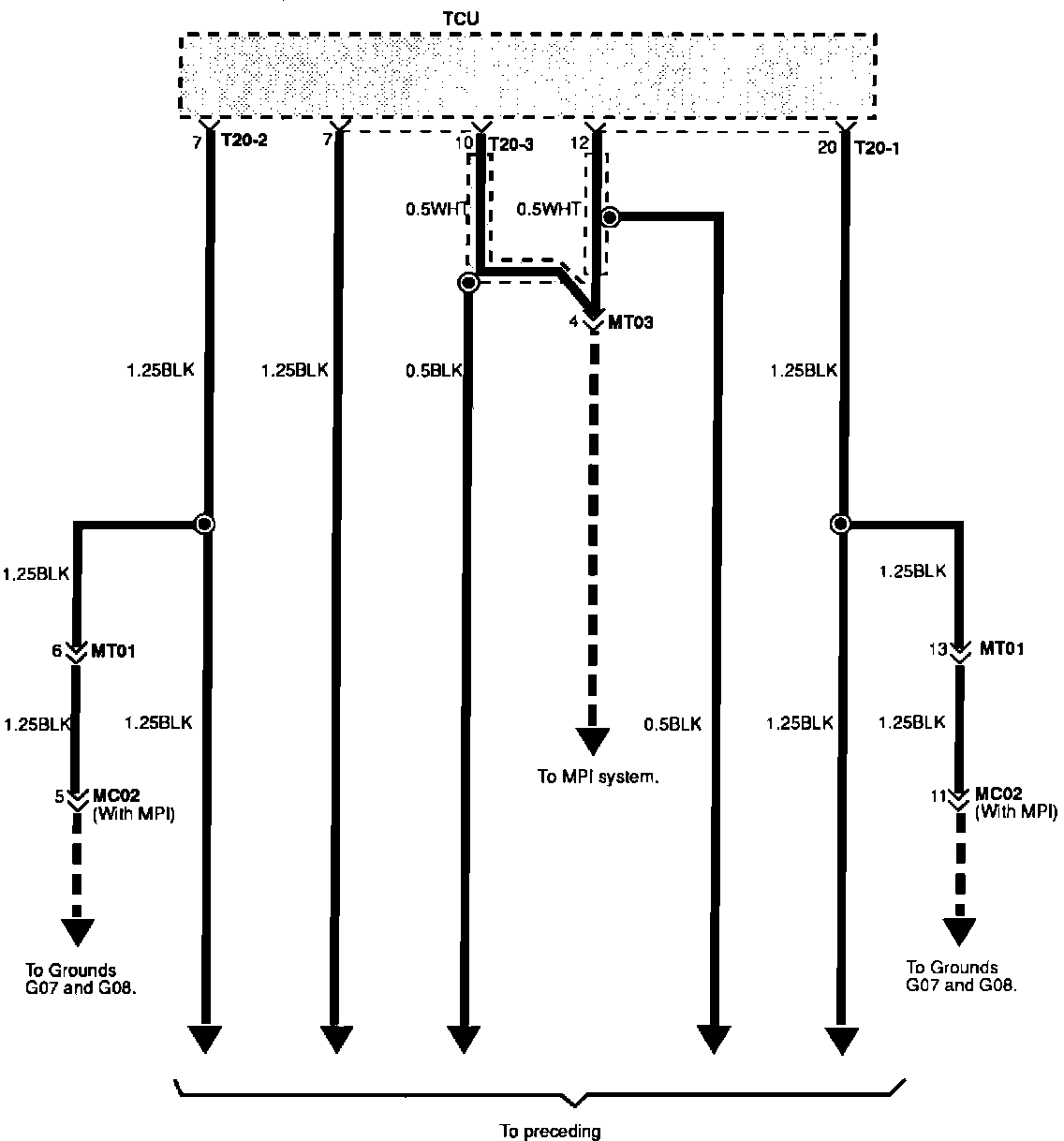

Ground Connector G04-1

Ground Distribution: G04 (Part 1 Of 2):
