System Diagram

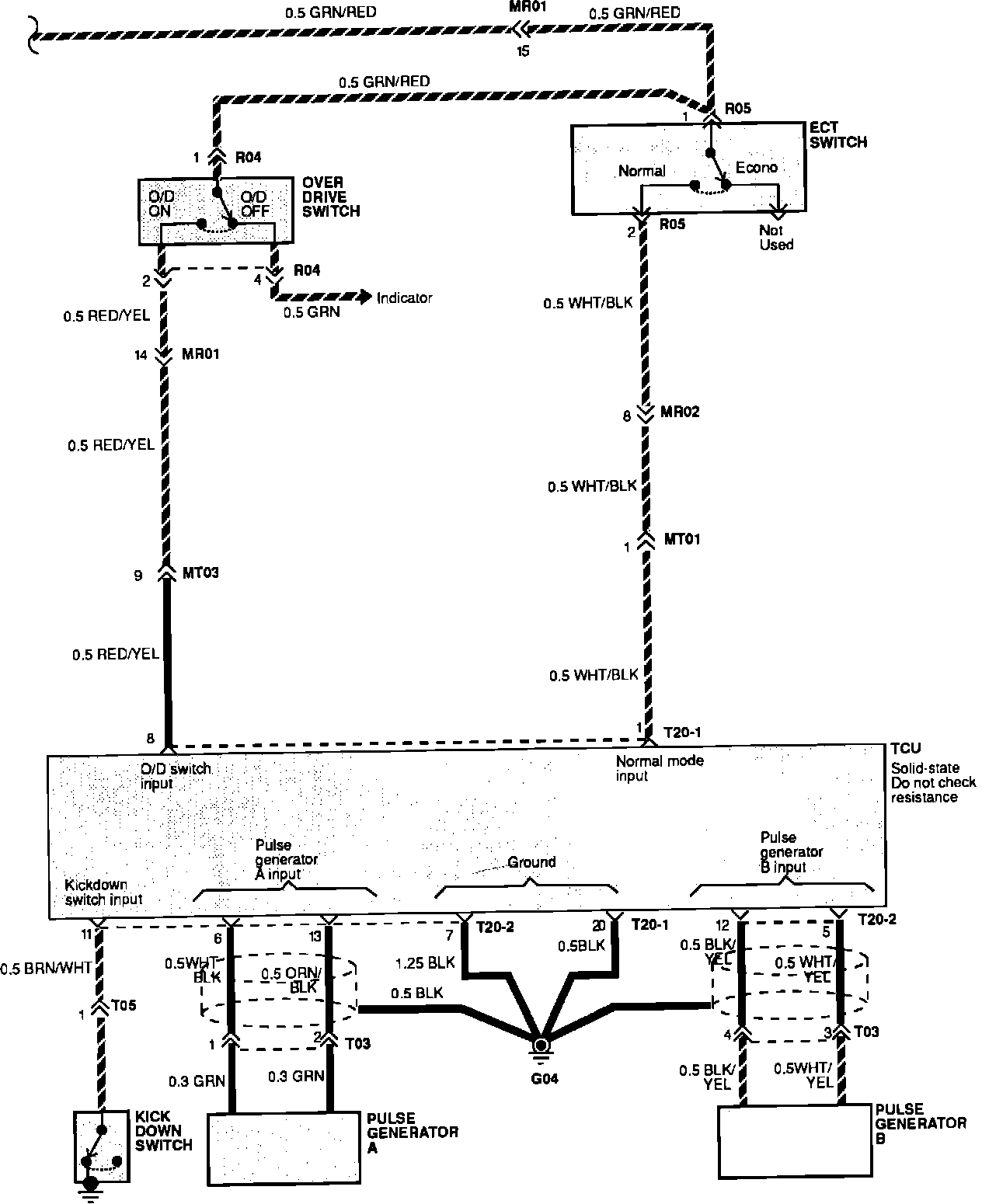

Electronic Lock-Up Controls:

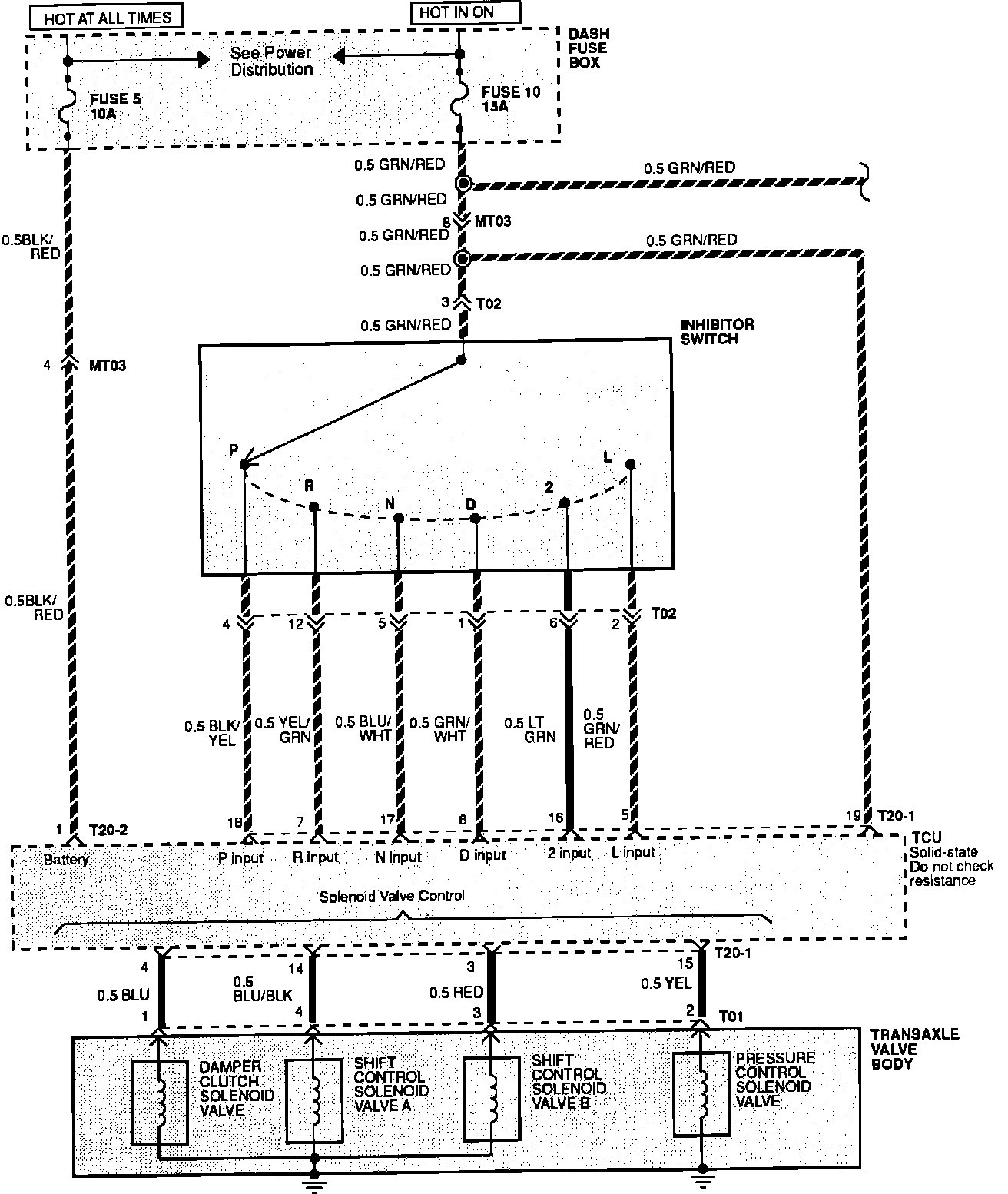

Electronic Lock-Up Controls:

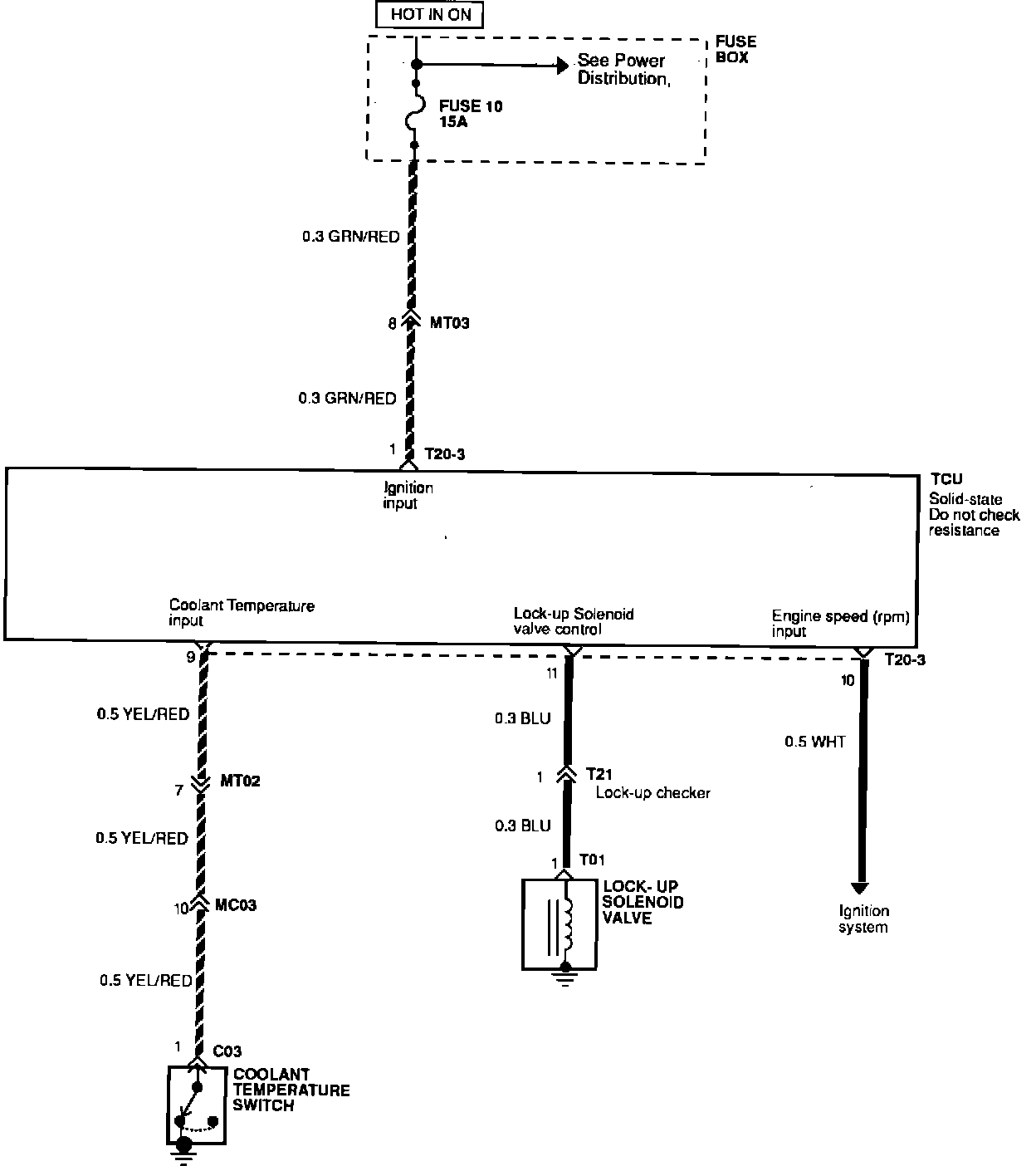

Electronic Lock-Up Controls:



Electronic Lock-Up Controls:



Electronic Lock-Up Controls:
