Hyundai
>>
1992
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
R23-2 - R66
R23-2 - R66

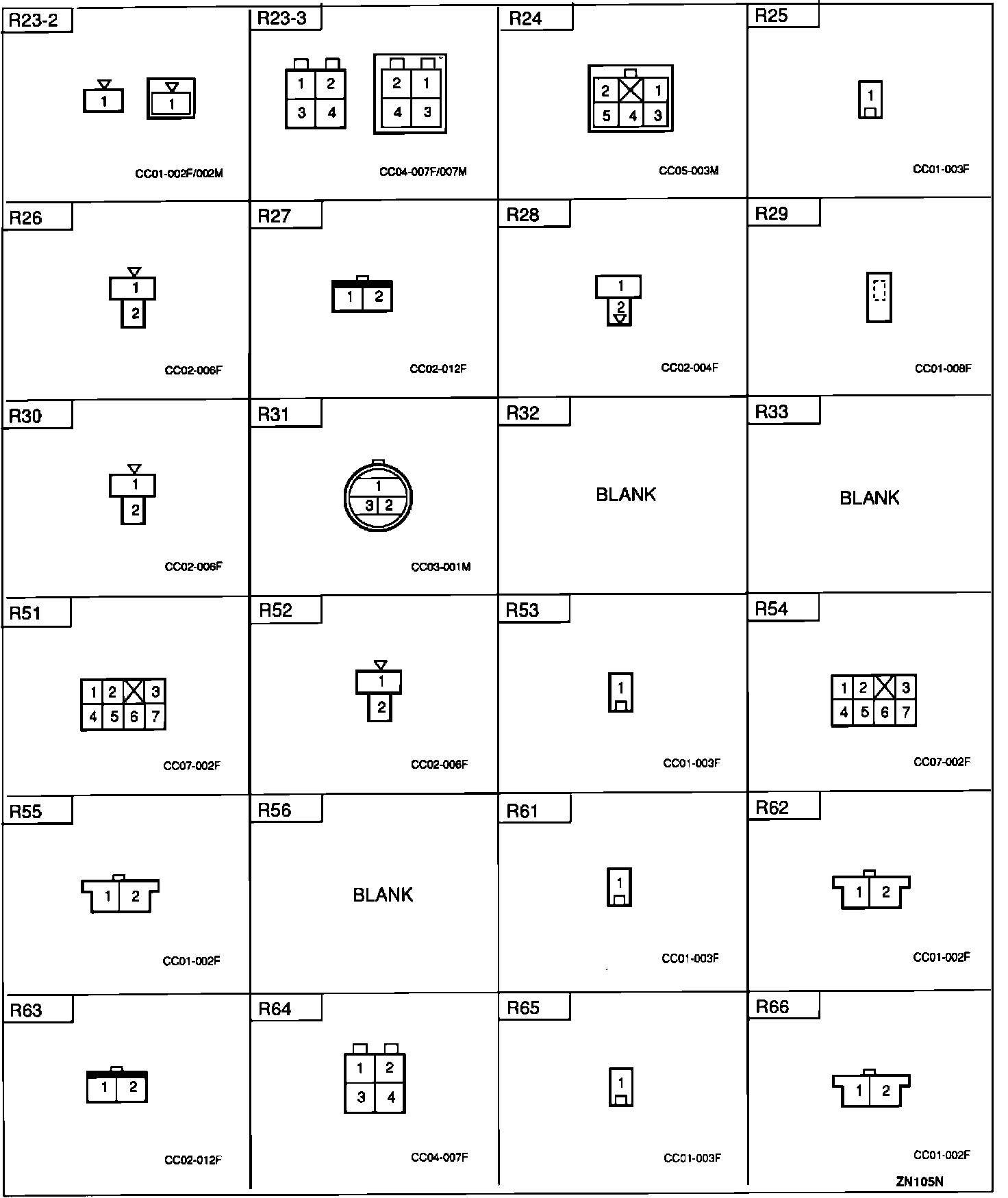

Connector Identification: R23-2 Thru R66:
