Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C25 - C50-3
C25 - C50-3

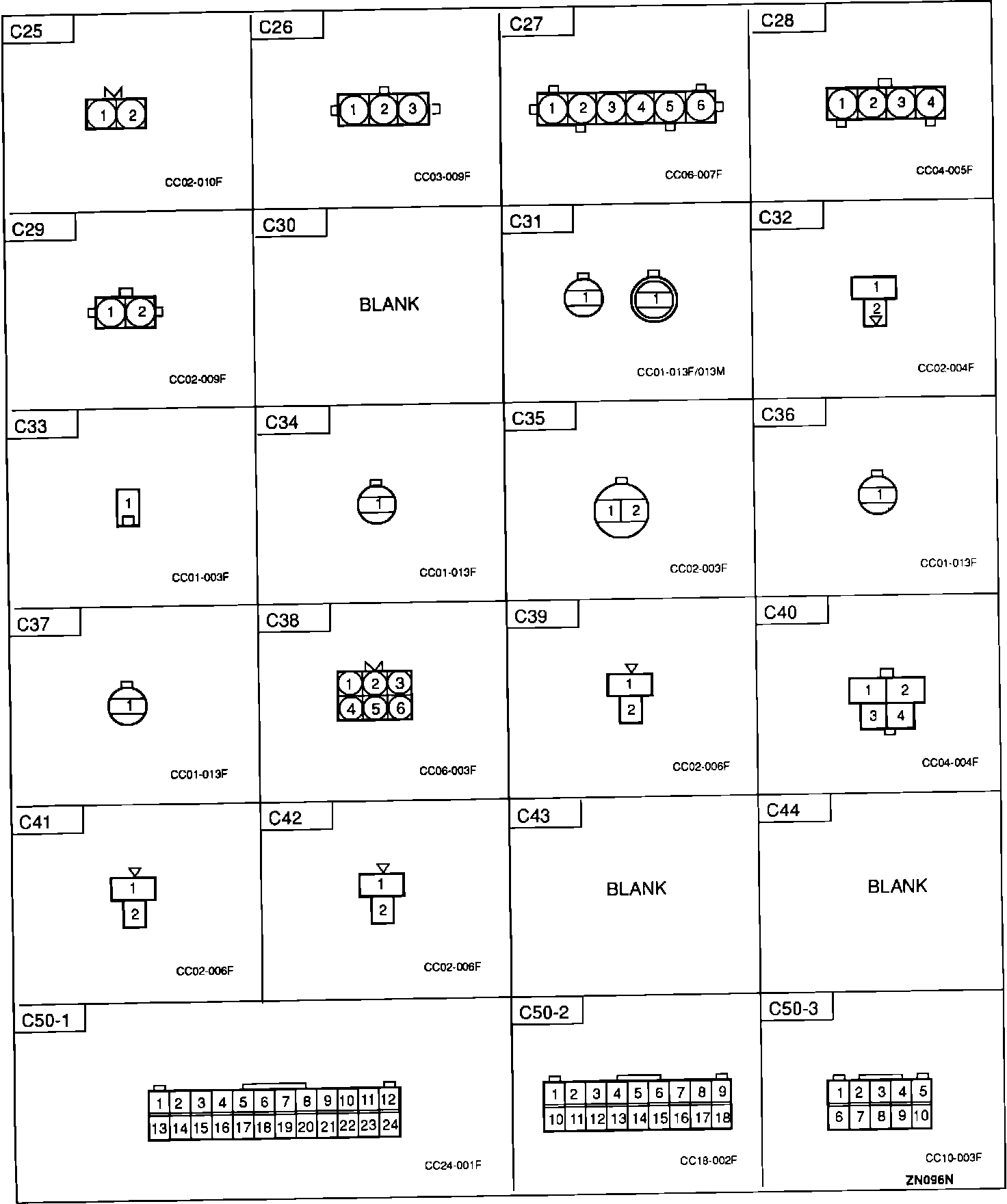

Connector Identification: C25 Thru C50-3:
