Dashboard / Instrument Panel: Service and Repair

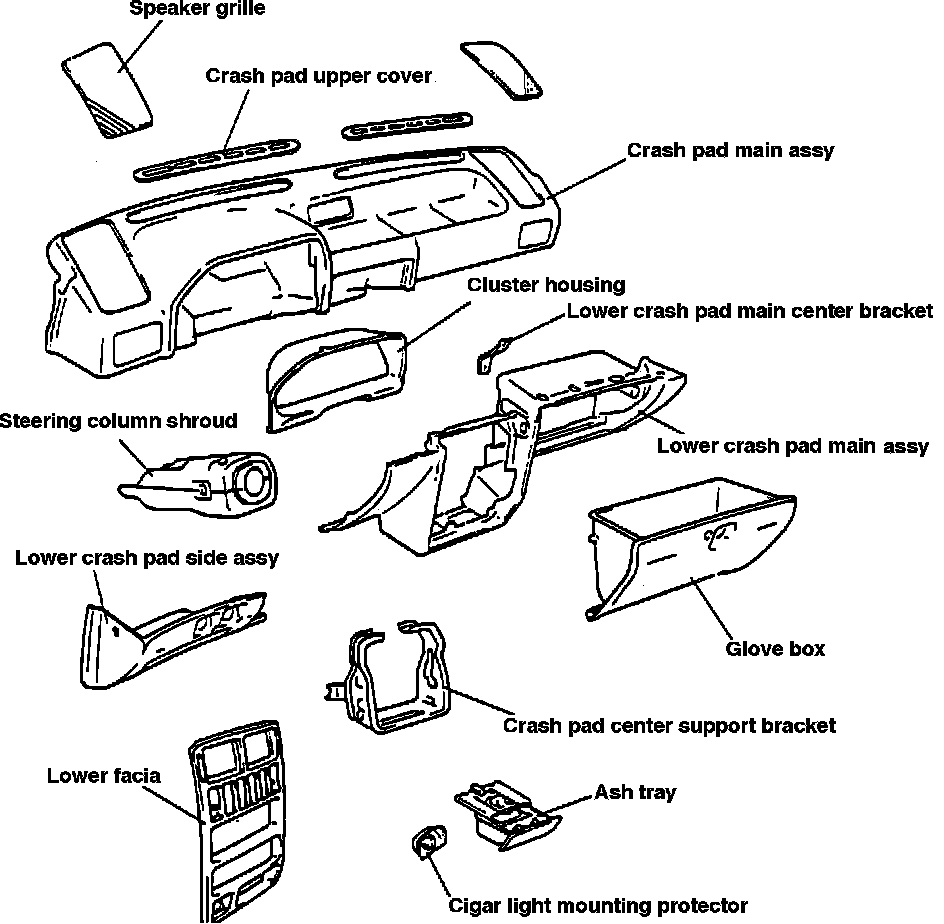

Fig. 8 Exploded View Of Dash Panel:

Fig. 9 Steering Column Lower/Upper Shroud:

Fig. 10 Main Dash Panel:

1. Remove steering wheel.
2. Remove three steering column lower and upper shroud retaining screws, then the upper and lower shrouds, Fig. 8.
3. Remove hood release handle mounting screws.
4. Remove lower fascia assembly, radio and cassette player, then disconnect radio electrical connectors, Fig. 9.
5. Remove left side lower dash panel.
6. Remove glove box, then the main lower dash panel.
7. Remove cluster assembly retaining screws, then pull outward and disconnect electrical connectors.
8. Remove heater control assembly, two front speaker grilles, then the front speakers.
9. Remove the main dash panel, Fig. 10.
10. Reverse procedure to install.
