Brake Pedal Support Member and Pedal - Changes

Group:
CHASSIS


Number:
92-50-008


Date:
NOVEMBER, 1992


Model:
ELANTRA



Subject:

BRAKE PEDAL SUPPORT MEMBER ASSEMBLY



DESCRIPTION

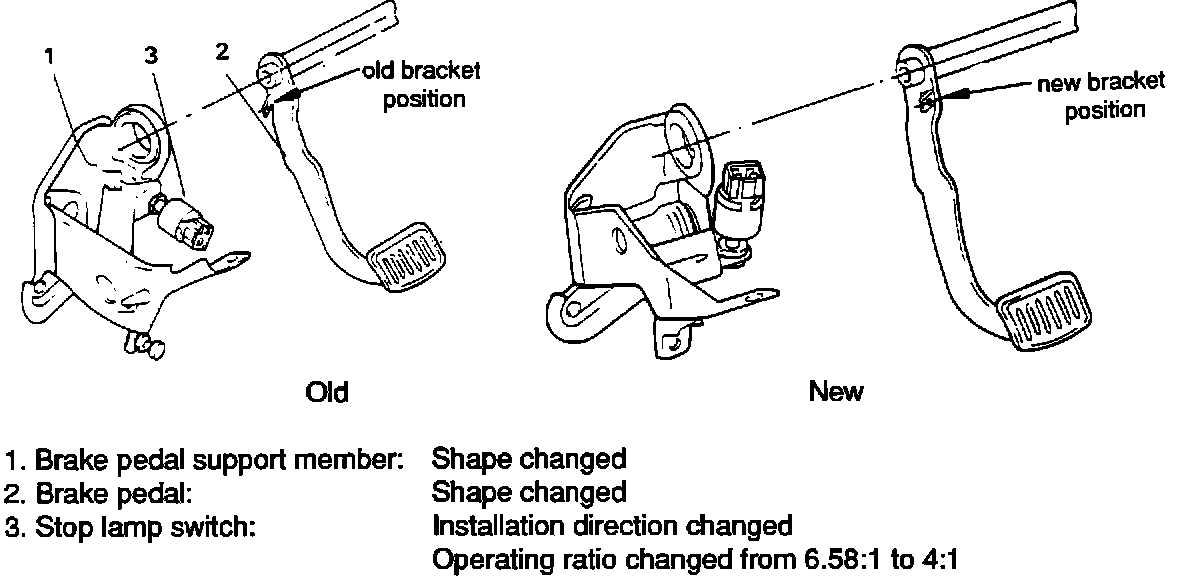

The brake pedal support member and the brake pedal have been changed in automatic transaxle equipped vehicles to improve serviceability and to change the position of the stop lamp switch.

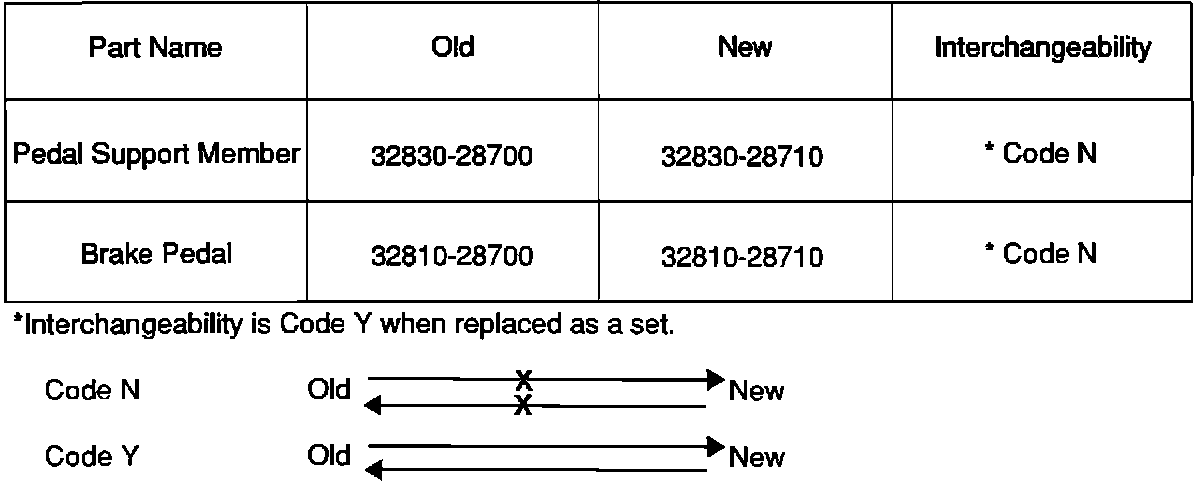

PARTS INFORMATION



EFFECTIVE DATE

(10/01/91) KMHJF22R2MU098115: ATM equipped vehicles (with cruise control)

(10/05/91) KMHJF31JPMU116769: Automatic transaxle equipped vehicles (w/out cruise control)
