Home
>>
Hyundai
>>
1992
>>
Elantra L4-1595cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
System Diagram
System Diagram

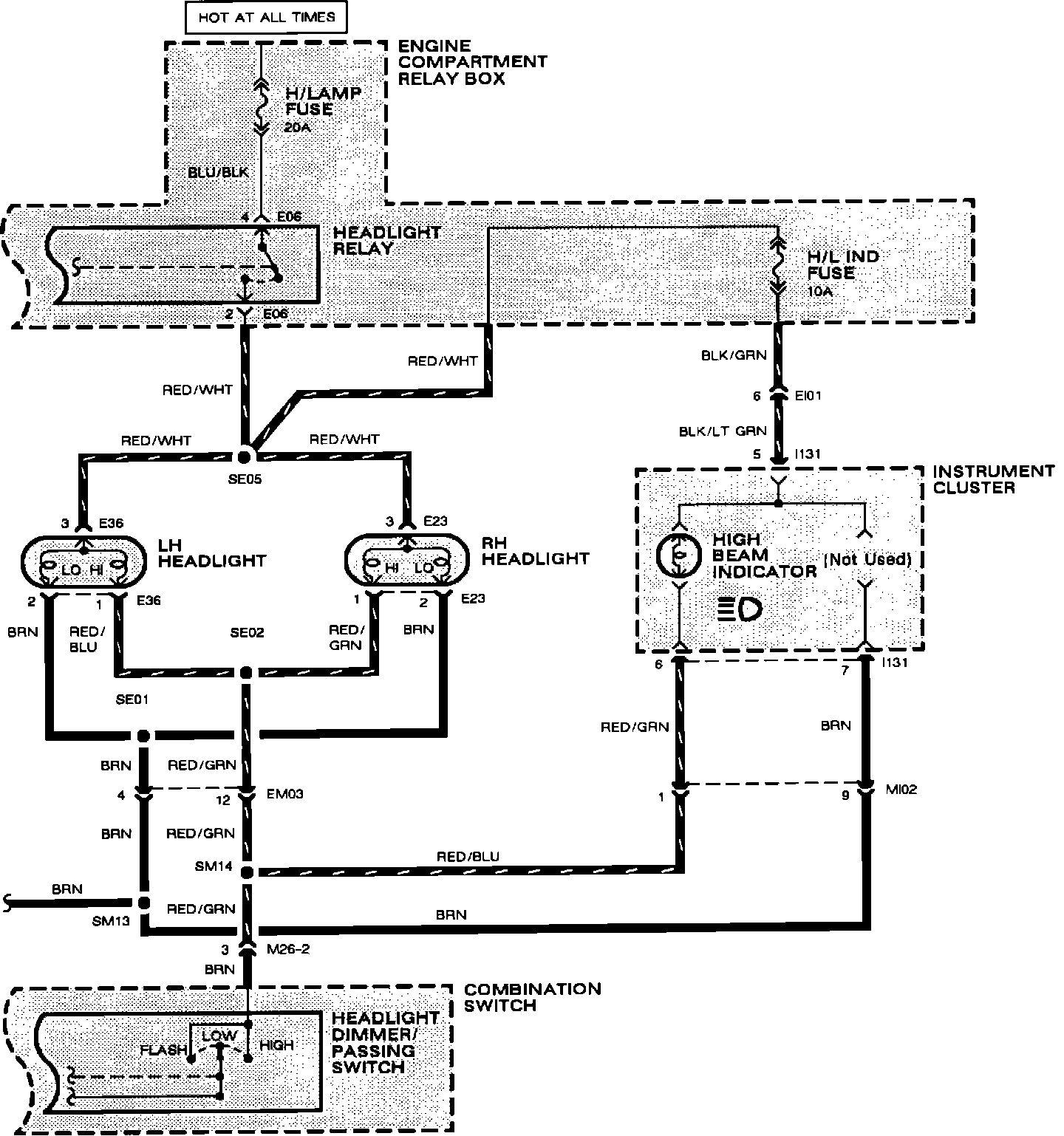

Headlamps (USA):
Headlamps (USA):
