Assembly

Valve Installation Positions

ASSEMBLY

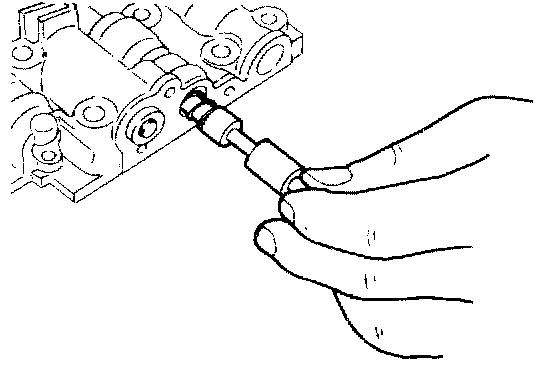

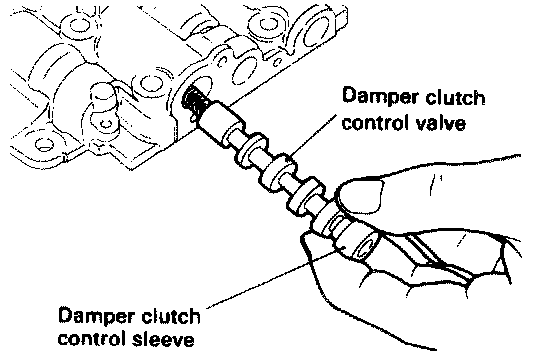

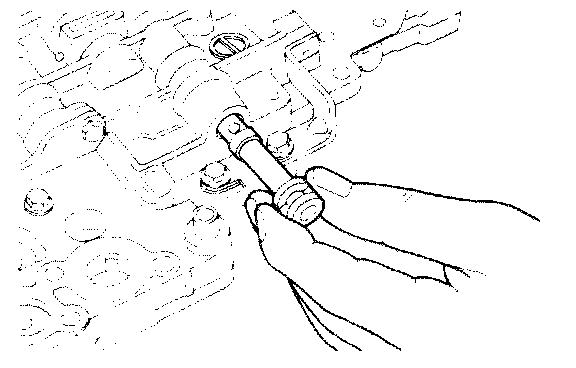

1. Install in the lower valve body, the damper clutch control spring, damper clutch control valve, and the damper clutch control sleeve.

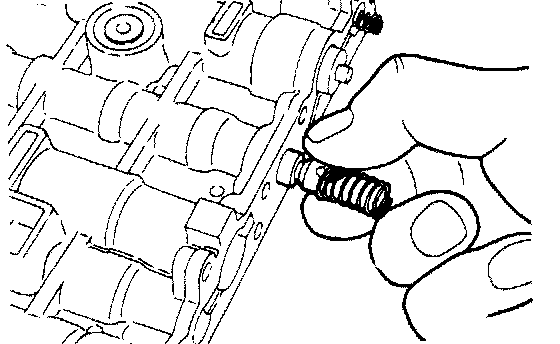

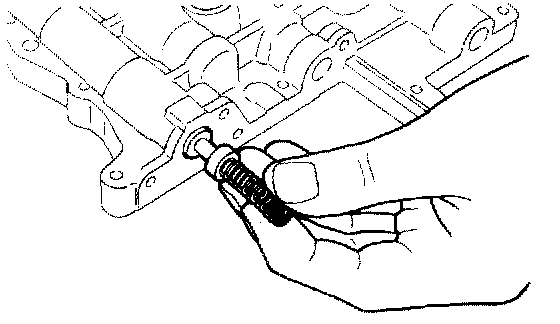

2. Install the N-R control/accumulator spring and the N-R control/accumulator valve.





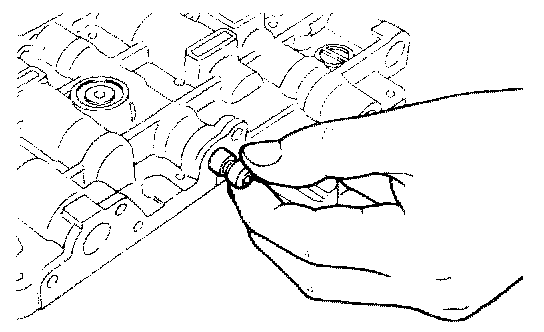

3. Install the reducing valve.





4. Install the reducing spring, adjustment screw, and end cover. Tighten the bolts to the specified torque.

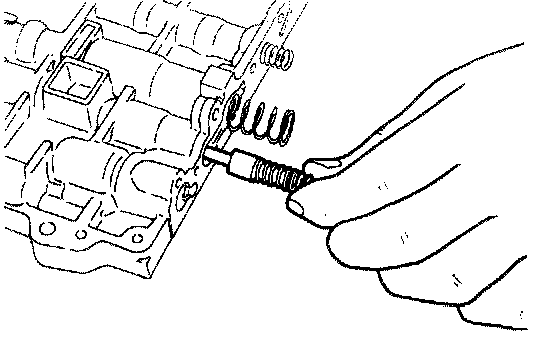

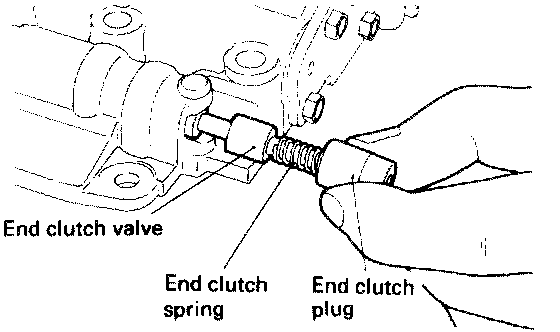

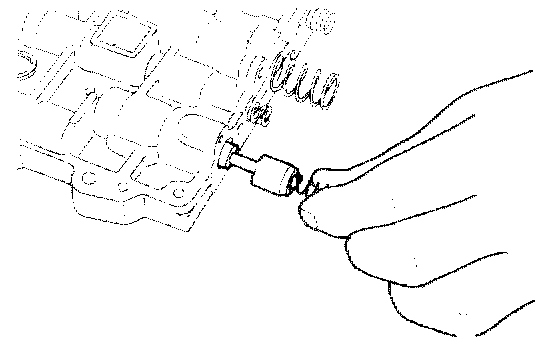

5. Install the end clutch valve, end clutch spring, and end clutch plug.





6. Install the stopper and secure it with the pin.





7. Install the 1-2 shift-control valve to the upper valve body.





8. Install the 1-2 shift-control plug.





9. Jnstall the 1~2 shift valve and 1-2 shift spring.





10. Install the rear end cover.

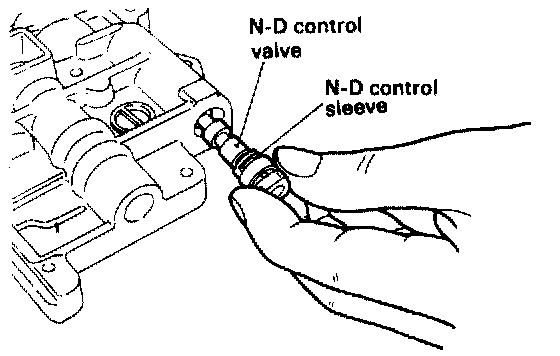

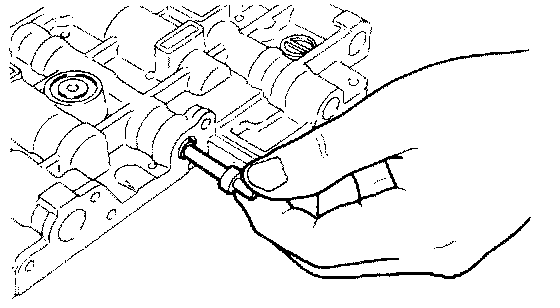

11. Install the N-D control valve and the N-D control sleeve.

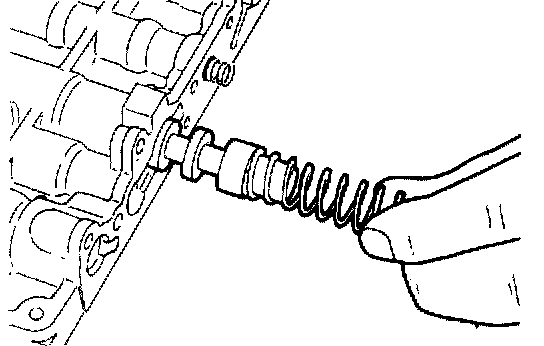

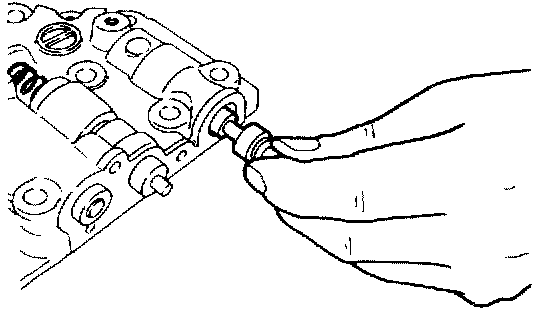

12. Install the 2-3/4-3 shift valve and the 2-3/4-3 shift spring.

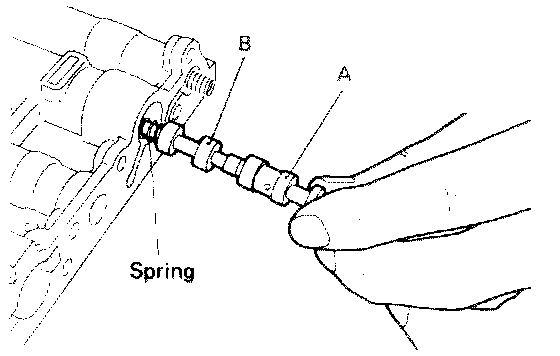

13. Install the rear clutch exhaust spring and rear clutch exhaust valves A and B





14. Install the shift-control valve and shift control spring.

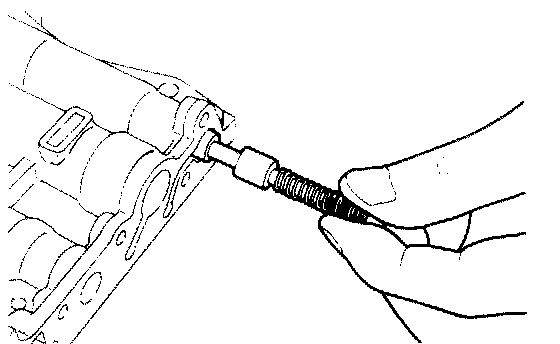

15. Install the regulator valve and regulator spring.





16. Install the torque converter control valve and torque ccnverter control spring.





17. Install the pressure control valve and pressure control spring.





18. Install the adjustment screw and front end cover. Tighten the bolts to the specified torque.

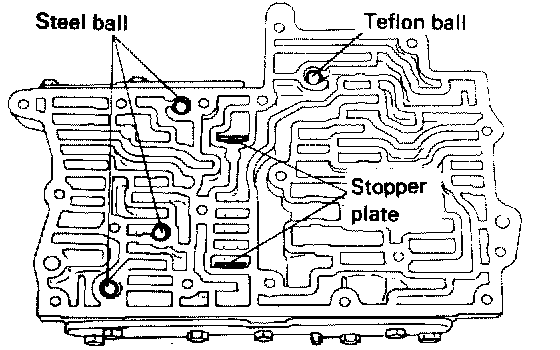

19. Install, in the upper valve body, the three steel balls the teflon ball, and the stopper plate.

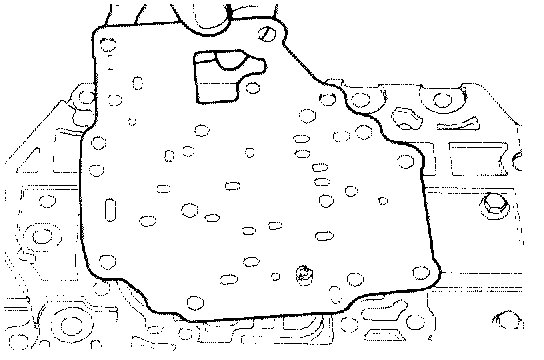

20. nstall the upper separating plate.





21. Install the block.

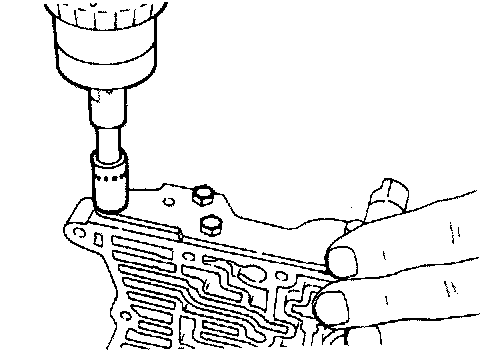

22. Install the special tool (09456-21000). Then, after securing the upper separating plate and the intermediate plate with the eight installation bolts, remove the special tool.

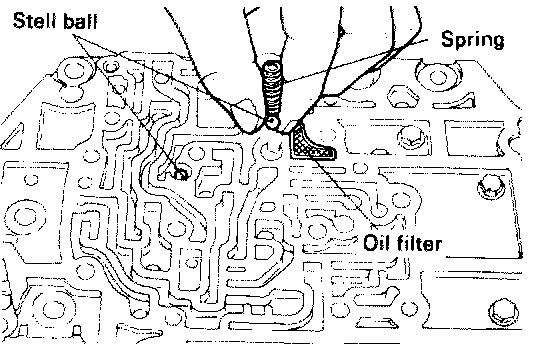

23. Install to the intermediate plate, the oil filter, the two steel balls, and the spring.

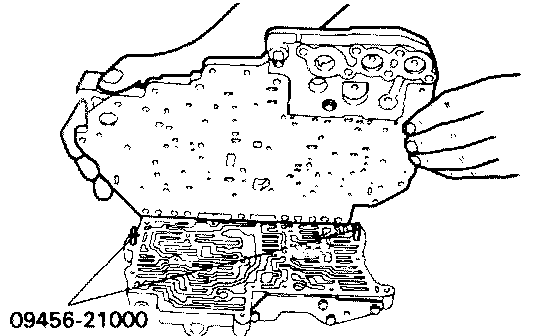

24. Install the special tool (09456-21000) to the intermediate plate.

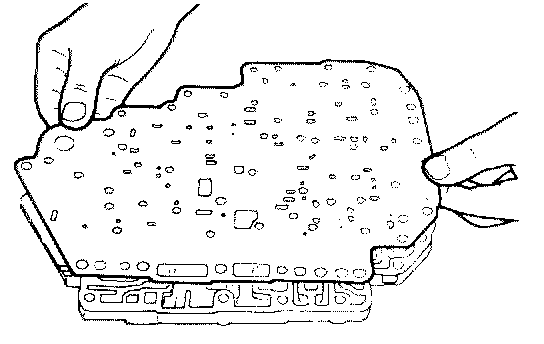

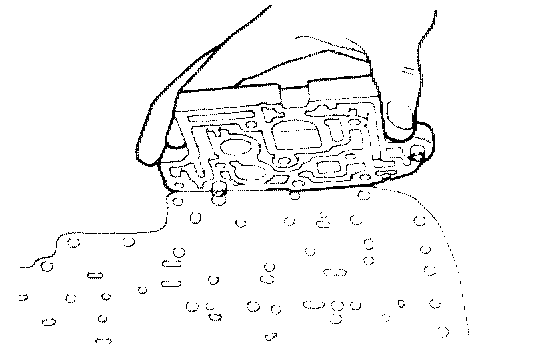

25. Install the separating plate.

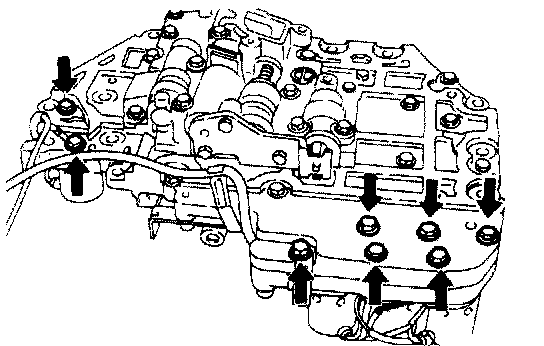

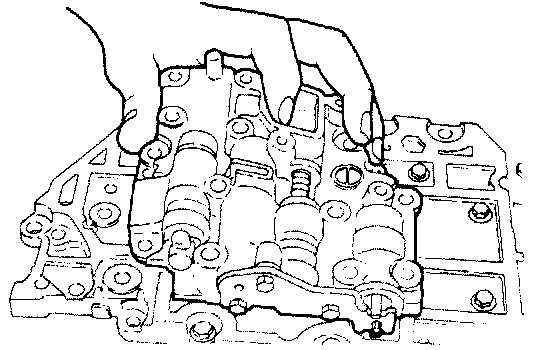

26. After securing the lower valve body using the 13 installation bolts, remove the special tool

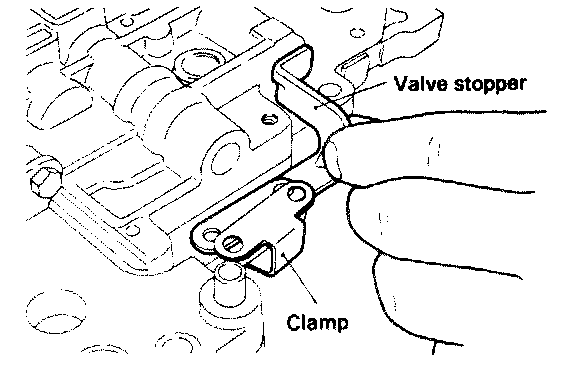

27. Install the valve stopper and clamp.





28. Install the manual valve.

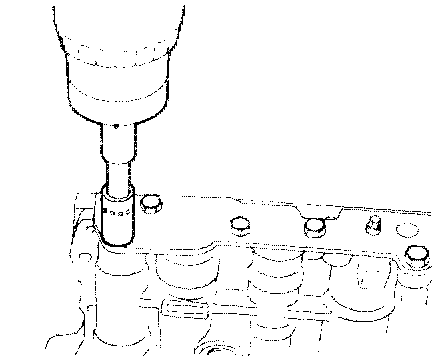

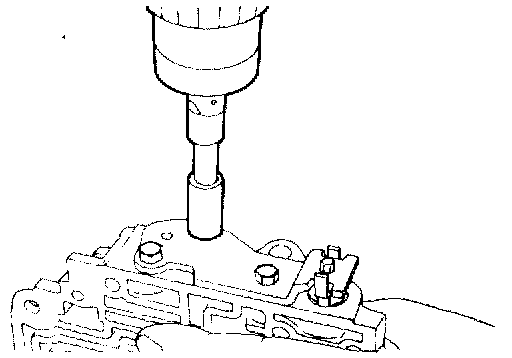

29. Secure the four solenoid valves using the installation bolts.





29. Secure the four solenoid valves using the installation bolts.
