Hyundai
>>
1991
>>
Scoupe L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>
E01-4
E01-4

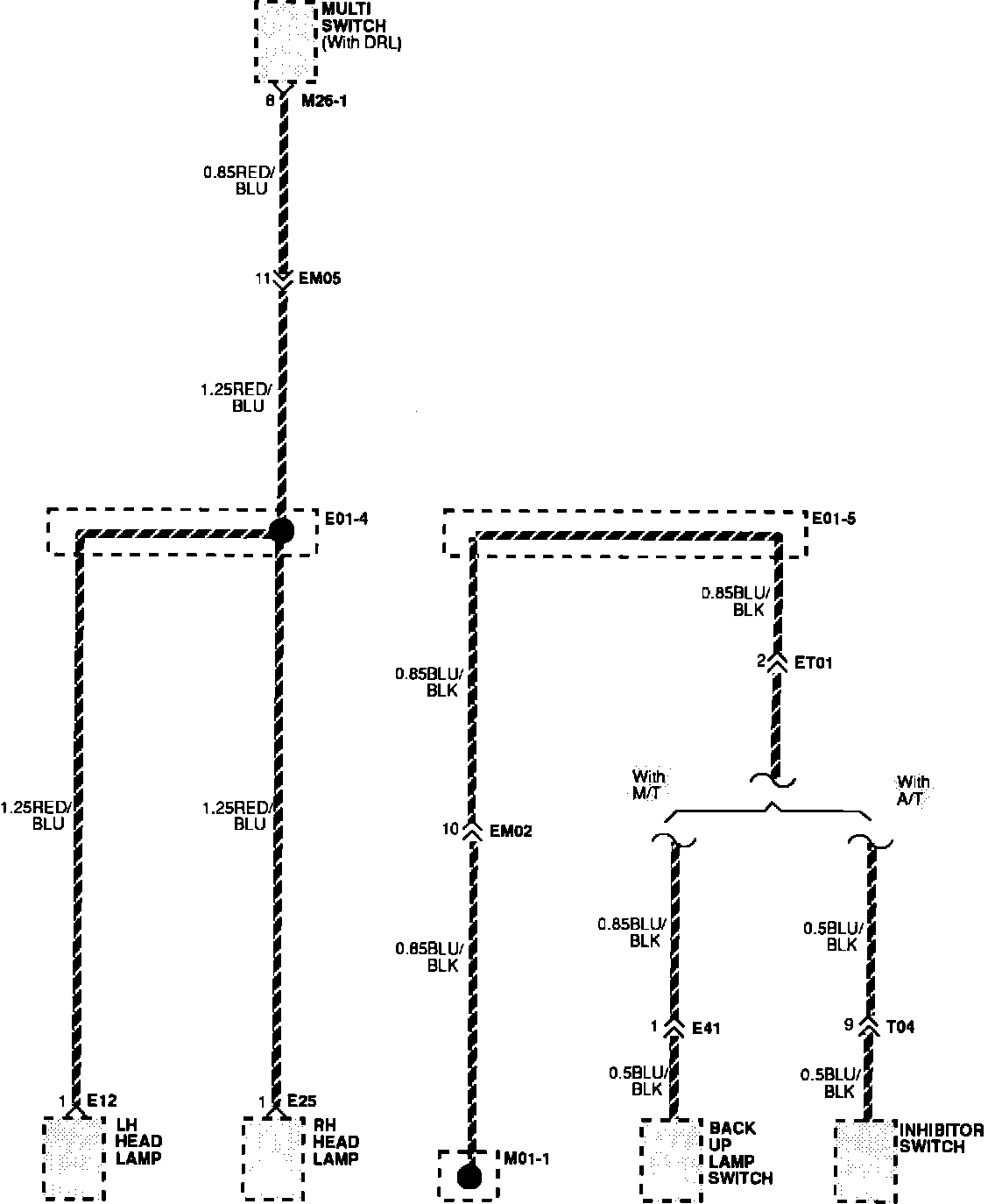

Joint Distribution. E01-4 & E01-5:
