Scoupe L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Locations
>>
E01-3
E01-3

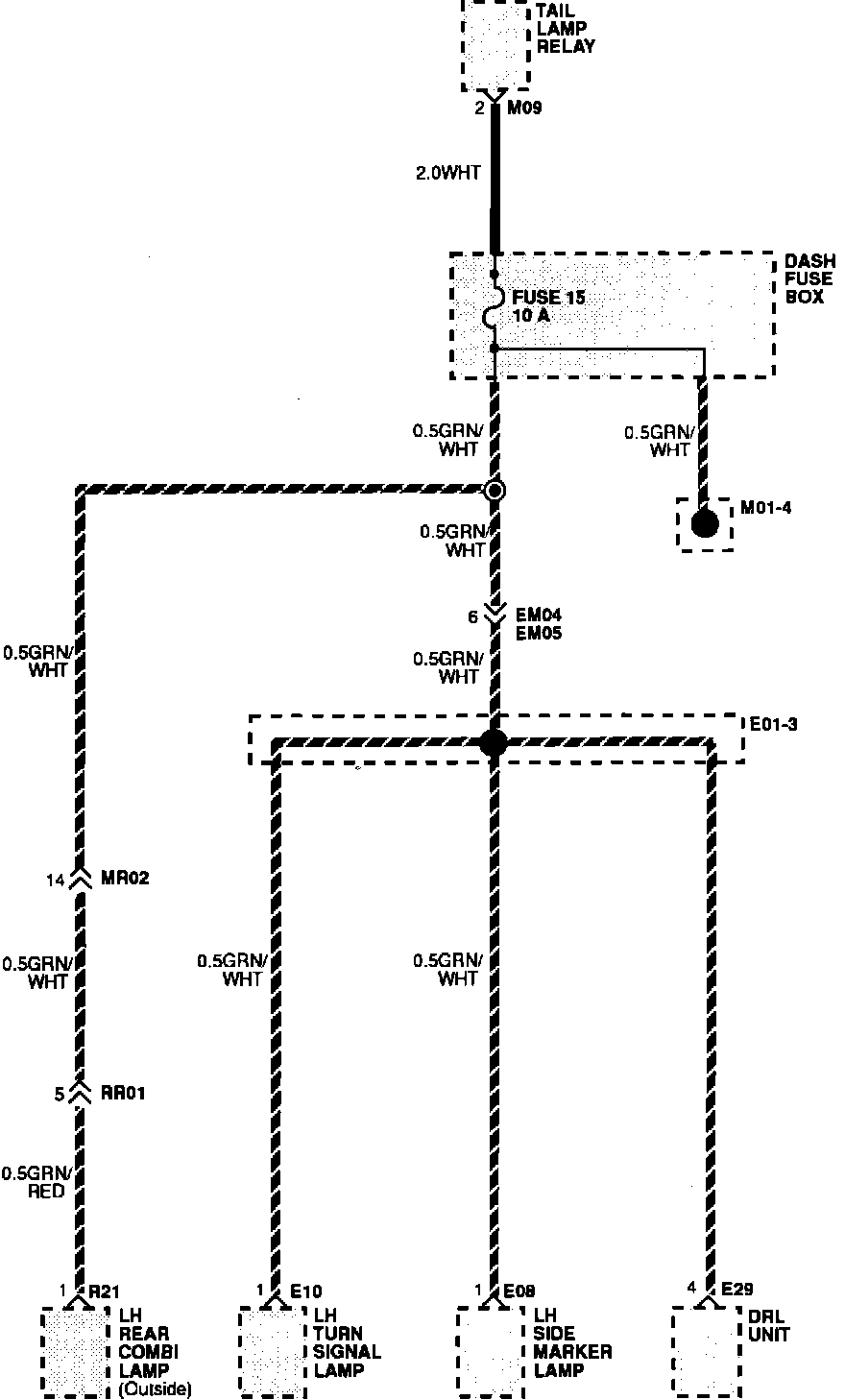

Joint Distribution. E01-3:
