Home >> Hyundai >> 1991 >> Scoupe L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> System Diagram >> Engine Management

Engine Management

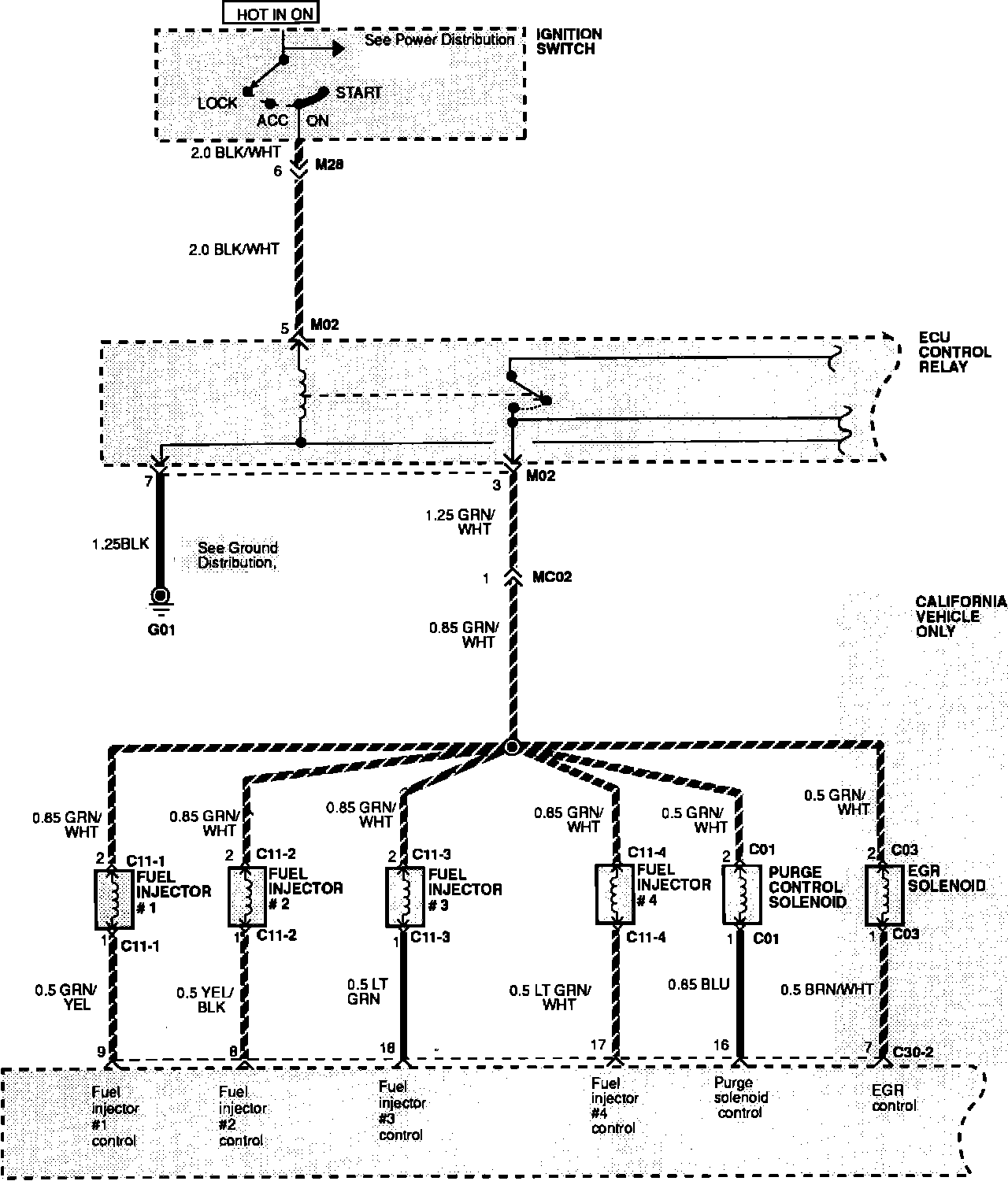

Multi-port Injection:

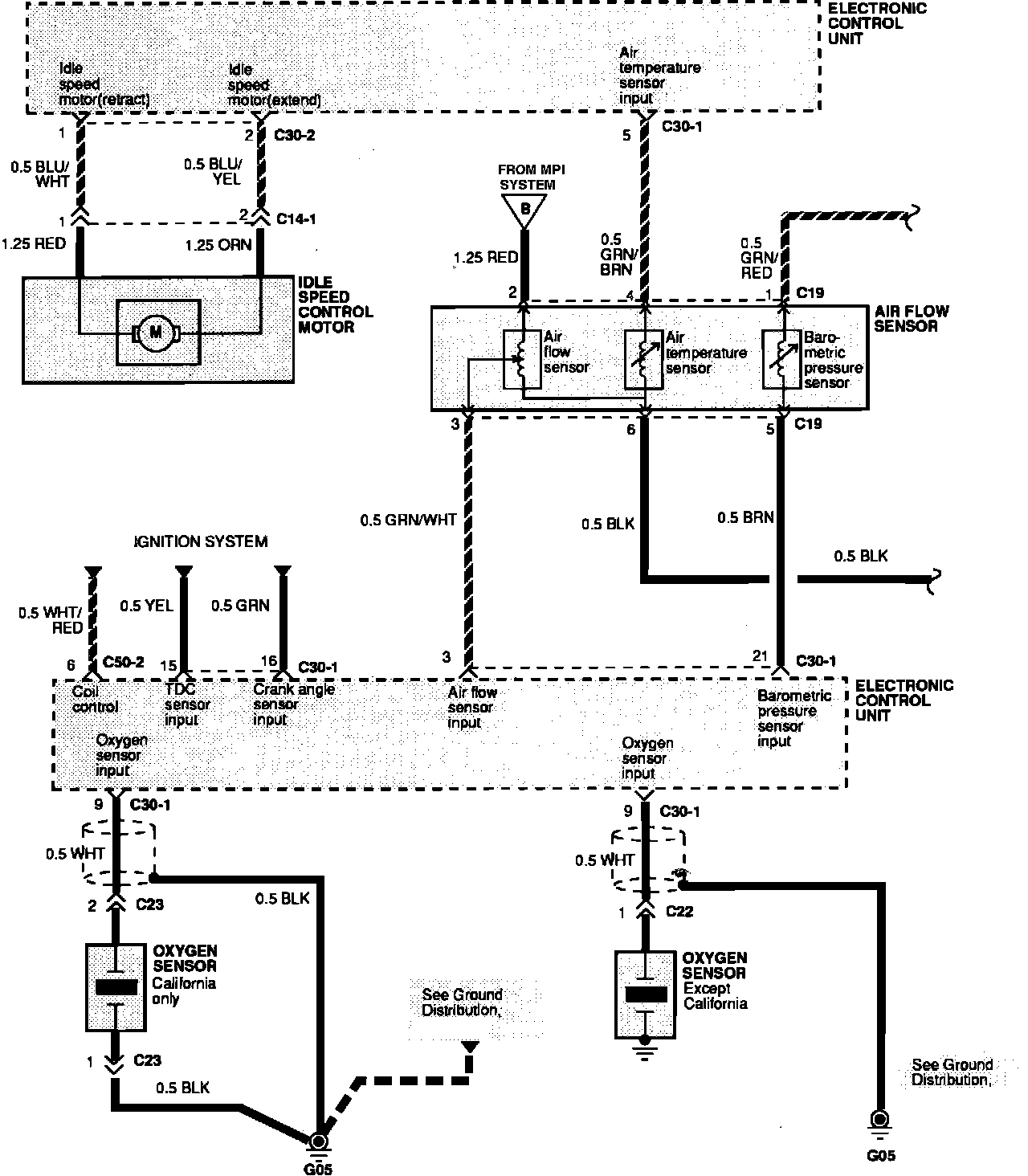

Multi-port Injection:

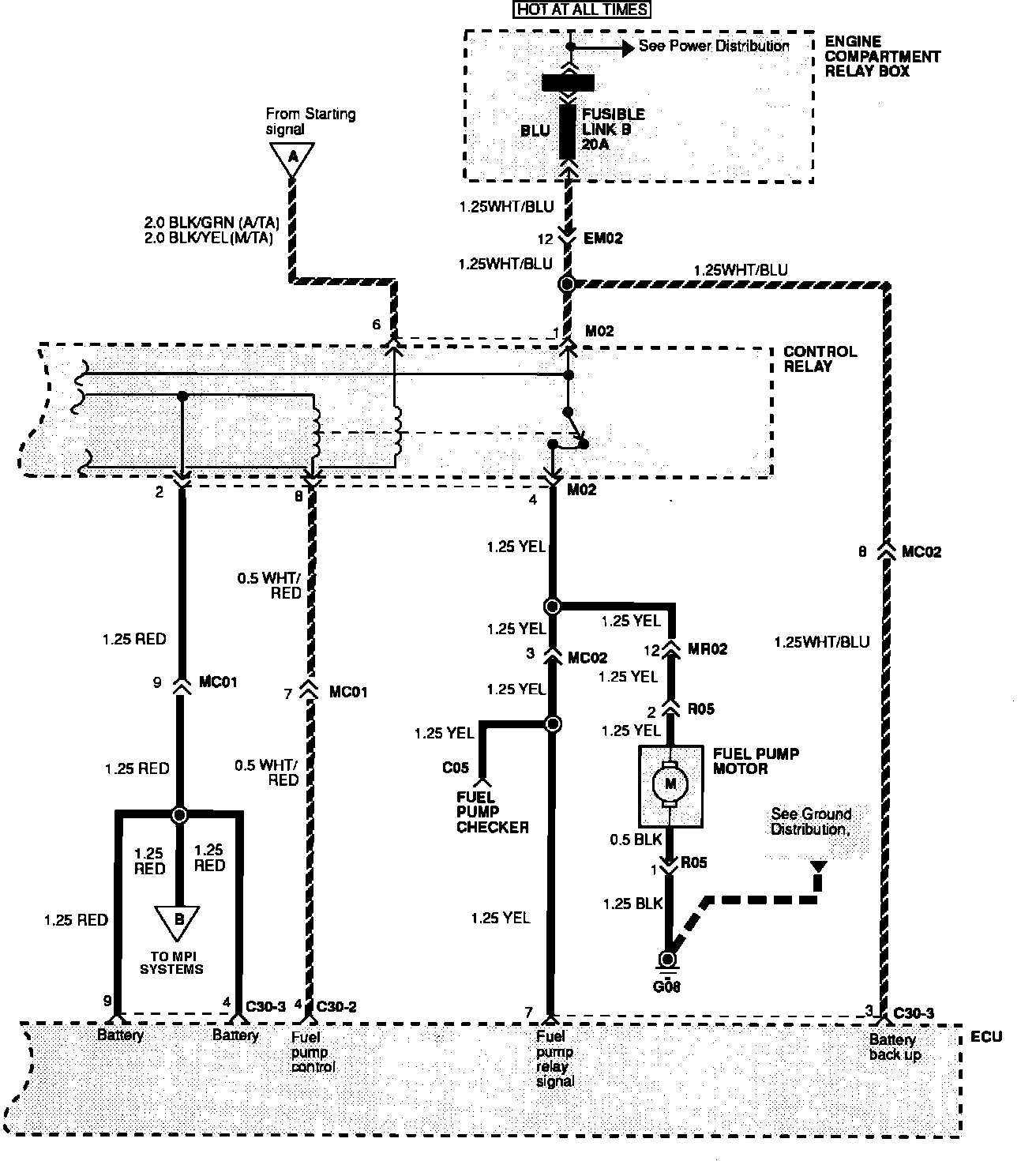

Multi-port Injection:

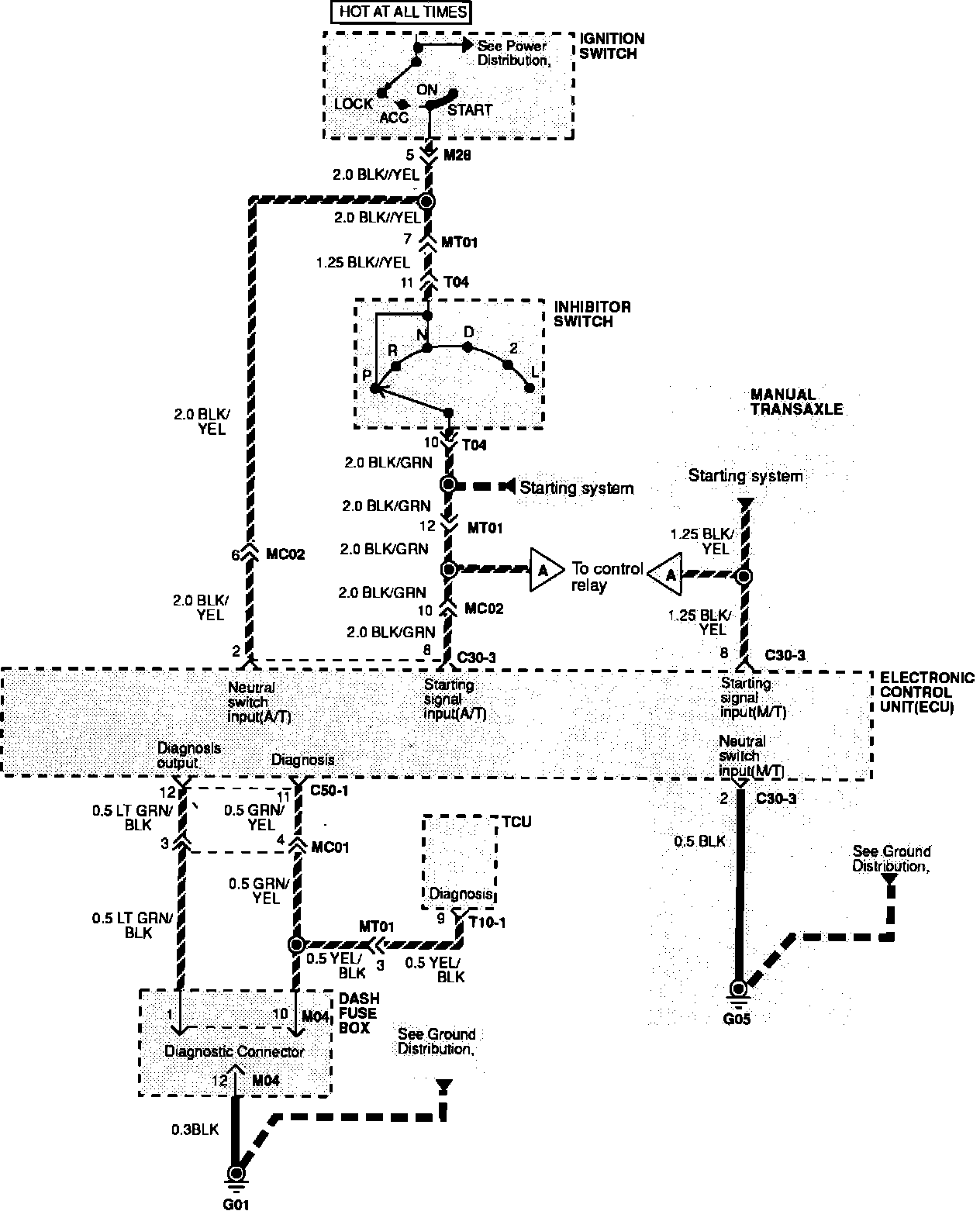

Multi-port Injection:



Multi-port Injection:
