Automatic Transaxle

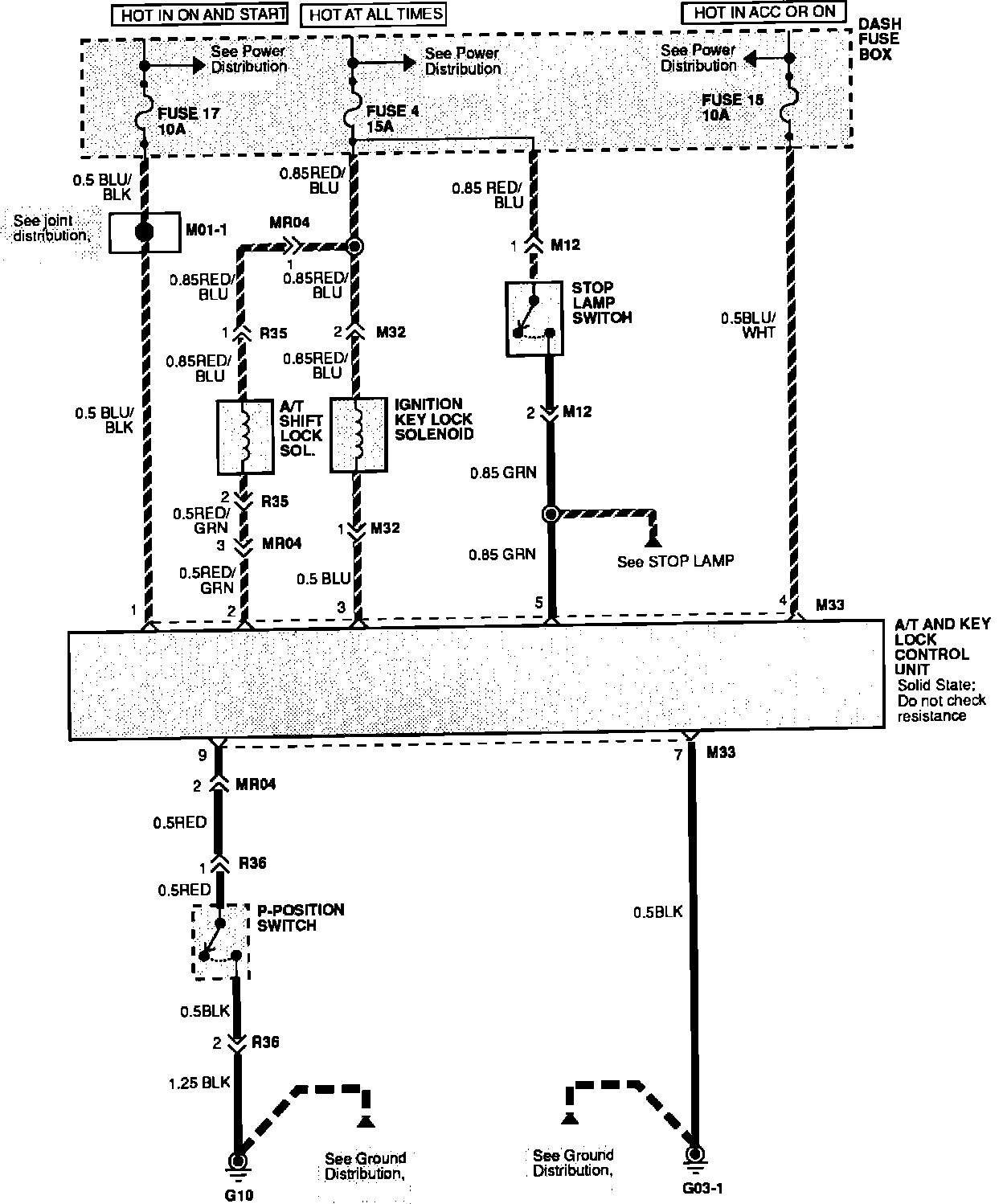

Automatic Transaxle And Key Lock Controls:



Automatic Trans Axle And Key Lock Controls:
