Wiring Diagram
Wiring Diagram

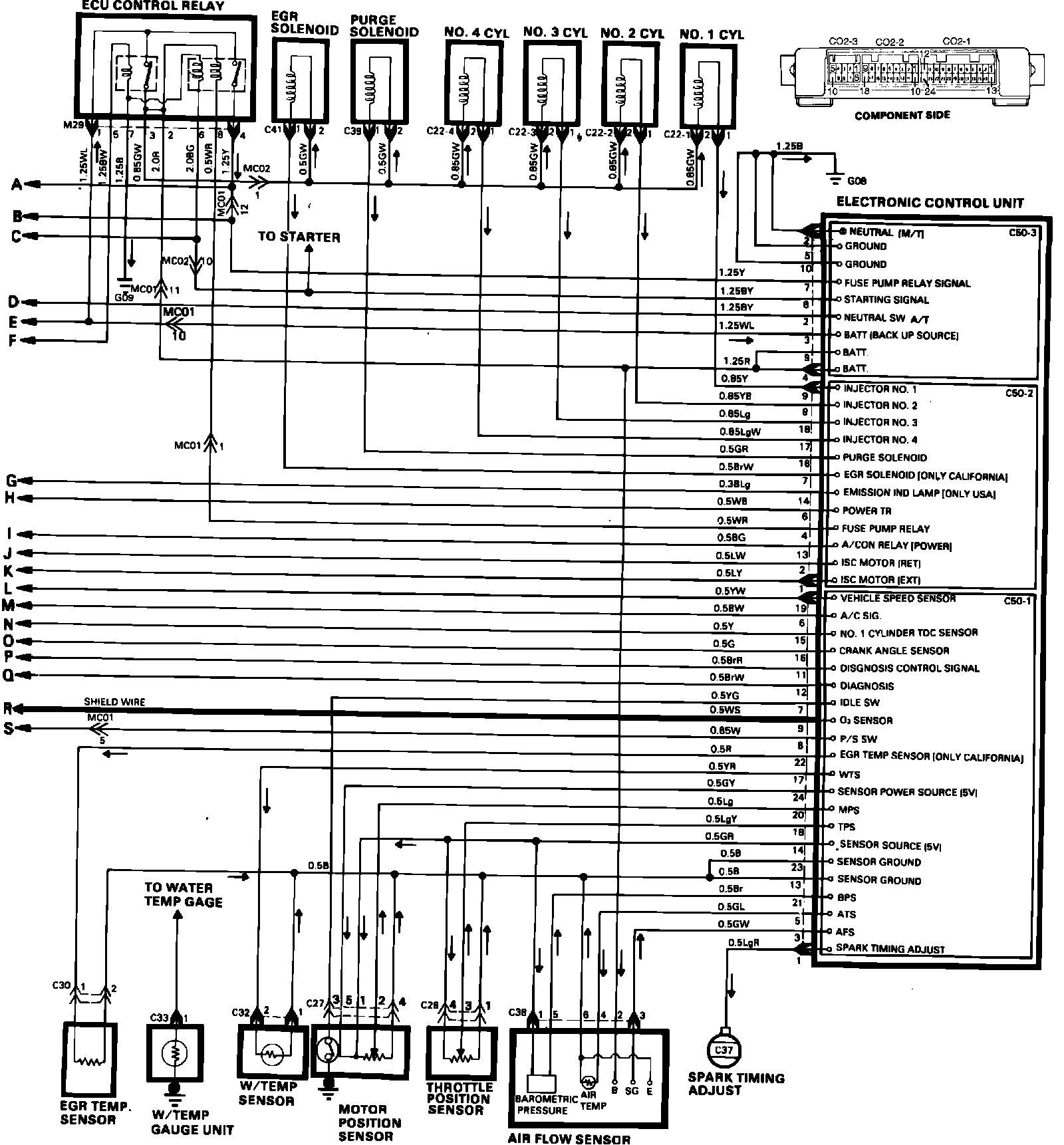

Fuel Injection Diagram (Part 1 Of 2):
Fuel Injection Diagram (Part 2 Of 2):
