Evaporator Core: Service and Repair

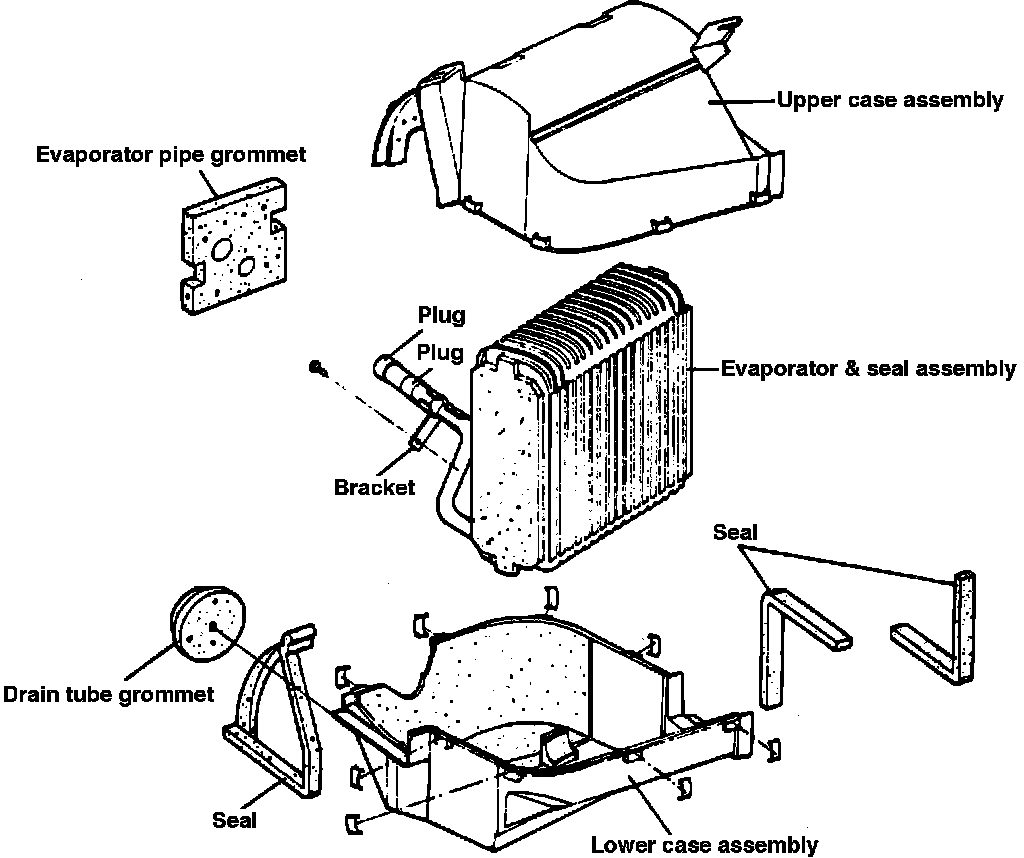

Fig. 9 Evaporator Case & Core Assembly:

1. Disconnect battery ground cable, then discharge refrigerant.
2. Using tube remover 09977-33600 or equivalent remove suction hose and liquid tube.
3. Remove grommet cover, console assembly and glove box assembly.
4. Remove main lower crash pad, lower crash pad center fascia panel and lower crash pad center skin.
5. Remove blower assembly, then evaporator assembly and evaporator, Fig. 9.
6. Reverse procedure to install.
