Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1991
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

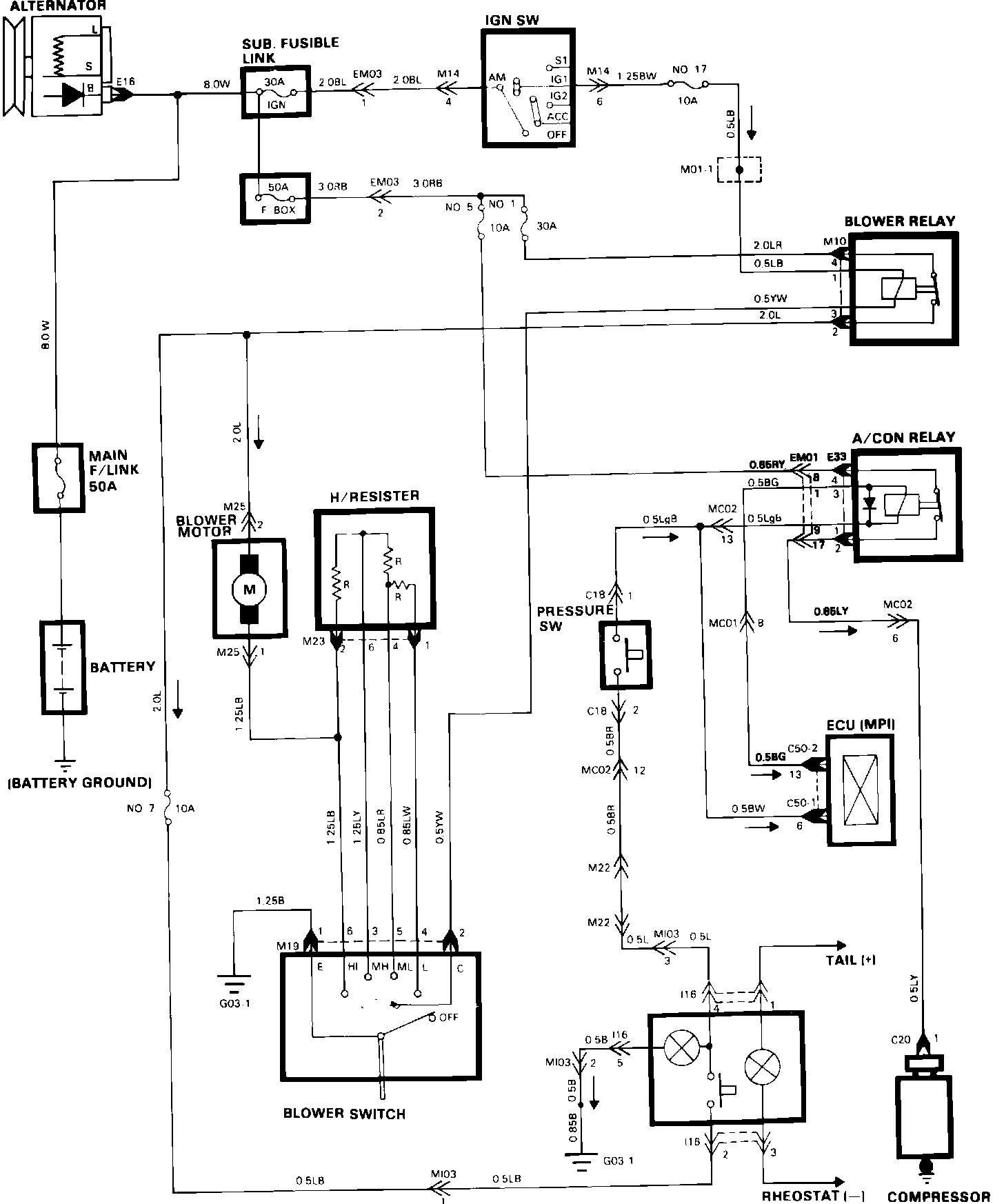

Air Conditioner (Wiring Diagram):
