Diagnostic Trouble Code Descriptions

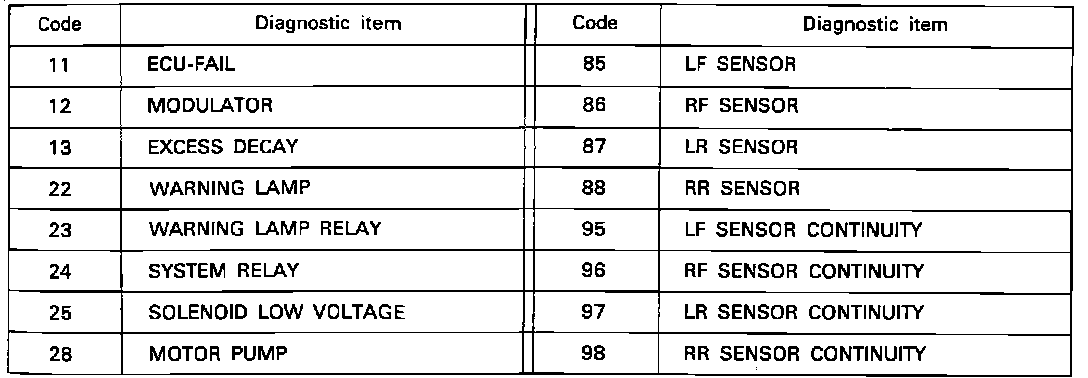

Fig. 2 Trouble Codes:

There are 16 trouble codes which can be read using the Multi-Use Tester (MUT), Fig. 2. If more than 1 fault occurs, they will be indicated sequentially from smallest code number. Trouble codes can only be erased using multi-use tester.
Refer to DIAGNOSTIC CHARTS for diagnostic trouble code, indication, system interaction and possible causes.
Refer to DIAGNOSTIC CHARTS for service data and actuation test.
