Timing Belt/Oil Pump Sprocket - Improved Design

91hyundai02

Group: Engine


Number: 027


Date: June, 1991


Model: Sonata 2.4


Subject

TIMING BELT AND OIL PUMP SPROCKET

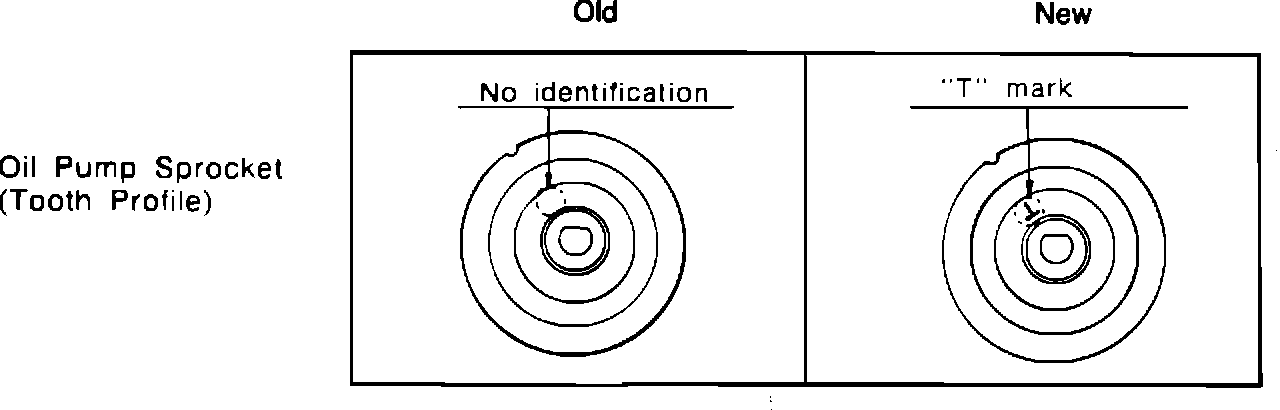

To reduce the noise generated by the engine, the timing belt material, tooth profile and oil pump sprocket tooth profile have been changed.

EFFECTIVE DATE: November 01, 1990


PARTS INFORMATION

Part Name Current New Model


Timing Belt 24312-32610 24312-32620 Sonata 2.4L


Oil Pump Sprocket 24351-32014 24351-32024 Sonata 2.4L





INTERCHANGEABILITY: Timing belt, Code A Oil Pump Sprocket, Code N (Code Y when replaced as a set)
