Rocker Cover - Revised Design to Improve Sealing

91hyundai03

Group ENGINE


Number 91-20-029


Date OCTOBER, 1991


Model SONATA 2.4L


Subject CHANGE OF ENGINE ROCKER COVER GASKET

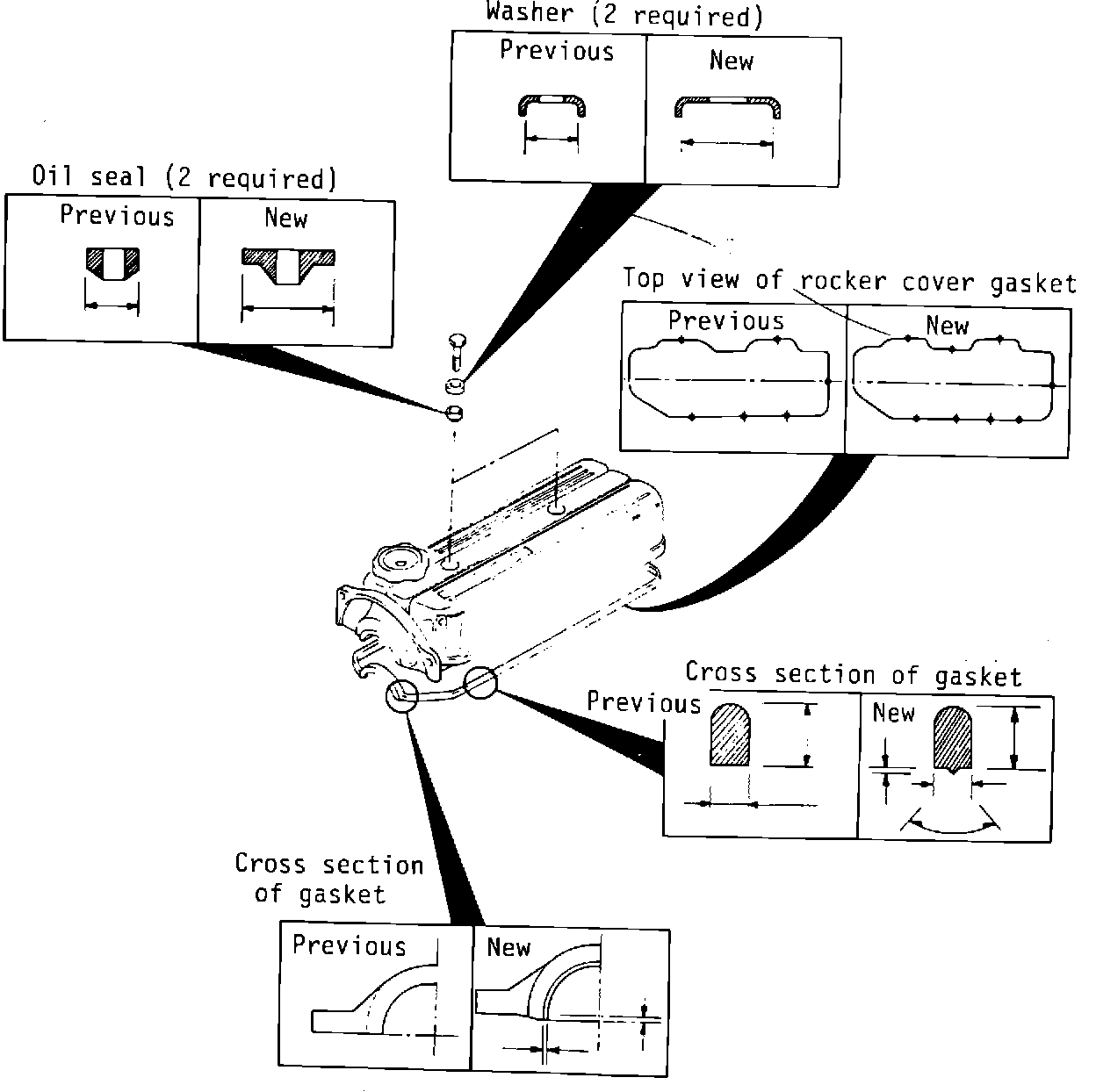

The rocker cover gasket, oil seal and washer have been changed to improve the oil seal of the engine rocker cover.


EFFECTIVE PRODUCTION CHANGE DATE: February 25, 1991


PARTS INFORMATION


Part Name Old New Qty. Model

Rocker Cover Gasket 22441-32000 22441-32001 1 Sonata 2.4L

Washer 22432-32500 22432-32501 2 Sonata 2.4L

Seal - oil 22433-11000 22433-32000 2 Sonata 2.4L


INTERCHANGEABILITY: Rocker Cover Gasket, Code Y
The new Washer and Oil Seal are interchangeable as a set
and should be used to replace the old style.

Note: The old style Washer and Oil Seal have been combined into an Oil Seal Kit, p/n 22433-32A00. The old style Washer will no longer be stocked individually.

TIGHTENING TORQUE OF ROCKER COVER BOLTS

PREVIOUS NEW

3.6 - 5.1 lb.ft. 4.3 - 5.9 lb.ft.
