Crankshaft Sprocket Bolt Torque - Correction

Group: ENGINE MECHANICAL

Number: 93-20-010

Date: MAY, 1993

Model: 89-91 SONATA 2.4L

Subject:

CRANKSHAFT SPROCKET BOLT TORQUE - SHOP MANUAL CORRECTION

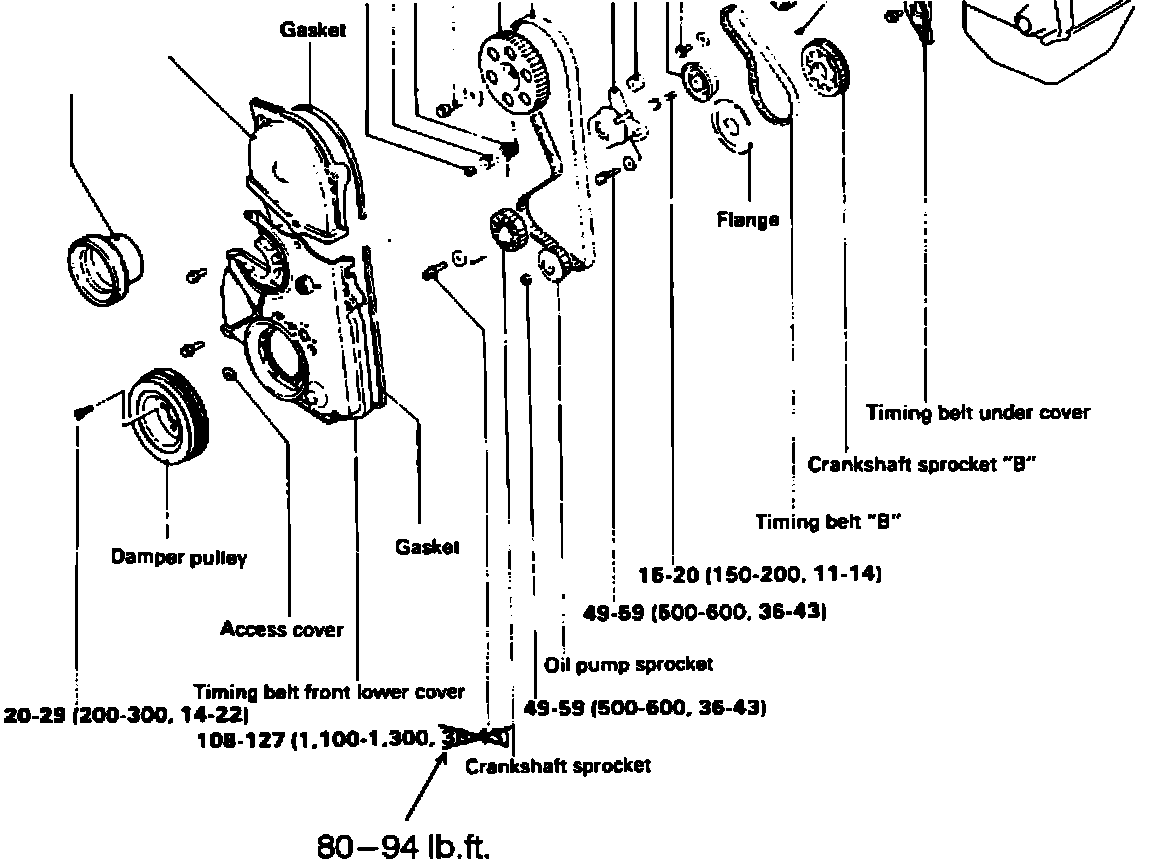

The crankshaft sprocket bolt torque (in lb.ft.) shown in the exploded diagram of the Sonata Shop Manual is incorrect. The correct torque is 80-94 lb.ft. Please make the correction shown to your shop manuals.

Affected shop manuals:

1989 Sonata Shop Manual p. 20-26

1990 Sonata Shop Manual p. 20-26

1991 Sonata Shop Manual p. 20-26
